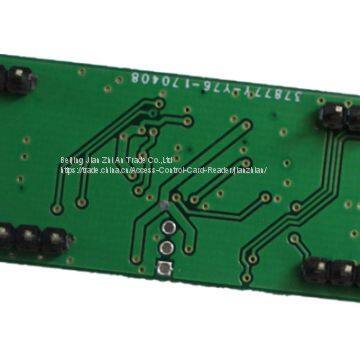

YST304 series are RFID reader/writer module which pick or send command by UART and IIC ports. YST304 series meet kinds of international contactless IC card standards. Also YST304 series can support kinds of cards from suppliers. YST304 series RF antenna is separated from the module. The module is connected to the antenna by the 50ohm cable. It is with flexible antenna size and layout. The RFID module can be very good at reading/writing and very stable for impedance analyzer adjusting between RF circuit and antenna.
Characters:
The module is connected to the antenna by the 50ohm cable. It is with flexible antenna size and layout.
Qualifications
Where it can be used: bus, access control system, bank, water meter, etc.
PCD: NXP CV520
Working frequency: 13.56MHz
RF standard: ISO14443A
Cable to antenna: 60cm, can be custom-made, 0.1-1.5mm
Operating distance: 80 mm (depending on card and antenna design)
Anti collision ability: Full functions anti collision; be able to process multi-card simultaneously; be able to set operate single card only.
Auto detecting card: yes, default OFF
Interface: IIC &UART (selected by SPS pin, IIC is better)
Communication rate: IIC 400Kbps, UART 19.2Kbps/115.2Kbps
Max command length: 128 Bytes
Interface level: 3.3V (TTL level; 5V tolerance)
Power consumption: 50mA
Dimension: 42mm*21mm*8mm
Package: DIP32
Weight about:15g
Operating temperature: -25～+85℃(-77～+185℉)
Storage temperature: -40～+125℃(-104～+257℉)
ISP: Yes
Module |
YST304 |
RF base station |
CV520 |
Interface |
USB, RS232 |
RF standard |
ISO14443A, Mifare |
Reading distance |
80mm |
PICC |
|
