Help CenterTWLL Series Pellet Screw Feeder
Related Products
-
TWLL Series Pellet Hopper Micro Screw FeederUS$ 1 - 9,999MOQ: 1 Set -
2013 Hot Sale! TDTG Series Small Bucket Elevator PartsUS$ 1 - 9,999MOQ: 1 Set
-
CE/TUV/ISO/GOST/SGS Certificated Belt ConveyorUS$ 99 - 99,999MOQ: 1 Set
-
CE/TUV/ISO/GOST/SGS Certificated Drag ConveyorUS$ 99 - 99,999MOQ: 1 Set
-
CE/ISO Certificated TLSS Series Screw ConveyorUS$ 99 - 99,999MOQ: 1 Set
Specifications
Screw feeder1.One year warranty
2.ISO9001:2000,CE,GOST,SGS
3.High output with CPM advanced technology
4.Reliable supplie

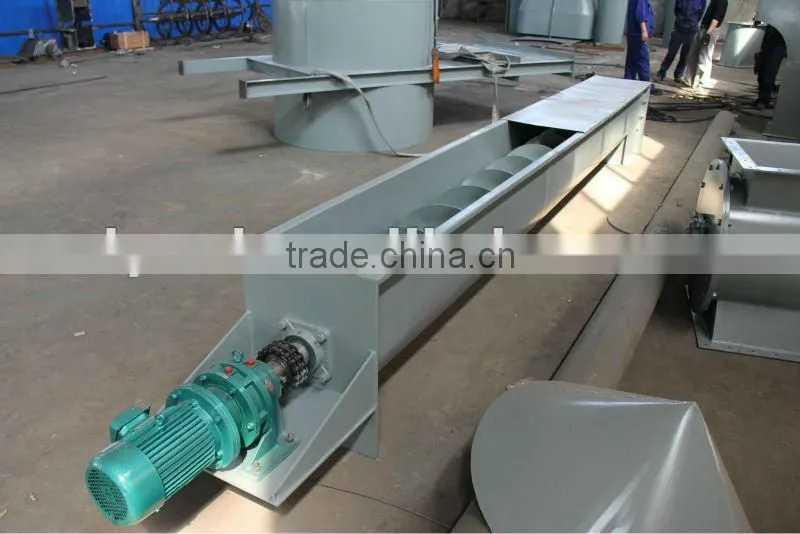

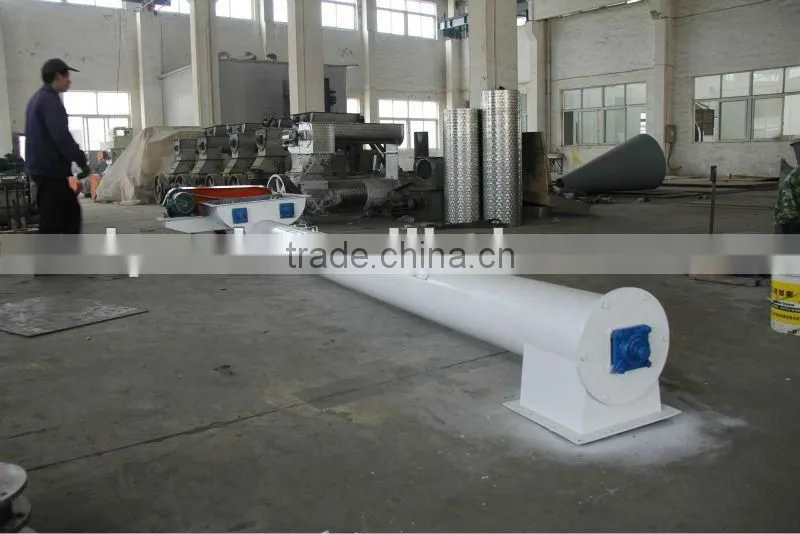

TWLL series Screw Feeder
1. One year warranty
2. CE certificated
3. High efficiency
4. Chain/belt conveyor1. CE and GOST certificated
5. Easy installation
Application Scope and Features
1. TWLL,TWLLy series screw feeder is the fixed conveying equipment. It is widely used for the horizontal conveying of the pellet or powder materials like grain, oil etc. as well as slanting conveying (angle≤20°).
2. TWLL, TWLLy series screw feeder is not fit for the conveying of corrosive, lumpy, glutinous , rough materials like corn, rice ,etc. It can not work under -20°C or above 50°C.
3. This conveyor adopts chain drive. Direct drive can also be adopted. Frequency converting motor can be adopted. It has the features of simple structure, good stableness, good sealing , easy maintenance, accurate feeding, etc.
Main Technical parameters
Model |
Screw Dia. (mm) |
Inner Machine Dia. (mm) |
Gap between blade and inner wall (mm) |
Max. Speed Recommended (rpm) |
Capacity(t/h) |
TWLL12 |
φ120 |
φ130 |
5 |
135 |
2~10 |
TWLL16 |
φ160 |
φ170 |
5 |
135 |
6~15 |
TWLL20 |
φ200 |
φ210 |
5 |
135 |
10~25 |
TWLL25 |
φ250 |
φ260 |
5 |
130 |
12~40 |
TWLL32 |
φ320 |
φ332 |
6 |
115 |
20~50 |
TWLL40 |
φ400 |
φ414 |
7 |
100 |
40~80 |
We are specialized in designing and manufacturing poultry feed,aquatic feed pellet machinery,biomass pellet machinery and the complete production line(all auxiliary equipment) with CPM advanced technology.
Widely used in chemical, cement, pharmacy, iron & steel , food industry and so on.
- Customized desighed and installation
- Carbon steel ,stainless steel 304/316
Company introduce
Liyang City Rongda feed Equipment Co., Ltd., was established in January 2005, is located in the superiorinvestment environment in Tai Tau Industrial Area,covering over 25,000 m2, building area of more than 13,000 square meters, office building covers an area of?more than 500 square meters.
The Rongda company is the one for many yearsspecialized in biomass.....
Why buy from us?
1.Highest quality and most competitive price----we are the only one manufacture who adopts import raw materials. Low bad rates, is just 0.1%. It is amazing, and with cheap price and guaranteed quality.
2.Delivery fast -----Goods be sent out within 15 to30 days based on order quantity.
3.Professional-----We are special in source and sells, as development, methods, conjugations, and handling.
4.Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
