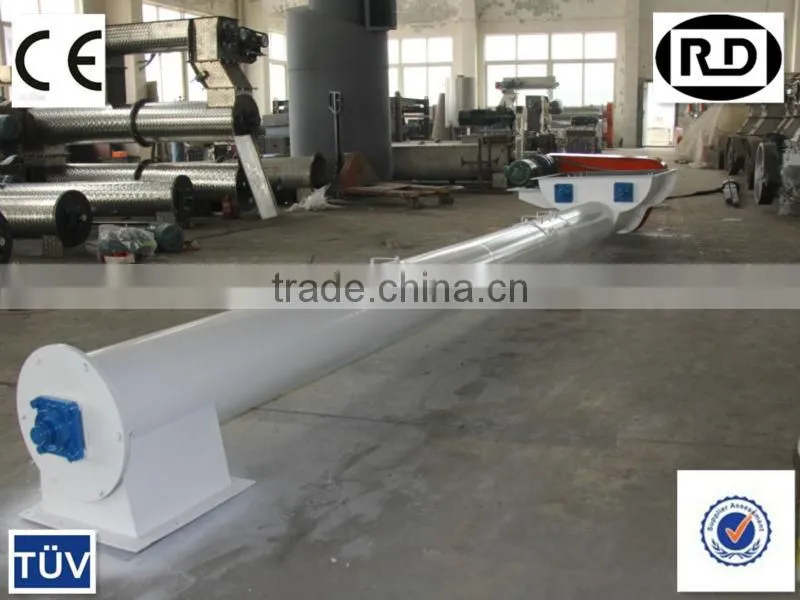

Help CenterCE/ISO Certificated TLSS Series Screw Conveyor
Related Products
-
TGSU Series Self Cleaning Chain ConveyorUS$ 1 - 99,999MOQ: 1 Set -
TFPX Series Rotary Distributor With CE/GOST CertificateUS$ 1 - 999,999MOQ: 1 Set
-
TFPX Series Automatic Animal Feed Distributor With CE/GOST CertificateUS$ 1 - 99,999MOQ: 1 Set
-
TFPX Series Animal/poultry/livestock/aquatic Feed Rotary Distributor With CE/GOST CertificateUS$ 1 - 99,999MOQ: 1 Set
-
Hot Sale!CE Certificate! Real Manufacturer! TWLL Series High Quality Feed Screw ConveyorUS$ 1 - 99,999MOQ: 1 Set
Usage:
TLSS series horizontal screw conveyor can be applied to convey the powder and pellets like grain,
oil, feed, etc horizontally or with small slope less than 20°. The conveying length is no more than 40m.
Application Range:
TLSS series horizontal conveyor is not applicable for the conveying of the corrosive, lumpy, rough, big
or easily broken impurities. It can not be used under -20°C or above 50°C.
TLSS series screw conveyor features:
1) Simple, compact and scientific structure
2) The middle hanging bearing adopts lubricated bearing on the machine tools.
3) The end shaft is sealed tightly.
4) Two screws with opposite direction can be installed on the same shaft so as to realize two-way convey.
5) The screw conveyor can be installed horizontally, vertically or aslope.
Technical Data List
Model |
Screw Dia. |
Net Wid. |
Gap between blade and inner wall |
Recommended Max. Speed r/m |
Size |
|
W |
H |
|||||
TlSS10 |
100 |
120 |
10 |
140 |
190 |
227 |
TlSS12 |
120 |
140 |
10 |
140 |
210 |
272 |
TlSS16 |
160 |
180 |
10 |
140 |
260 |
342 |
TlSS20 |
200 |
220 |
10 |
140 |
300 |
422 |
TlSS25 |
250 |
270 |
10 |
130 |
360 |
502 |
TLSS32 |
320 |
340 |
10 |
110 |
435 |
612 |
TLSS40 |
400 |
420 |
10 |
100 |
525 |
762 |
TLSS50 |
500 |
520 |
10 |
90 |
625 |
942 |
Li Yang RongDa Feed Equipment Co.,Ltd was established in 2005, located in Daitou Industrial Park
of Liyang City and covers an area of 25,000 square meters.
RongDa is a company that major in biomass shaping equipment, feed equipment, combined fertilizer
equipment, pasturage equipment, feed production line, as well as we can do design, development,
fabrication, installation and training of the machinery & engineering of the above industries.
RD has products including feed pellet mill, biomass pellet mill, biomass drier, grinding equipment,
mixing equipment, cooling and screener equipment, cleaning equipment, conveyor, bucket elevator,
etc. Feed and biomass complete production line, turn-key project.
During the passed years, RondDa has exported different equipment and turn-key projects to over 80 countries to over 30 countries including Vietnam, Pakistan, Philippines, I
ndonesia, Thailand, Ukraine, Egypt, Russian, Mexico, Singapore, Holland, and etc. And we have
many agents in different countries.
Now all our RongDa products have been CE certificated to Europe, GOST to Russia, and our company
approved ISO9001 certificate of the system of quality certification.
Adhering to the principle of "Quality first, Service first, Price reasonable", the aim of “Long-term development”, we got support and trust from many customers depending on our superb techniques, reliable quality and perfect after-sales service.
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 20 years of experience in this industry.
2. Q: How can I get to your company?
A: You can get a flight to Nanjing Lukou Airport. We are just about 40-50mins away from Nanjing Airport.
You may also come to our city,Liyang city by High speed Railway,just 20-30mins from Nanjing city.
3. Q: How long is your guarantee?
A: One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You
will be welcome to contact us with any problem may happened.
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send
one supervising engineer.
5. Q: Do you have some foreign customers using your equipment?
A: yes, we have.our company has established business relationships with customers in Russia,German,Slovakia,Ukraine,
Vietnam,Pakistan, the Philippines, Indonesia, Thailand, Pakistan, Egypt ,Iraq, Iran,Jordan,Saudi Arabia,Syria, Libya etc.
