Specifications
mini jaw crusher:1.High crushing ratio
2.Easy operation
3.Convenient maintenance
4.Firm structure

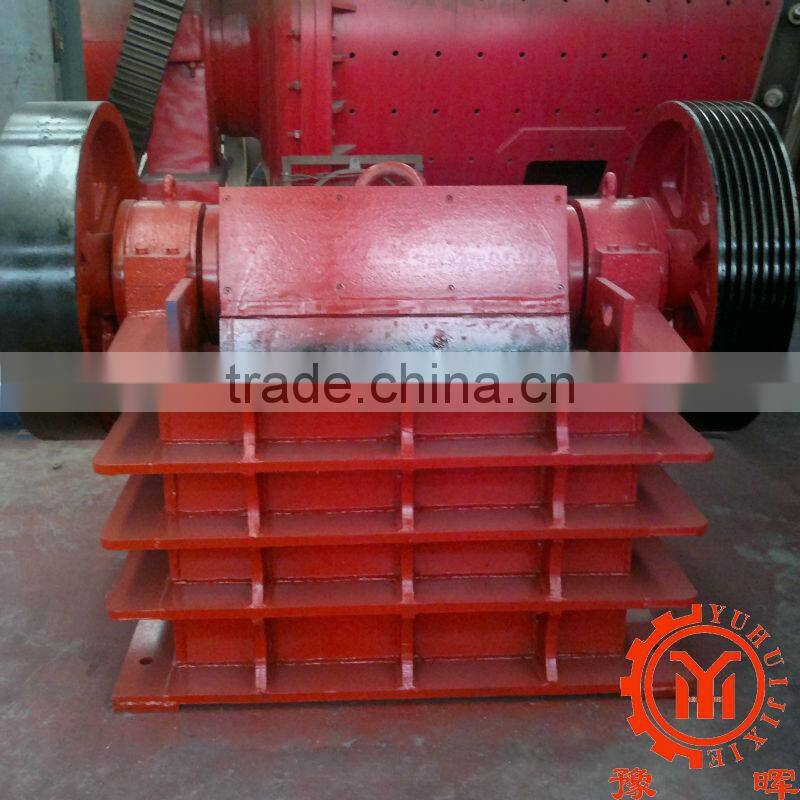

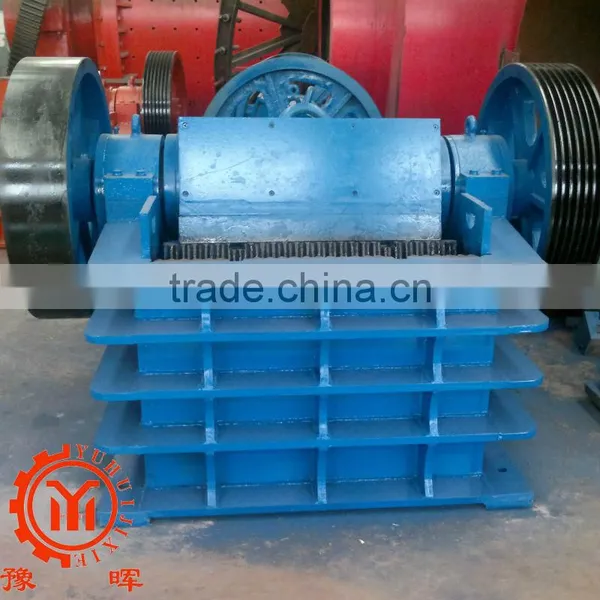

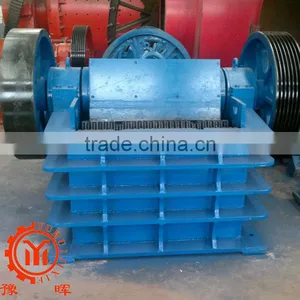

Industrial equal product granularity mini jaw crusher manufacturer
Features of mini PE series jaw crusher:
PE series jaw crusher has big reduction ratio, equal product granularity, low power consumption and convenient maintenance. It is perfect equipment for crushing ores and rocks in medium and small mine, metallurgy, building materials, chemical industry
Working principle of mini jaw crusher:
Motor drives belt and belt pulley, makes moving jaw up and down through eccentric shaft. When the moving jaw is up, the angle between lining plate and moving jaw becomes large, and this will push moving jaw plate close to the fixed jaw plate. During this process, the material is crushed and ground, thus the crushing will be done. When the moving jaw is down, the angle between lining plate and moving jaw becomes small, the moving jaw plate will leave the fixed jaw plate on account of the effect of pulling bar and spring
Technical Parameter of mini Jaw Crusher:
Specification |
Size of Feed Opening (mm) |
Max. Feeding Size (mm) |
Adjustable Size of Discharge Opening (mm) |
Capacity (t/h) |
Motor Power Pole |
Power (kw) |
Dimension |
Weight |
PE-150×250 |
150×250 |
125 |
10-40 |
1-3 |
4 |
5.5 |
670×820×760 |
0.81 |
PE-150×750 |
150×750 |
125 |
10-40 |
5-16 |
4 |
15 |
1050×1490×1055 |
3.8 |
PE-250×400 |
250×400 |
210 |
20-60 |
5-20 |
4 |
15 |
1160×1300×1240 |
2.8 |
PE-400×600 |
400×600 |
350 |
40-100 |
16-65 |
6 |
30 |
1480×1710×1646 |
7 |
PE-500×750 |
500×750 |
425 |
50-100 |
45-100 |
6 |
55 |
1800×1796×1940 |
12 |
PE-600×900 |
600×900 |
500 |
65-160 |
60-160 |
6 |
75 |
2235×2210×2380 |
17 |
PE-750×1060 |
750×1060 |
630 |
80-140 |
90-320 |
8 |
110 |
2430×2302×3110 |
29 |
PE-800×1060 |
300×1300 |
640 |
80-200 |
110-350 |
8 |
130 |
2530×2310×3110 |
30 |
PE-900×1200 |
900×1200 |
750 |
95-165 |
140-450 |
8 |
130 |
3789×2826×3025 |
50 |
PE-1000×1200 |
1000×1200 |
850 |
110-235 |
160-550 |
8 |
160 |
3889×2826×3025 |
57 |
PE-1200×1500 |
1200×1500 |
1020 |
150-300 |
400-800 |
8 |
120 |
4590×3342×3553 |
100.9 |
PEX-250×750 |
250×750 |
210 |
25-60 |
15-30 |
6 |
22 |
1750×1500×1420 |
5 |
PEX-250×1000 |
250×1000 |
210 |
25-60 |
16-52 |
6 |
30 |
1940×1650×1450 |
7 |
PEX-250×1200 |
250×1200 |
210 |
25-60 |
20-65 |
6 |
37 |
1940×1850×1450 |
7.7 |
PEX-300×1300 |
300×1300 |
250 |
25-100 |
20-90 |
6 |
55 |
2285×2000×1720 |
11 |
...
