Specifications
high efficient 750*1060 mining jaw crusher with ISO1.easy maintenance
2.even final particles
3.high crushing ratio

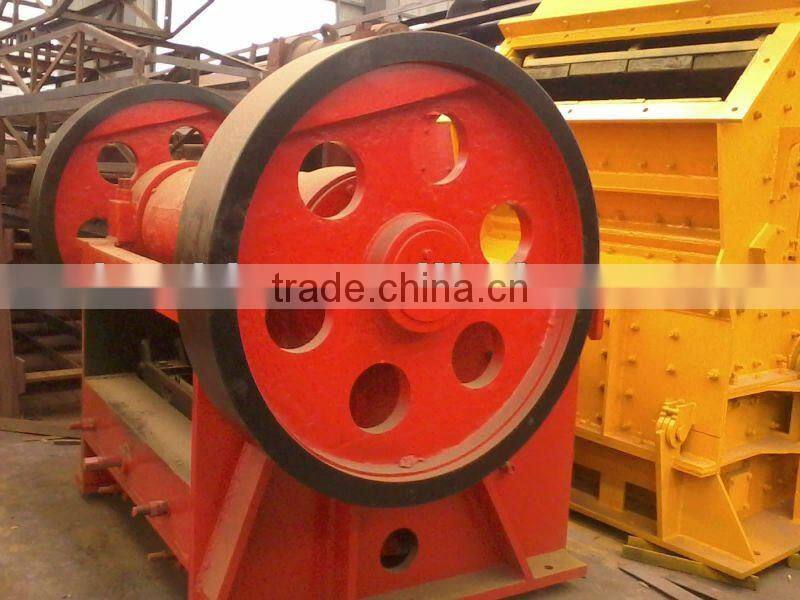

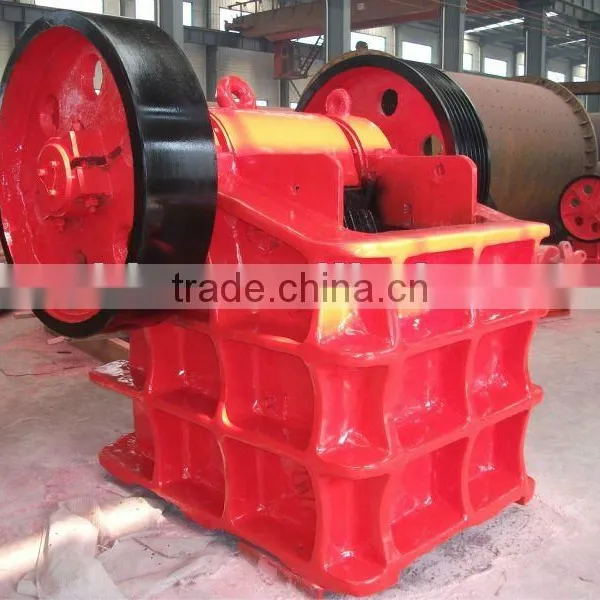

high efficient 750*1060 mining jaw crusher with ISO
Specifications
Stone jaw crusher,quarry crusher,crushing machine
1)Firm structure
2)Stable performance
3)Large capacity
4)Easy adjustment
Jaw Crusher Application
Jaw Crusher is mainly used to crush kinds of mining stone primarily, and the largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical industry.
Jaw Crusher Working Principle
Primary jaw crusher is typically of the square opening design, and secondary jaw crusher is of the rectangular opening design. Jaw Crusher reduces large size rocks or ore by placing the rock into compression. A fixed jaw board, mounted in a "V" alignment is the stationary breaking surface, while the movable jaw exerts force on the rock by forcing it against the stationary plate. The space at the bottom of the "V" aligned jaw plates decide the crusher product size gap, or the size of the crushed product from the jaw crusher. The rock remains in the jaw until it is small enough to pass through the gap at the bottom of the jaws.
Jaw Crusher Technical Parameters
Model | Feed Opening | Max. Feed Size | Capacity | Power Consumption | Discharge Opening | Overall Dimension |
PE-150×250 | 150×250 | 125 | 1-5 | 5.5 | 10-40 | 758×758×794 |
PE-250×400 | 250×400 | 210 | 5-20 | 15 | 20-60 | 1500×1400×900 |
PE-400×600 | 400×600 | 340 | 16-65 | 30 | 40-100 | 1700×1800×1600 |
PE-500×750 | 500×750 | 425 | 50-100 | 55 | 50-100 | 1890×1940×1870 |
PE-600×900 | 600×900 | 500 | 50-120 | 55 | 65-160 | 2395×1843×2230 |
PE-750 ×1060 | 750×1060 | 630 | 52-180 | 110 | 80-140 | 2775×2426×2840 |
PE-800×1060 | 800×1060 | 640 | 136-230 | 110 | 100-200 | 2500×2472×2810 |
PE-900×1200 | 900×1200 | 750 | 140-260 | 110 | 95-165 | 3400×3200×3500 |
PE-1000×1200 | 1000×1200 | 850 | 315-342 | 110 | 195-265 | 3335×3182×3430 |
PE-1200×1500 | 1200×1500 | 1020 | 400-800 | 160 | 150-300 | 4200×3732×4620 |
PE-250 ×750 | 250×750 | 210 | 15-30 | 22 | 15-70 | 1400×1300×1350 |
PE-250×1000 | 250×1000 | 210 | 16-52 | 30 | 25-60 | 1600×2000×1500 |
PE-250 ×1200 | 250×1200 | 210 | 20-60 | 37 | 25-60 | 1900×2200×1500 |
PE-300×1300 | 300×1300 | 260 | 30-70 | 55 | 30-90 | 1800×2300×1700 |
Henan Yuhui Mining Machinery Co., Ltd. is a enterprise that mainly produces large and medium sized beneficiation gravel equipment, crushers, sand making machines and Raymond ball mills. The leading products include the whole set of mine-selecting equipment and sandstone equipment, such as ball mills, crushers, magnetic separators, flotation machines, classifiers, driers, sand-makers, oscillating screens, sand washers and conveyors.Our products are sold all over the world such as Indonesia, Pakistan Saudi Arabia, India, Russia, Vietnam, Iran…we have earned a worldwide fame.
...
