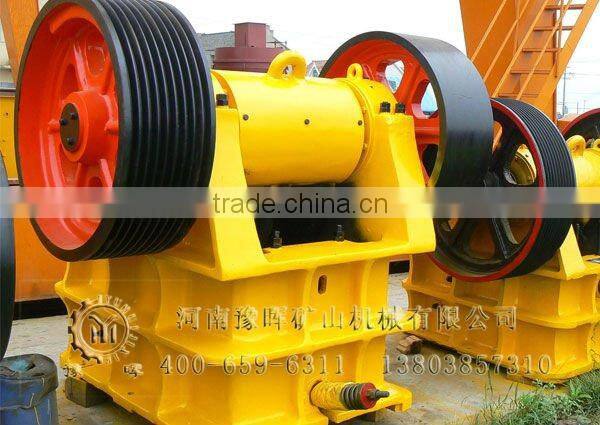

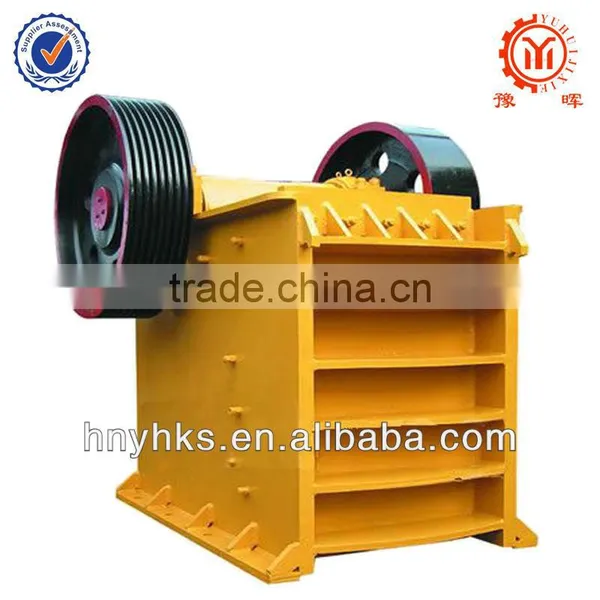

High efficiency PE jaw crusher
(1) Jaw Crusher:
Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material is 320MPa. The jaw crusher is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical industry.
(2) Working Principle of Jaw Crusher:
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
(3) Characteristics of Jaw Crusher:
♦High ratio of crushing
♦Even final product size
♦Simple structure
♦Reliable working condition
♦Easy maintenance
♦Low operating cost
(4) Technical Data of Jaw Crusher:
Model |
Max. Feeding Size (mm) |
Discharge Size (mm) |
Capacity (t/h) |
Motor Power (kW) |
Overall Dimensions (mm) |
Weight (t) |
PE150×250 |
125 |
10-40 |
1-3 |
5.5 |
896×745×935 |
0.8 |
PE250×400 |
200 |
20-60 |
5-20 |
15 |
1150×1275×1240 |
2.8 |
PE400×600 |
350 |
40-100 |
15-60 |
30 |
1700×1732×1653 |
6.5 |
PE500×750 |
425 |
50-100 |
50-100 |
55 |
2035×1921×2000 |
10.3 |
PE600×900 |
480 |
65-160 |
60-130 |
75 |
2290×2206×2370 |
16.5 |
PE750×1060 |
630 |
80-140 |
80-180 |
110 |
2620×2302×3110 |
29 |
PE900×1200 |
750 |
95-165 |
140-260 |
110 |
3789×2826×3025 |
54.5 |
PE1000×1200 |
850 |
195-265 |
315-550 |
110 |
3335×3182×3025 |
57 |
PE1200×1500 |
1020 |
150-300 |
400-800 |
160-220 |
4200×3750×3820 |
100.9 |
PEX250×750 |
210 |
25-60 |
10-40 |
22 |
1667×1545×1020 |
5 |
PEX250×1000 |
210 |
25-60 |
15-50 |
30 |
1550×1964×1380 |
6.5 |
PEX250×1200 |
210 |
25-60 |
20-60 |
37 |
1560×2104×1415 |
7.7 |
