superior quality PE150*250 lab jaw crusher

Specifications

lab jaw crusher
1.ISO9001:2000
2.plate made of manganese steel
3.high performance
4.equal granularity

superior quality PE150*250lab jaw crusher







I. Jaw crusher's Description:

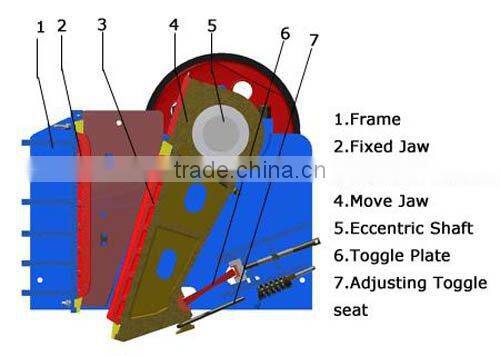

Our jaw crusher is ideally suitable for primary and secondary crushing with low power consumption and easy maintenance. Every feature of jaw crusher has been carefully designed to provide superior quality and performance. This jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track.





II. Jaw crusher's Application:

Jaw Crusher has been widely applied in mining, metallurgical, construction, road and railway building, water conservancy and chemistry etc. Jaw crusher can be as carborundum crusher, zircon crusher, gold ore crusher, quartz crusher, granite crusher, barite crusher, marble crusher, limestone crusher, kaolin crusher, talc crusher, coal crusher, gypsum crusher, blast furnace slag crusher, porcelain crusher, glass crusher, ballast crusher, etc.



III. Jaw crusher's Advantages:
 1) High productivity;

 2) Short toggle;
 3) Easy replacement of wear and spare parts;

 4) Sharp nip angle;
 5) Long life  span;

 6) Cost effective;
 7) Easy operation;

 8) Simply maintenance;

 9) Over-loading protection;

 10) Wide range of choices;



IV. Jaw crusher's Technical Datas:

Model	Feed Opening (mm*mm)	Max. Feed Size (mm)	Capacity (t/h)	Rotor Speed (rpm)	Motor Power (kW)	Discharge Opening (mm)	Weight (t)
PE-250*400	250*400	210	5-20	300	15	20-60	2.8
PE-400*600	400*600	340	16-65	275	30	40-100	6.5
PE-500*750	500*750	425	45-100	275	55	50-100	10.1
PE-600*900	600*900	500	50-120	250	55-75	65-160	15.5
PE-750*1060	750*1060	630	52-180	250	110	80-140	28
PE-800*1060	800*1060	650	85-143	250	110	100-200	30
PE-870*1060	870*1060	670	181-210	250	110	200-260	30.5
PE-900*1200	900*1200	750	140-260	200	110	95-165	50
PE-1000*1200	1000*1200	850	160-300	200	110	195-265	51
PE-1200*1500	1200*1500	1020	300-600	180	160	150-300	100.9
PEX-250*750	250*750	210	8-22	330	22	25-60	4.9
PEX-250*1000	250*1000	210	16-52	330	30-37	25-60	6.5
PEX-250*1200	250*1200	210	20-60	330	37	25-60	7.7
PEX-300*1300	300*1300	250	20-90	330	55	20-90	11
