Specifications
jaw crusher for sale1.low operating cost
2.large reduction ratio
3.ISO certificate
4.durable,high performance

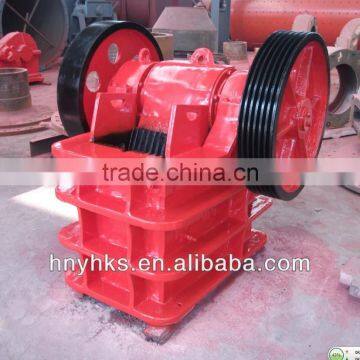

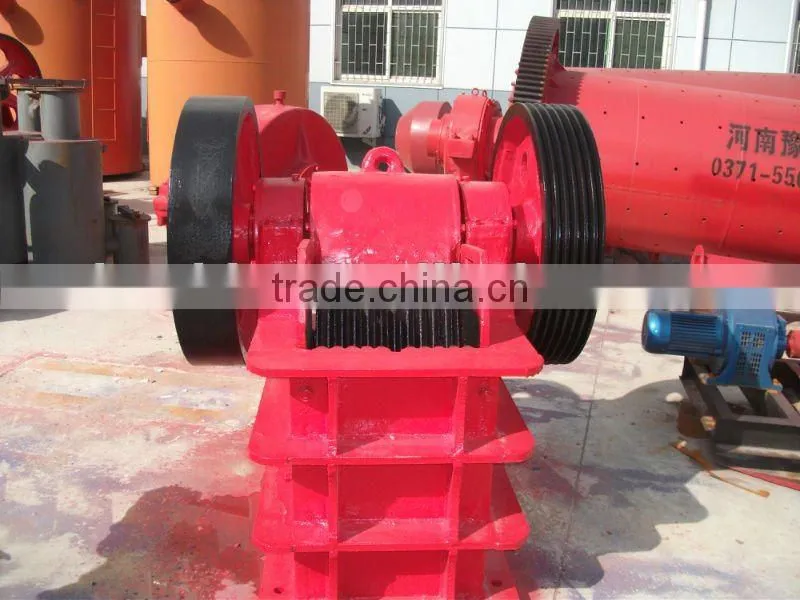

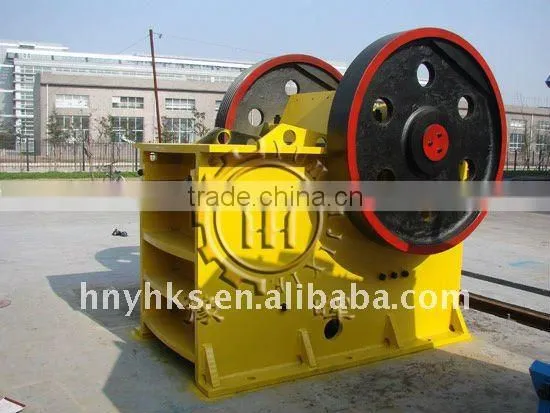

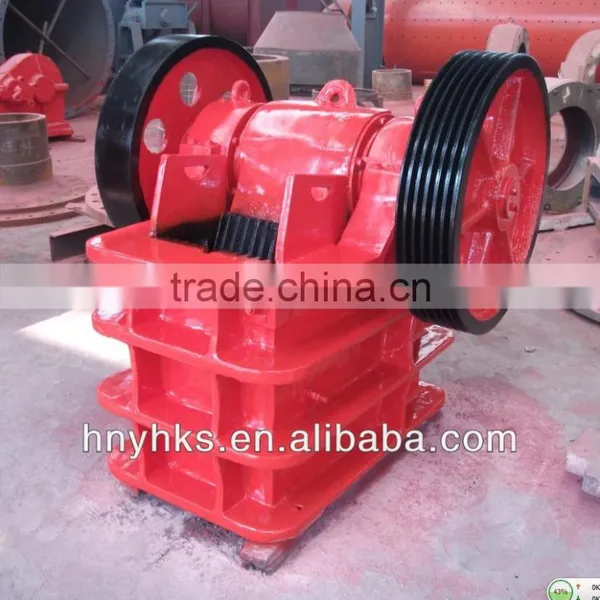

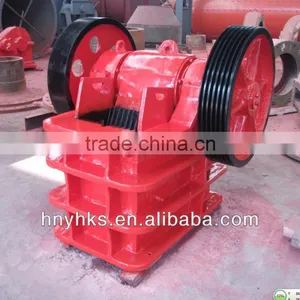

PE,PEX series jaw crusher for sale
1. Description of jaw crusher:
The series of Jaw crusher include 11 models which can meet most capacity requirements in primary and secondary crushing, at the same time, with low power consumption and easy maintenance. Every feature of these machines has been carefully designed to provide superior quality and performance. The high capacity of this pulverizer machine can be ensured by the large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw.
2. Working principle jaw crusher:
The machine’s leather belt and wheel are driven by the electric motor, then the movable jaw begins to move up and down by the eccentric shaft, when the movable jaw moves from top to bottom, the angle between fixed jaw and movable jaw becomes smaller, the movable jaw plate deviated from the fixed jaw plate under the function of dragging rod and spring, at this moment, the crushed materials are discharged from the bottom outlet of the crushing cavity.
3. Features of jaw crusher:
1) High capacity
2) High reliability
3) Adjustable for easy wear parts
4) over-loading protection
5) simple structure and easy to access and operate
6) Long service time
7) Easy replacement of wear and spare parts
8) Less cost and easy installation
9) Wide range of choices
4.Technical parameters of jaw crusher:
model | Feed port size (mm) | Max. length of feed(mm) | handling capacity(t/h) | motor power(kw) | overall dimension(mm) | weight(t) |
PE250×400 | 400×250 | 200 | 5-20 | 15 | 1430×1310×1340 | 3 |
PE400×600 | 600×400 | 350 | 15-60 | 30-37 | 1700×1732×1653 | 7 |
PE500×750 | 500×750 | 425 | 40-110 | 45-55 | 2035×1921×2000 | 12 |
PE600×900 | 900×600 | 480 | 90-180 | 55-75 | 2290×2206×2370 | 17 |
PE750×1060 | 1060×750 | 630 | 110-320 | 90-110 | 2655×2302×3110 | 29 |
PE900×1200 | 900×1200 | 750 | 220-450 | 110-132 | 3800×3166×3045 | 52 |
PEX150×250 | 150×250 | 125 | 1-3 | 5.5 | 896×745×935 | 1.5 |
PEX150×750 | 150×750 | 125 | 5-16 | 15 | 896×745×935 | 3.8 |
PEX250×750 | 750×250 | 210 | 15-30 | 22-30 | 1667×1545×1020 | 5 |
PEX250×1000 | 1000×250 | 210 | 15-50 | 30-37 | 1550×1964×1380 | 7 |
PEX250×1200 | 1200×250 | 210 | 20-60 | 37-45 | 2192×1900×1950 | 8.5 |
