Energy Saving Sag Ball Mill

Energy Saving Sag Ball Mill thumbnail-1
Energy Saving Sag Ball Mill photo-1
US$ 5,000 - 999,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
DC Motor
Contact Supplier Request Quote Chat Now
Henan Yuhui Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type DC Motor
Power(W) different model
Capacity(t/h) 0.65-90
Place of Origin Henan, China
Brand Name Yuhui
Model Number many types of sag ball mill
Dimension(L*W*H) different model
Weight different model
Certification ISO, BV
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

sag ball mill
1.CE&ISO certificate
2.overfall pattern controlling discharging
3.whole base support
4.easy to maintain

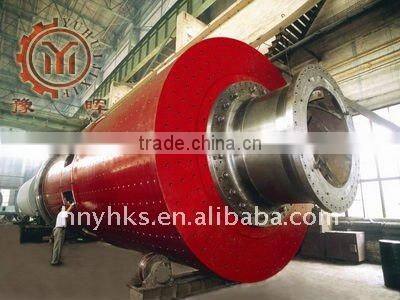

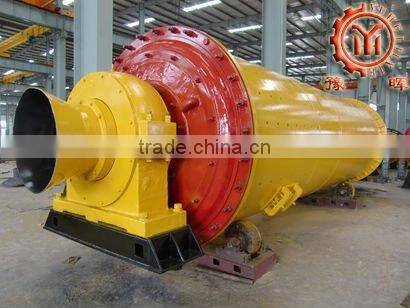

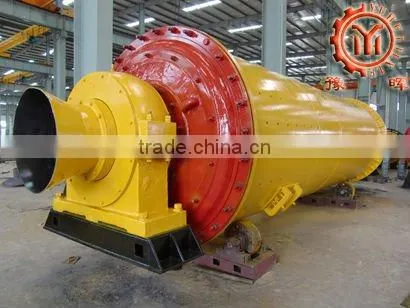

  energy saving sag ball mill



 energy saving sag ball mill

Sag Ball Mill Working Principle:

The Energy-Saving Sag Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.



Specifications of Sag Ball Mill:

Model

Speed of bucket
(r/min)

Weight
of ball

Size of
feed opening(mm)

size of outputting
feed (mm)

Production
(t/h)

Power
(kw)

Weight
(T)

900×1800

38

1.5

≤20

0.075-0.89

0.65-2

18.5

3.6

900×3000

38

2.7

≤20

0.075-0.89

1.1-3.5

22

4.6

1200×2400

32

3.8

≤25

0.075-0.6

1.5-4.8

45

12.5

1200×3000

32

5

≤25

0.075-0.4

1.6-5

45

12.8

1200×4500

32

7

≤25

0.075-0.4

1.6-5.8

55

13.8

1500×3000

27

8

≤25

0.075-0.4

2-5

90

17

1500×4500

27

14

≤25

0.075-0.4

3-6

110

21

1500×5700

27

15

≤25

0.075-0.4

3.5-6

132

24.7

1830×3000

24

11

≤25

0.075-0.4

4-10

180

28

1830×6400

24

23

≤25

0.075-0.4

6.5-15

210

34

1830×7000

24

25

≤25

0.075-0.4

7.5-17

245

36

2200×5500

21

30

≤25

0.075-0.4

10-22

370

48.5

2200×6500

21

30

≤25

0.075-0.4

14-26

280

52.8

2200×7500

21

33

≤25

0.075-0.4

16-29

475

56

energy saving sag ball mill

energy saving sag ball mill
