Mineral processing machine of high frequency screen
- 50 Set / Sets per Month
- Tianjin;Qingdao;shanghai
- T/T
Product Details
Condition: | New | Type: | Other, High frequency screen | Application: | Other, Mining,construction, mining |
Place of Origin: | Henan, China | Brand Name: | YuHui | Model Number: | GPS |
Voltage: | 380v | Power(W): | 0.72-2.0kw | Dimension(L*W*H): | accprding to differen types |
Weight: | according to different types | Certification: | ISO9001:2000, ISO9001:2000 | Warranty: | 1year, 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

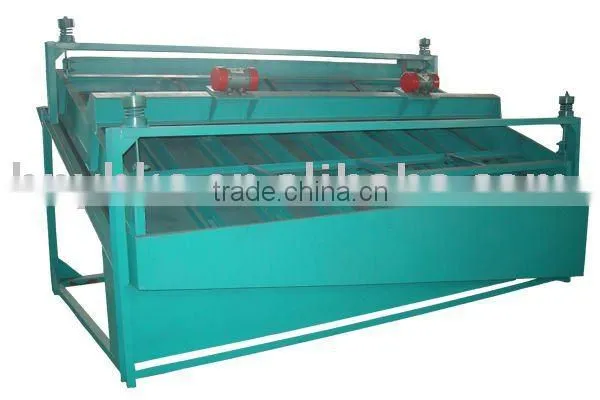

Mineral processing machine of high frequency screen
1. High-Frequency Screen Structure
High-Frequency Screen consists of vibration exciter, ore pulp distributor, screen frame, machine frame, suspension springs and sieve, etc.
2. High-Frequency Screen Features
High efficiency, small amplitude and high frequency of screening; it differs from the conventional screens with breaking of the surface tension of pulp and small granularity high speed vibration on sieve cover and accelerates the separating of large-density useful mines and increase the contacting probability of the materials smaller than output granularity and the sieve pore. Therefore produce good condition and make the materials smaller than the output granularity, especially the big-density materials and pulp get through the sieve pore together. Its screen is made of stainless steel or nylon.
The obliquity of the sieving is adjustable. If the obliquity is close to 55º, end product with fineness of 300 mesh occupies 75%.
3. High-Frequency Screen Application
This series screens are always used in processing minerals such as ferrous metals including hematite & magnetite and nonferrous metals including Lead, Zinc, Gold and Silver etc. This machine works in a re-circulating network with ball mill, which can upgrade the fineness of ferrous and nonferrous metals. Its efficiency is twice as that of Spiral Classifier.
4. High frequency screen specifications
Specifications Model | Screen surface area of(m2) | The concentration into the sieve(%) | Capacity(t/h) | Power(kw) |
GPS-4 | 4.5 | 30%-40% | 15-25 | 0.72 |
GPS-5 | 5.2 | 30%-40% | 20-30 | 1.1 |
GPS-6 | 6 | 30%-40% | 24-36 | 1.5 |
GPS-8 | 8.1 | 30%-40% | 32-48 | 2.2 |
Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
