Specifications
overflow ball mill1. simple structure
2. reliable and stable performance
3. widely usage
4. with certificate
overflow ball mill manufactured by henan yuhui
(1)working principle:
- ball mill is a horizontal rotating device by outer gear
- the materials are transferred to the grinding chamber through the quill shaft uniformly
- the centrifugal force caused by rotation of barrel brings the steel balls to a certain height
- the materials are discharged through the discharging board then grinding process is finished.

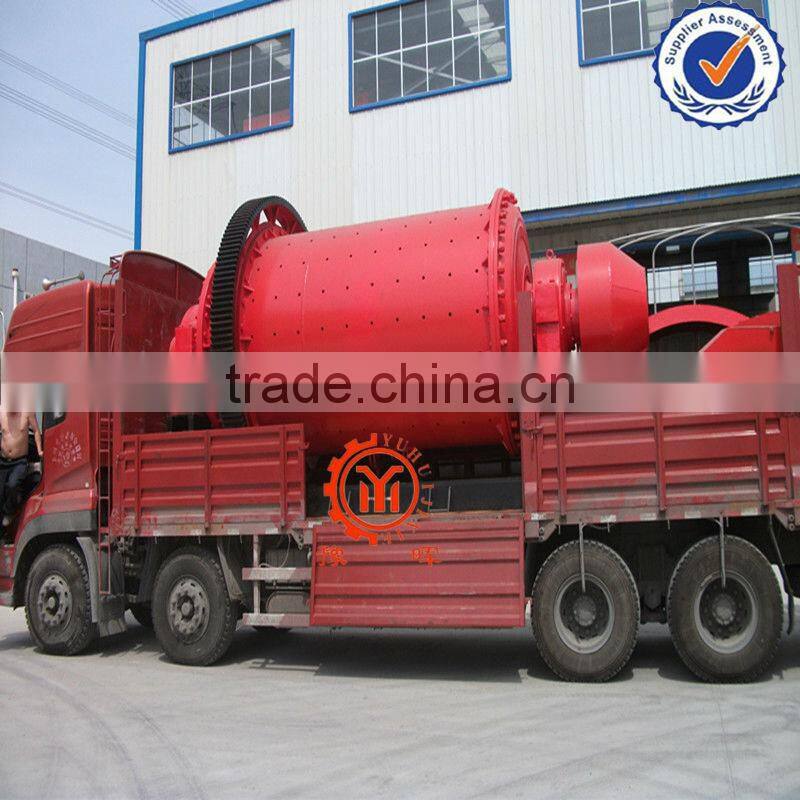

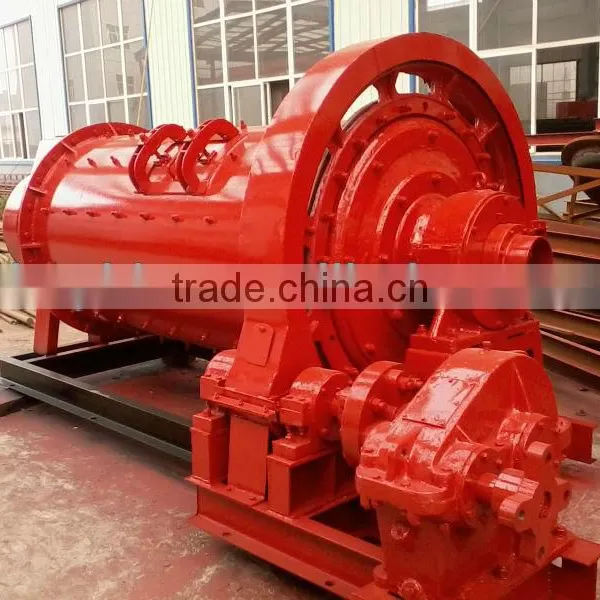

(2)picture ball mill:
(3)main technical parameters:
Model | Cylinder diameter(mm) | Cylinder length(mm) | Effective volume(m3) | Mill rotational speed(r/min) | Body capacity(t) | Drive way | Main motor | Weight(t) | Remarks | |
Power(kw) | Speed(r/min) | |||||||||
MQY15×30 | 1500 | 3000 | 5 | 26.6 | 9 | Edge | 95 | 742 | 18.5 | Drum feeder |
MQY15×36 | 1500 | 3600 | 5.7 | 26.6 | 10.6 | Edge | 95 | 742 | 17.22 | Rubber liner |
MQY21×30 | 2100 | 3000 | 9.4 | 22.1 | 15 | Edge | 210 | 740 | 45 |
|
MQY24×30 | 2400 | 3000 | 12.2 | 21 | 22.5 | Edge | 250 | 980 | 55 |
|
MQY27×36 | 2700 | 3600 | 18.5 | 20.5 | 39 | Edge | 400 | 187.5 | 61.34 |
|
MQY27×45 | 2700 | 4500 | 23.5 | 20.5 | 43.5 | Edge | 500 | 187.5 | 76 |
|
MQY28×80 | 2800 | 8000 | 43 | 2. | 78.6 | Edge | 800 | 187 | 115 | Used for coal water slurry |
MQY32×36 | 3200 | 3600 | 26.3 | 18.3 | 48.4 | Edge | 500 | 167 | 116.94 | |
MQY32×45 | 3200 | 4500 | 32.9 | 18.3 | 60.5 | Edge | 630 | 167 | 124.23 |
|
MQY32×75 | 3200 | 7500 | 55.5 | 18.3 | 102 | Edge | 1250 | 734 | 154 |
|
MQY34×45 | 3400 | 4500 | 37 | 18.4 | 74.6 | Edge | 800 | 167 | 129.8 |
|
MQY34×56 | 3400 | 5600 | 45.8 | 17.9 | 84.3 | Edge | 1120 | 985 |
|
|
MQY36×50 | 3600 | 5000 | 46.7 | 17.5 | 85.96 | Edge | 1250 | 167 | 150 |
|
MQY36×60 | 3600 | 6000 | 54 | 17.3 | 102 | Edge | 1250 | 167 | 162.7 |
|
MQY36×90 | 3600 | 9000 | 83.5 | 17.4 | 138 | Edge | 1800 | 743 | 286 |
|
MQY40×60 | 4000 | 6000 | 69.8 | 16 | 126 | Edge | 1500 | 200 | 203.5 | Used for coal water slurry |
MQY40×135 | 4000 | 13500 | 155 | 16 | 233 | Edge | 3300 | 200 | 343 | |
MQY43×61 | 4270 | 6100 | 80 | 15.67 | 144 | Edge | 1750 | 200 | 215.3 |
|
MQY 50×64 | 5030 | 6408 | 120 | 14.4 | 251 | Edge | 2600 | 200 | 318.5 |
|
MQY55×65 | 5500 | 6500 | 143.3 | 13.8 | 264 | Edge | 3400 | 200 | 451.5 |
|
MQY55×85 | 5500 | 8500 | 187.4 | 13.8 | 335 | Edge | 4500 | 200 | 480 |
|
NOTICE:ANY CHANGE OF THE TECHNICIAL DATA SHALL NOT BE ADVISED ADDITIONALY.
