Superior Quality Small Ball Mill for Sale

Superior Quality Small Ball Mill for Sale thumbnail-1
Superior Quality Small Ball Mill for Sale photo-1
US$ 5,000 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Yuhui Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 15-800kw
Capacity(t/h) 0.65-90
Place of Origin Henan, China
Brand Name Yuhui
Model Number ball mill
Dimension(L*W*H) different model
Weight 3.6-137t
Certification ISO, BV
Warranty 12 months

Specifications

small ball mill for sale
1.ISO certificate
2.high grinding ratio
3.low consumption
4.durable

superior quality small ball mill for sale

 superior quality small ball mill for sale

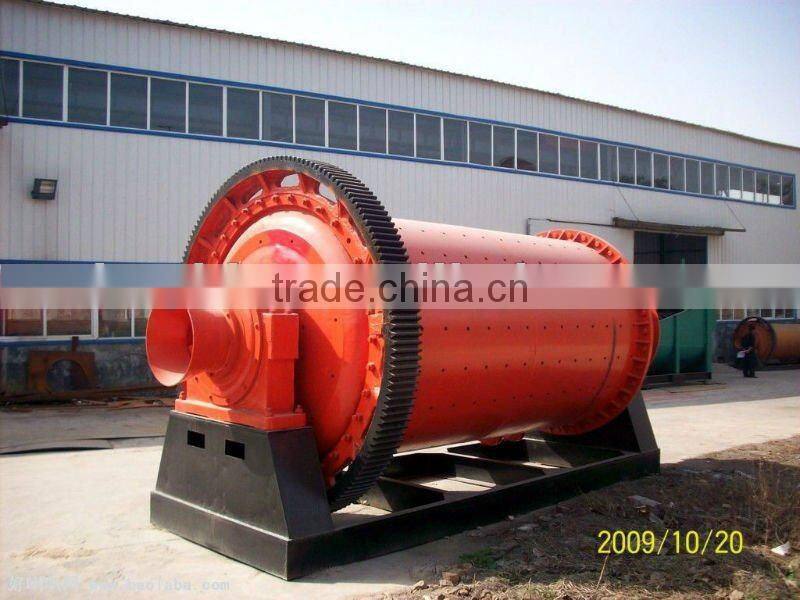

I. Small Ball Mill:

Small Ball Mill is generally used to grind ore 1/4 inch and finer, down to the particle size of 20 to 75 microns. it is widely used in mining, smelting, road, building material and chemical industry. And it is the key equipment for fine grinding after the crush process. This mill consists of feeding device, driving assembly, rotating assembly, bearing unit discharging assembly and foundation unit.

II. Small Ball Mill Features:

1 It is an efficient tool for grinding many hard materials into fine powder;

2 There are two ways of grinding: the dry way and the wet way;

3 Ball mill can be divided into tabular type and flowing type according to different expelling mine;

4 To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding

media;

III. Specifications of Small Ball Mill:

Model

Feeding size(mm)

Discharging size(mm)

Weight of ball(t)

Rotational speed (r/min)

Power(kw)

Capacity(t/h)

Weight(t)

900*1800

≤20

0.075-0.89

1.4

42

18.5

0.65-2

3.6

900*2100

≤15

0.075-0.83

1.7

41

15

0.7-3.5

3.9

900*3000

≤20

0.075-0.89

2.5

41

22

1.1-3.5

4.5

1200*2400

≤25

0.075-0.6

3.5

36

30

1.5-4.7

11.5

1200*2800

≤25

0.075-0.6

4.5

36

37

1.5-5

13

1200*4500

≤25

0.075-0.4

5.5

32

55

1.6-5.8

13.8

1500*3000

≤25

0.047-0.4

8.68

31

75

2-7

17

1500*3500

≤25

0.047-0.4

7.75-6.4

31

75

3-8.5

17.5

1500*4500

≤25

0.047-0.4

10.5

27

110

3.5-8

21

1500*5700

≤25

0.047-0.4

15

27

130

3.5-10

24.7

1830*3000

≤25

0.047-0.4

18

26

160

4-12

28

1800*3600

≤25

0.047-0.4

10.6-11.35

26

160

5-13

33.5

1830*4500

≤25

0.047-0.6

12

26.5

185

5.5-20

35

1830*7000

≤25

0.047-0.4

25

26

210

6.5-22

36

2100*3600

≤25

0.047-0.4

14-15.2

24

185

15-30

46.8

2200*5500

≤25

0.047-0.4

30

21

245

10-20

48.5

2200*6500

≤25

0.047-0.4

31

21

380

14-50

52.8

2200*7500

≤25

0.047-0.4

33

21

380

16-50

56

2400*3000

≤25

0.047-0.4

15.5-16.6

20.6

245

15-55

59

2400*4500

≤25

0.047-0.4

30

21

380

15-60

65

2700*3600

≤25

0.047-0.4

39

20.6

400

20-70

91.3

2700*4000

≤25

0.047-0.4

40

20.7

400

20-80

94

2700*4500

≤25

0.047-0.4

48

20.7

430

20-90

102

3200*4500

≤25

0.047-0.4

65

18

800

According to process condition

137
