Hot Sale Grinding Ball Mill Machine in Beneficiation Process

Hot Sale Grinding Ball Mill Machine in Beneficiation Process thumbnail-1
Hot Sale Grinding Ball Mill Machine in Beneficiation Process thumbnail-2
Hot Sale Grinding Ball Mill Machine in Beneficiation Process thumbnail-3
Hot Sale Grinding Ball Mill Machine in Beneficiation Process photo-1
Hot Sale Grinding Ball Mill Machine in Beneficiation Process photo-2
Hot Sale Grinding Ball Mill Machine in Beneficiation Process photo-3
US$ 10,000 - 999,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Yuhui Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 18.5-800kw
Capacity(t/h) 0.65-90t/h
Place of Origin Henan, China
Brand Name Yuhui
Model Number many types
Dimension(L*W*H) different model
Weight 3.6-137t
Certification BV, ISO9001:2000
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

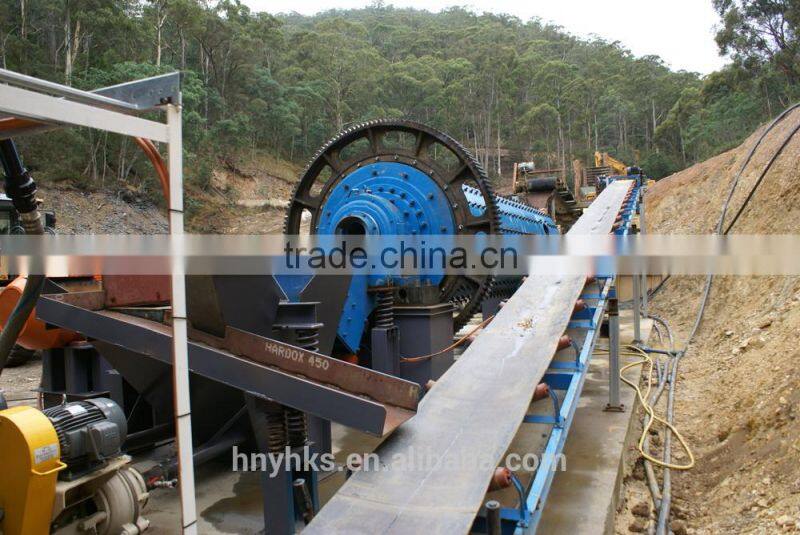

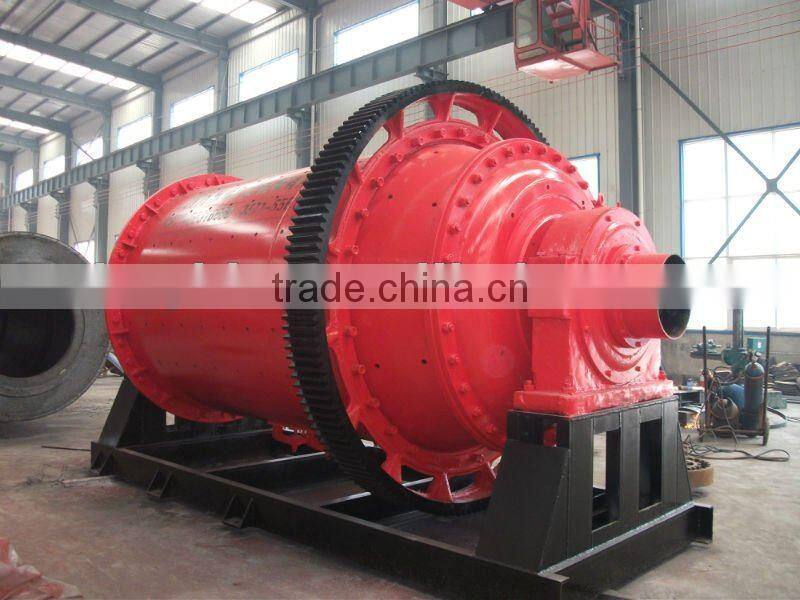

hot sale grinding ball mill machine in beneficiation process

hot sale grinding ball mill machine in beneficiation process





Grinding ball mill application:



 The ball mill is widely applied in mineral classification and selection, cement, fireproof materials, glass, pottery, chemical industry and so on. The ball mill can grind all kinds of rocks and grinding materials. There are two ways of grinding: the dry process and the wet process.





Grinding ball mill working principle:



 The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.







Aim of grinding ore process:



Grinding process, after crushing process, is the last process before ore selection. The aim of grinding ore is to make sure the useful elements of ores can be separated at the extreme, which reach to the proper size for ore selection process, and create conditions for recovering useful elements of ores in selection process.




Grinding ball mill technical parameters:

Model

Feeding size(mm)

Discharging size(mm)

Weight of ball(t)

Rotational speed (r/min)

Power(kw)

Capacity(t/h)

Weight(t)

Φ900*1800

≤20

0.075-0.89

1.4

42

18.5

0.65-2

3.6

Φ900*2100

≤15

0.075-0.83

1.7

41

15

0.7-3.5

3.9

Φ900*3000

≤20

0.075-0.89

2.5

41

22

1.1-3.5

4.5

Φ1200*2400

≤25

0.075-0.6

3.5

36

30

1.5-4.7

11.5

Φ1200*2800

≤25

0.075-0.6

4.5

36

37

1.5-5

13

Φ1200*4500

≤25

0.075-0.4

5.5

32

55

1.6-5.8

13.8

Φ1500*3000

≤25

0.047-0.4

8.68

31

75

2-7

17

Φ1500*3500

≤25

0.047-0.4

7.75-6.4

31

75

3-8.5

17.5

Φ1500*4500

≤25

0.047-0.4

10.5

27

110

3.5-8

21

Φ1500*5700

≤25

0.047-0.4

15

27

130

3.5-10

24.7

Φ1830*3000

≤25

0.047-0.4

18

26

160

4-12

28

Φ1800*3600

≤25

0.047-0.4

10.6-11.35

26

160

5-13

33.5

Φ1830*4500

≤25

0.047-0.6

12

26.5

185

5.5-20

35

Φ1830*7000

≤25

0.047-0.4

25

26

210

6.5-22

36

Φ2100*3600

≤25

0.047-0.4

14-15.2

24

185

15-30

46.8

Φ2200*5500

≤25

0.047-0.4

30

21

245

10-20

48.5

Φ2200*6500

≤25

0.047-0.4

31

21

380

14-50

52.8

Φ2200*7500

≤25

0.047-0.4

33

21

380

16-50

56

Φ2400*3000

≤25

0.047-0.4

15.5-16.6

20.6

245

15-55

59

Φ2400*4500

≤25

0.047-0.4

30

21

380

15-60

65

Φ2700*3600

≤25

0.047-0.4

39

20.6

400

20-70

91.3

Φ2700*4000

≤25

0.047-0.4

40

20.7

400

20-80

94

Φ2700*4500

≤25

0.047-0.4

48

20.7

430

20-90

102

Φ3200*4500

≤25

0.047-0.4

65

18

800

According to process condition

137

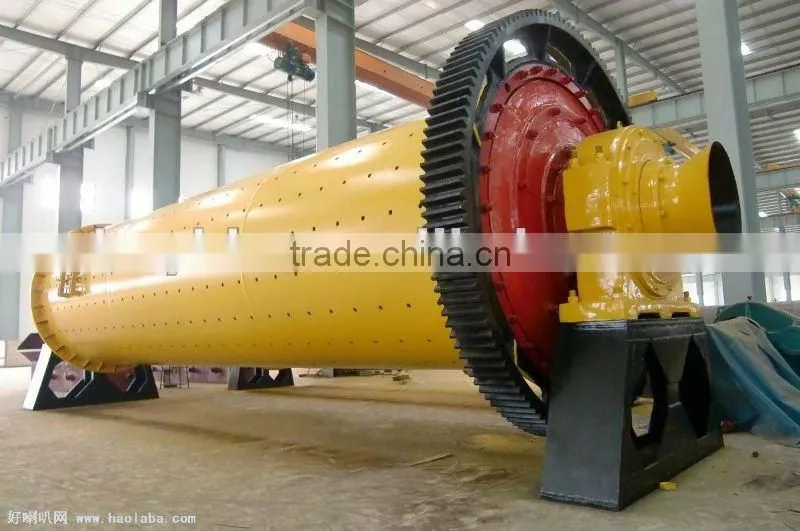

hot sale grinding ball mill machine in beneficiation process

hot sale grinding ball mill machine in beneficiation process
