Industrial Hot Used in Mining Screw Ore Washer Manufacturer of China

Industrial Hot Used in Mining Screw Ore Washer Manufacturer of China thumbnail-1
Industrial Hot Used in Mining Screw Ore Washer Manufacturer of China photo-1
US$ 100 - 99,999,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Motor Type:
AC Motor
Power(W):
according to different model
Contact Supplier Request Quote Chat Now
Henan Yuhui Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Motor Type AC Motor
Power(W) according to different model
Capacity(t/h) according to different model
Place of Origin Henan, China
Brand Name Yuhui
Model Number Many types
Dimension(L*W*H) according to different model
Weight according to different model
Certification ISO9001:2000
Warranty 1year, One year
After-sales Service Provided Engineers available to service machinery overseas

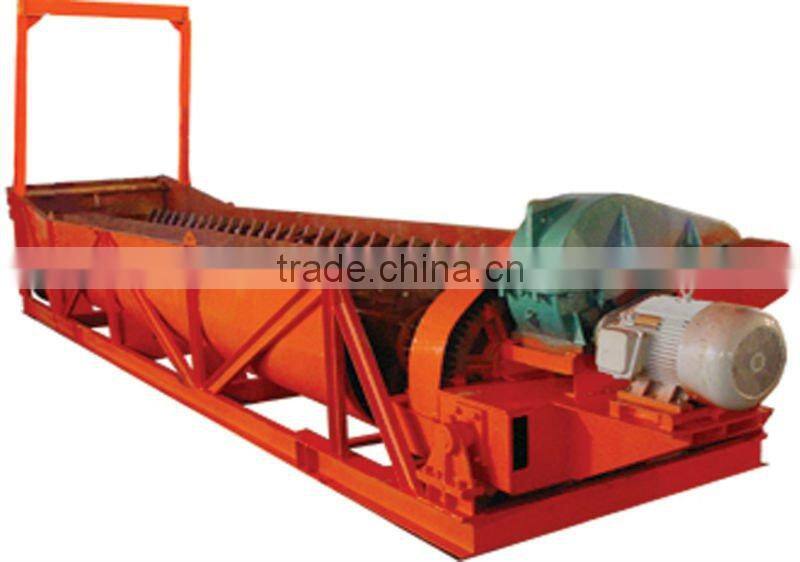

Industrial hot used in mining industrial screw ore washer manufacturer of China



Industrial hot used in mining screw ore washer manufacturer of China

Working Principle of screw  ore washer

 Spiral washing machine makes use of buoyancy of water to separate sand from dust and impurity. It achieves purifying, lifting and conveying of the minerals through the stirring of spiral slice. During lifting, the minerals are also stirred so that the coarse sands and fine sands are evenly mixed.



Features of screw ore washer:

Spiral ore washer machine has features like long spiral structure, good sealing system, simple structure, strong processing capability, convenient maintenance, good washing efficiency, etc. It is widely used in mining industry.



Parameters of screw ore washer:

Type

Model Specifications

Screw Diameter
(mm)

Selected Particles
(mm)

Water Consumption
(T/h)

Production Capacity
(t)

Motor Power(kw)

Overall Dimensions(L×W×G)
mm

Weight
( kg)

Light Single-Helix

XL-508

508

≤10

14-88

20

705

8000×2343×1530

2670

XL-610

610

≤10

14-165

50

705

8000×2490×1530

3800

XL-762

762

≤10

18-124

75

11-15

9070×2650×1638

5225

XL-914

914

≤10

18-162

100

11-15

9070×2650×1638

6370

XL-1118

1118

≤10

27-333

175

30

9070×2830×1900

9800

Light Double Helix

2XL-762

762

≤10

40-250

140

2×11

11580×3965×2370

7440

2XL-914

914

≤10

105-620

200

215

9070×3300×1638

9531

2XL-1118

1118

≤10

125-1400

350

222

9070×3890×1900

16700

Heavy-Duty Single-Helix

XLZ-762

762

≤60

355-450

80-125

22

11580×5226×2370

9800

XLZ-914

914

≤60

400-600

125-175

30

6980×1200×1340

11800

XLZ-1118

1118

≤75

500-750

180-250

37

7400×1380×1950

13900

Heavy-Duty Double Helix

2XLZ-762

762

≤60

600-800

100-150

2×22

6980×2019×1340

16800

2XLZ-914

914

≤60

700-900

150-200

2×30

7120×2146×1590

20800

2XLZ-1118

1118

≤75

900-1100

200-300

2×37

8500×2861×2150

23870
