Specifications
2012 hot sale GPS-6 high frequency screening machine1.small amplitude
2.high efficiency
3.low consumption
2012 hot sale GPS-6 high frequency screening machine
Introduction

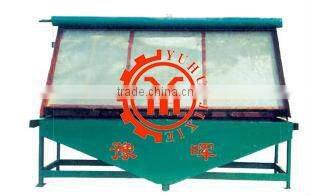

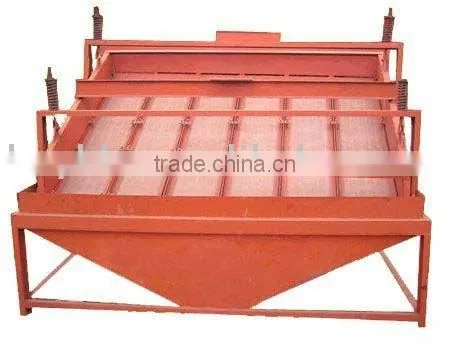

High-frequncy screen consists of vibrator, pulp dispensers, screen box, framewoik, suspension spring and screen clothm etc.
According to working principle, it differs from the conventional screens. High-frequency screen features high efficiency, small amplitude, high frequency. Adopting high frequency, it breaks the surface tension of slurry abd fine-grained materials' high-speed vibration on screen clothm thus it accelerates the separating of large-density minerals and increases the probability of small granule touch screen sieve. It creates good condition for heavy gravity material and slurry to pass the screen pore.
Application of high frequency screen
This series screens are always used in processing minerals such as ferrous metals including hematite&magnetic and nonferrous metals including lead,zinc,glod and silver etc.This machine works in a re-circulating network with ball mill,which can upgrade the fineness of ferrous and nonferrous metals.Its efficiency is twice as that of spiral classifier.
Working Principle
It differs from the conventional screens with breaking of the surface tension of slurry and small granularity's high speed vibration on sieve cover and accelerates the separating of large-density useful mines and increase the contacting probability of the materials smaller than output granularity and the sieve pore. Therefore produce good condition and make the materials smaller than the output granularity, especially the big-density materials and slurry get through the sieve pore together.
Technical Specification
Model | Screen square(m2) | Thickness of input material(%) | Processing capacity(t/h) | Motor power(kw) |
GPS-4 | 4.5 | 30%-40% | 15-25 | 0.72 |
GPS-5 | 5.2 | 30%-40% | 20-30 | 1.1 |
GPS-6 | 6 | 30%-40% | 24-36 | 1.5 |
GPS-8 | 8.1 | 30%-40% | 32-48 | 2.2 |
Henan Yuhui Mining Machinery Co., Ltd. is a enterprise that mainly produces large and medium sized beneficiation gravel equipment, crushers, sand making machines and Raymond ball mills. The leading products include the whole set of mine-selecting equipment and sandstone equipment, such as ball mills, crushers, magnetic separators, flotation machines, classifiers, driers, sand-makers, oscillating screens, sand washers and conveyors.Our products are sold all over the world such as Indonesia, Pakistan Saudi Arabia, India, Russia, Vietnam, Iran…we have earned a worldwide fame.
