2014 6S shaking table hot selling to Middle east
- 100 Set / Sets per Month
- Tianjin Qingdao Shanghai
- T/T
- Gold mining jaw crusher equipment for sale, stone crusher machine
- First-rate high efficiency SZZ series self-centering vibrating screen with ISO 9001 Certificate
- China leader manufacturer ZHAOXIN high efficiency thickener
- Ore benefication thickener machine, dewatering thickener price
- china high quality center drive thickener, thickening equipment
- Shandong Province high efficiency center drive thickener NZ-12, thickening machine
Product Details
Place of Origin: | Henan, China | Brand Name: | Yuhui | Model Number: | 6S |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2014 6S shaking table hot selling to Middle east
Application
Shaking table, ore shaking table is one of the main mineral processing equipment; It is widely used in sorting tungsten, tin, tantalum and niobium and other rare metals and precious metal ores. It can also be used for sorting iron, manganese ore stone and coal. When dealing with tungsten, tin and other minerals, its effective recovery size is 2-0.02 mm.
Features
(1)good high-grade ore sorting rate
(2)high efficient
(3)easy operation and maintenance
(4)easy stroke adjustment
When change the horizontal slope and stroke, the Shaking Tablecan still maintain running balance, springs installed compact and stable inside, the final ore concentrate and the final.
Construction
Head Motion:The head motion is of rugged construction and requires minimum maintenance. Its internal mechanism is splash lubricated from an integral oil sump.
Decks :The decks are built of 16 mm zircon-reinforced fiberglass with fabricated steel frames at the bottom and are easy to clean, requiring little maintenance. The specific gravity of fiberglass made into decks is one third of that of steel, while its strength reaches as high as 70% that of steel. This fiberglass desks also has the characteristic of water-resistance and corrosion-resistance and can hold the shape unchangeable at ±50.
Feed and Water Box :A wooden feed distributing box with hopper and a long water box are attached to the iron of the deck, giving a very even distribution of feed and water.
Base:A choice of ordinary type, groove steel support or big channel steel support is available.
Main Technical Parameter
Name | Unit | Grit concentrating table | Fine sand concentrating table | Sludge concentrating table | |
Dimensions | Length | MM | 4450 | 4450 | 4450 |
Driving part width | MM | 1855 | 1855 | 1855 | |
Concentrate part width | MM | 1546 | 1546 | 1546 | |
Max. feeding size | MM | 2 | 0.5 | 0.15 | |
Feeding amount | T/d | 30-60 | 10-20 | 15-25 | |
Feeding thickness | % | 25-30 | 20-25 | 15-25 | |
Journey | Mm | 16-22 | 11-16 | 8-16 | |
Frequency | F | 15-48 | 48-53 | 50-57 | |
Water quantity | T/d | 80-150 | 30-60 | 10-17 | |
Horizontal obliquity | Degree | 2.5-4.5 | 1.5-3.5 | 1-2 | |
Portrait obliquity | % | 1.4 | 0.92 | ----- | |
Table board corner | Degree | 32-42 | 40 | 42 | |
Concentrating square | ---- | 7.6 | 7.6 | 7.6 | |
Table board length ratio | ---- | 2.6 | 2.6 | 2.6 | |
Motor power | KW | 1.1 | 1.1 | 1.1 |

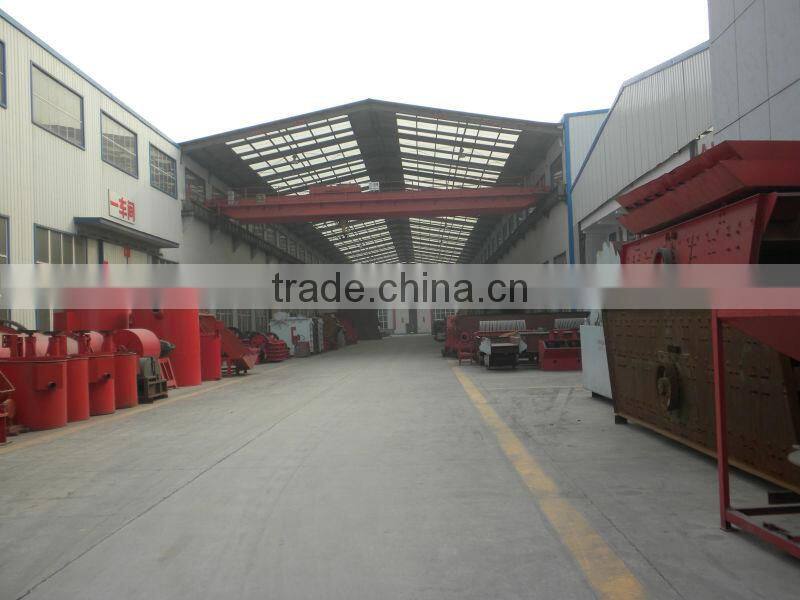

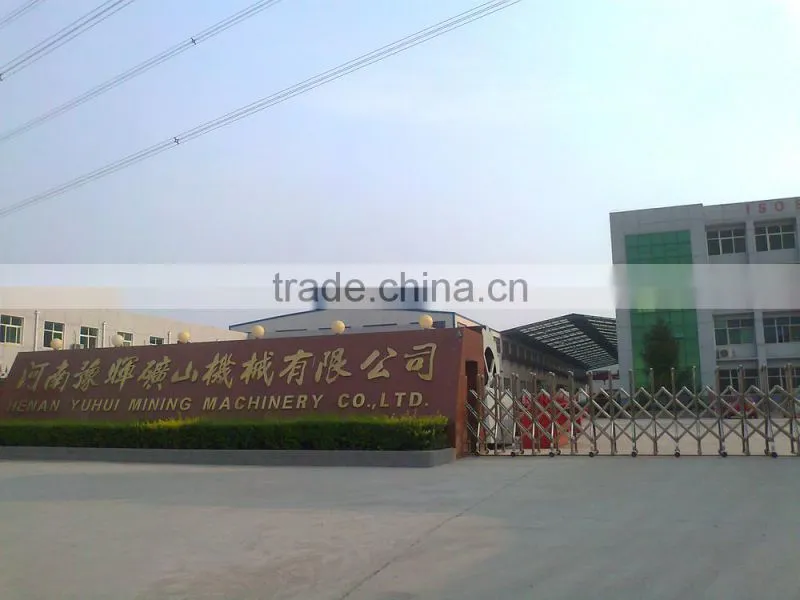

Henan Yuhui Mining Machinery Co., Ltd. is a enterprise that mainly produces large and medium sized beneficiation gravel equipment, crushers, sand making machines and Raymond ball mills. The leading products include the whole set of mine-selecting equipment and sandstone equipment, such as ball mills, crushers, magnetic separators, flotation machines, classifiers, driers, sand-makers, oscillating screens, sand washers and conveyors.Our products are sold all over the world such as Indonesia, Pakistan Saudi Arabia, India, Russia, Vietnam, Iran…we have earned a worldwide fame.
