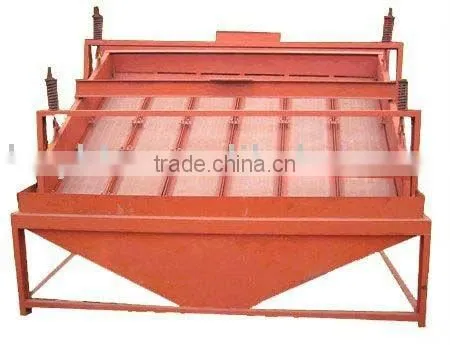

High-Frequency Screen with small amplitude
1. High Frequency Screen Description:
High-frequency screen consists of vibration exciter, ore slurry distributor, screen
frame, machine frame, suspension springs and sieve, etc..
2. High Frequency Screen Features:
1.high efficiency
2.small amplitude
3.high frequency of screening;
3. Working Principle:
It differs from the conventional screens with breaking of the surface tension of slurry and small granularity's high speed vibration on sieve cover and accelerates the separating of large-density useful mines and increase the contacting probability of the materials smaller than output granularity and the sieve pore. Therefore produce good condition and make the materials smaller than the output granularity, especially the big-density materials and slurry get through the sieve pore together.
4. High frequency vibration screen technical data:
Specifications Model | Screen surface area of(m2) | The concentration into the sieve(%) | Capacity(t/h) | Power(kw) |
GPS-4 | 4.5 | 30%-40% | 15-25 | 0.72 |
GPS-5 | 5.2 | 30%-40% | 20-30 | 1.1 |
GPS-6 | 6 | 30%-40% | 24-36 | 1.5 |
GPS-8 | 8.1 | 30%-40% | 32-48 | 2.2 |
Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
We YuHui Mining Machinery Co.,ltd has above 20 years experience in producing sand making production line and ore dressing equipment. We have clients in many countries, like East European countries, Malaysia, India, and South Africa and so on. We have past quality ISO9001:2000 certificate, we will responsible for our products and our customers.
