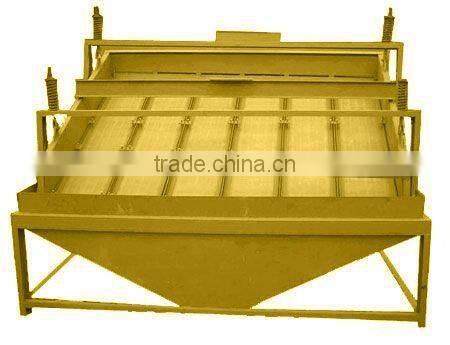

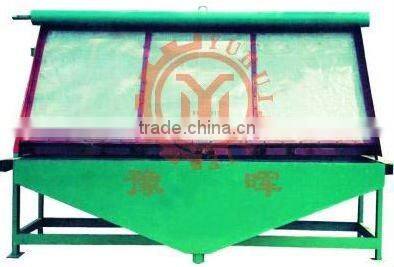

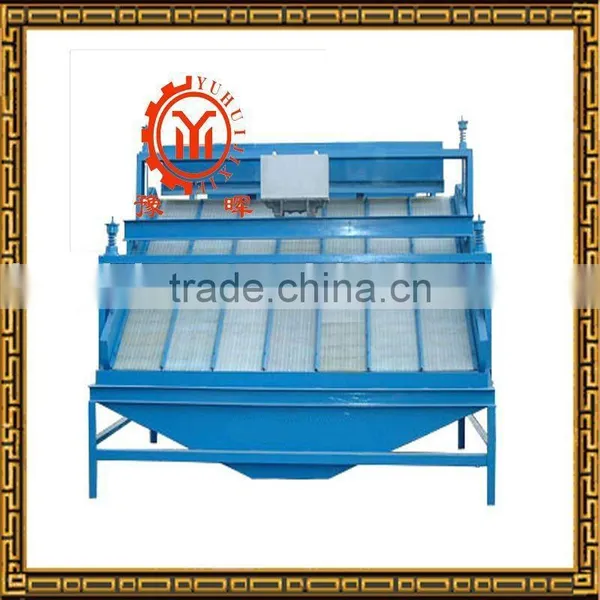

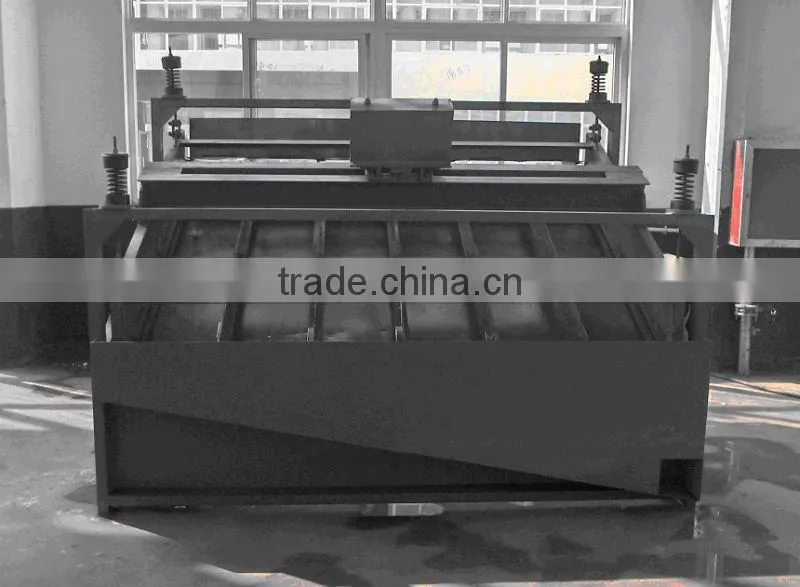

High frequency vibrating screen for ore beneficiation
1. High-Frequency vibrating Screen Structure
High-Frequency Screen consists of vibration exciter, ore pulp distributor, screen frame, machine frame, suspension springs and sieve, etc.
2. High-Frequency Screen vibrating Features
High efficiency, small amplitude and high frequency of screening; it differs from the conventional screens with breaking of the surface tension of pulp and small granularity high speed vibration on sieve cover and accelerates the separating of large-density useful mines and increase the contacting probability of the materials smaller than output granularity and the sieve pore. Therefore produce good condition and make the materials smaller than the output granularity, especially the big-density materials and pulp get through the sieve pore together. Its screen is made of stainless steel or nylon.
The obliquity of the sieving is adjustable. If the obliquity is close to 55º, end product with fineness of 300 mesh occupies 75%.
3. High-Frequency Screen Application
This series screens are always used in processing minerals such as ferrous metals including hematite & magnetite and nonferrous metals including Lead, Zinc, Gold and Silver etc. This machine works in a re-circulating network with ball mill, which can upgrade the fineness of ferrous and nonferrous metals. Its efficiency is twice as that of Spiral Classifier.
4. High frequency screen technical data:
Specifications Model |
Screen surface area of(m2) |
The concentration into the sieve(%) |
Capacity(t/h) |
Power(kw) |
GPS-4 |
4.5 |
30%-40% |
15-25 |
0.72 |
GPS-5 |
5.2 |
30%-40% |
20-30 |
1.1 |
GPS-6 |
6 |
30%-40% |
24-36 |
1.5 |
GPS-8 |
8.1 |
30%-40% |
32-48 |
2.2 |
Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
We YuHui Mining Machinery Co.,ltd has above 20 years experience in producing sand making production line and ore dressing equipment. We have clients in many countries, like East European countries, Malaysia, India, and South Africa and so on. We have past quality ISO9001:2000 certificate, we will responsible for our products and our customers.
