Specifications
High rate thickener1,High mechanical strength
2, target was stable and reliable
3,Simple structure

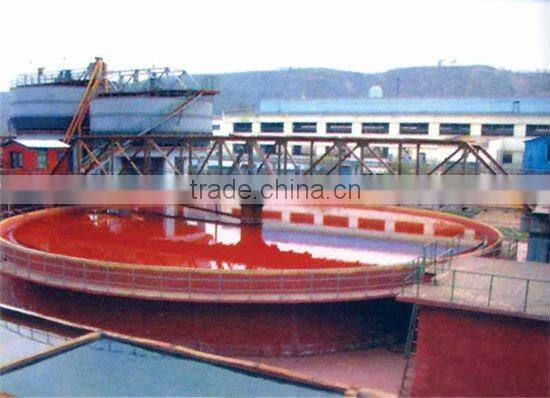

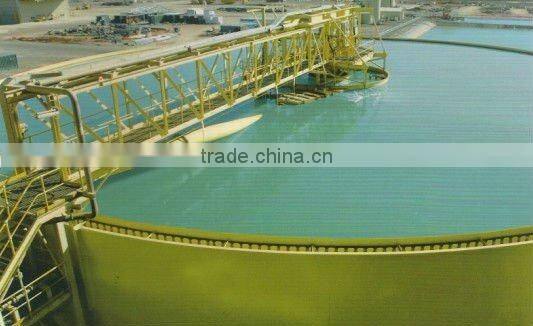

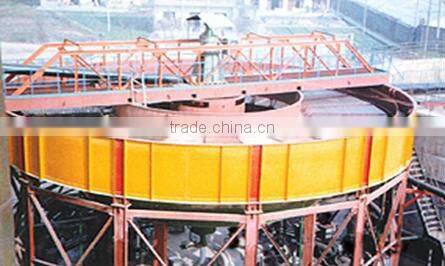

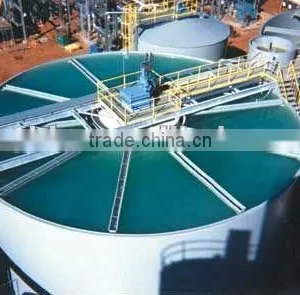

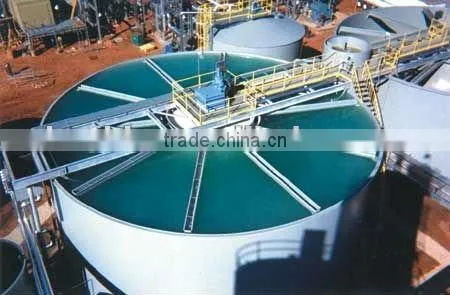

High rate thickener
Specifications
High rate thickener
1)Instant parking, easy to lift the rakes.
2)Sealed transmission box, dip oil type lubrication
High rate thickener
Characteristics
1)The material are put into the pool at the moddle by the deep pipe. Stratospheric fallout,
which reduce the settlement distance, also it reduce the motivation of particles.
2) Centre double hydraumatic drive, makes it stepless speed regulating, to adjust requirements in different working condition.
3) Instant parking, easy to lift the rakes.
4) There are several point to add additives, designed with static mixer in the inlet pipe.
5) With the device, it can discharging the gas in the ore pulp, improving the efficiency of deposit.
6) Protection device of overloading, automatic stop, to protect the equipment from destroying
7) Sealed transmission box, dip oil type lubrication
Technical Parameters:
Model | GNZS—3 | GNZS—6 | GNZS—9 | GNZS—12 | GNZS—15 | GNZS—30 | |
Int dia. of the thickener pool/m | 3.6 | 6 | 9 | 12 | 15 | 30 | |
Depth of the pool/m | 1.8 | 3 | 3 | 3.5 | 4.4 | 5 | |
Deposit areas/m2 | 10.2 | 28.3 | 63.6 | 113 | 176.6 | ____ | |
Minutes per revolution | 2.5 | 3.7 | 4 | 5.26 | 3.7 | ____ | |
Rake height/m | 0.2 | 0.2 | 0.25 | 0.25 | 0.3 | ____ | |
| speed(r/min) | 960 | 1500 | 960 | 960 | 960 | ____ |
Weight/kg | 5000 | 11000 | 14000 | 12500 | 14600 | 34460 | |
...
