High Efficient NXZ-62 Thickener1,High mechanical strength
2, target was stable and reliable
3,Simple structure

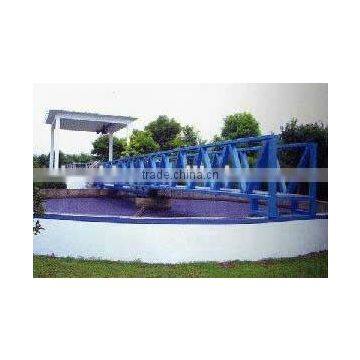

High Efficient NXZ-62 Thickener
Features and application:
In the course of wet mineral selecting, concentrated mine which has large quantities of moisture needed to dewater. And the middlings also need dewater during the selecting in order to improve the concentration of the feeding material in the next phase and the effect of the selecting. The main functions of layer concentrator in selecting are dewatering and concentrating.
Main technical parameter:
Model |
Dia (mm) |
Depth (mm) |
Sediment area (m2) |
speed of frame (mm/min) |
power (kw) |
productivity (d/h ) |
weight (kg) |
NXZ-6 |
6000 |
3100 |
2827 |
2.5-5 |
3 |
50-100 |
5297 |
NXZ-8 |
8000 |
4762 |
50 |
3-5 |
7.5 |
100-200 |
16310 |
NXZ-15 |
15000 |
4510 |
176 |
5-10 |
7.5 |
350-400 |
24181 |
NXZ-16 |
16000 |
4545 |
200 |
0.1-0.2 |
5.5 |
400-600 |
28520 |
NXZ-18 |
18000 |
4545 |
254 |
0.1-0.2 |
5.5 |
650-900 |
30492 |
NXZ-24 |
24000 |
5343 |
450 |
0.11-0.24 |
7.5 |
1000-1500 |
38066 |
NXZ-30 |
30000 |
5343 |
706 |
0.11-0.24 |
7.5 |
1500-2000 |
46210 |
NXZ-45 |
45000 |
8033 |
1590 |
15-22 |
11 |
2400-3000 |
77200 |
NXZ-53 |
53000 |
6946 |
2206 |
15-22 |
15 |
3000-4000 |
99610 |
NXZ-62 |
|
|
|
|
|
|
|
....
