- 1mV/div High Vertical Sensitivity
- Internal 5 Digits Real-Time Frequency Counter
- LCD Readout Display for Vertical/ Horizontal/Frequency Measurement
- Auto Time-Base
- Buzzer Alarm
- TV(TV-V, TV-H) Trigger Modes
- XY Mode
- Z-Axis Input and External Trigger Input

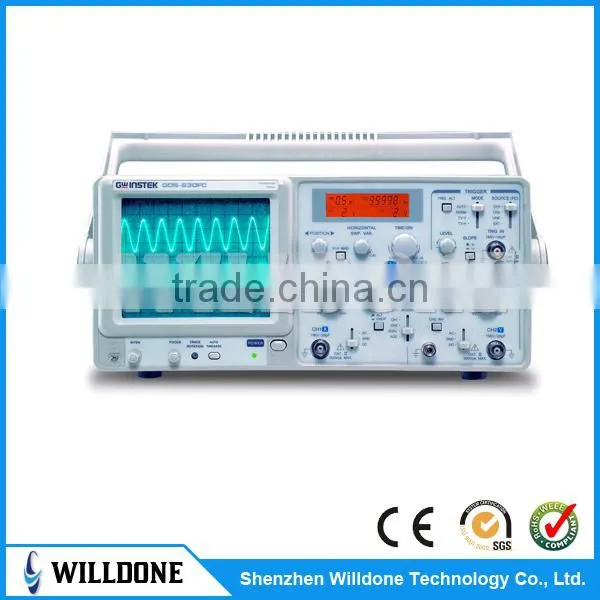

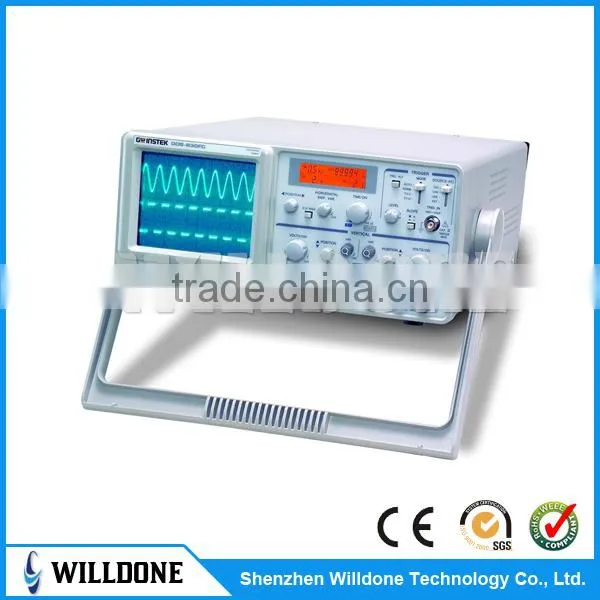

The Economic Oscilloscope GOS-630FC establishes a brand new benchmark for similar categories. New and innovative functions, including LCD Readout Display, Frequency Counter, and Auto Time-Base setting, are provided as standard features. With a 30MHz bandwidth and valuable features, GOS-630FC is priced at the basic Oscilloscope level. 1mV/div High Vertical Sensitivity is able to capture small signal variations in the input source. Additional functions, such as XY mode display, MAG function (Time based Magnified), and Z-axis Input, extend the application range of GOS-630FC to both education and industry fields.
The added values without being converted into extra cost make the GOS-630FC the most beneficial choice among the entry-level analog oscilloscopes available in today’s market.
| GOS-630FC | |
| Digital / Analog | Analog |
| Display | 6" CRT |
| Bandwidth (MHz) | 30 |
| Number of Channel | 2 |
| Vertical Sensitivity | 1mV ~ 5V |
| Time Base Range | 0.2μs ~ 0.5s |
| Input Impedance Selection | 1MΩ |
| Auto Measurement | - |
| Waveform Memory | - |
| Panel Setup Memory | - |
| Auto-Set | V, Only Provided Time-Base Function. |
| Auto/Normal Trigger | V |
| ALT Trigger | V |
| TV Trigger | V |
| Cursor Readout | - |
| XY Mode | V |
| Zoom | - |
| Counter Function | V |
| Function Generator | - |
| Interface | - |
| Buzzer Alarm | V |
| Battery Power Operation | - |
| LED Indicators | - |
| Z-Axis Input | V |
| Power Source | AC 115/230V ±15% Selectable |
