Home > Instruments & Meters > Electronic Instrument > Oscilloscope > Analog Oscilloscopes GOS-635G & GOS-622G
US$ 1 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
GW Instek
Model Number:
GOS-635G & GOS-622G
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Arbitrary Function Generators AFG-2225US$ 1 - 1,000MOQ: 1 Piece -
USB Arbitrary Function Generator, AFG-200/100US$ 1 - 1,000MOQ: 1 Piece
-
Arbitrary Function Generators AFG-2100 & AFG-2000US$ 1 - 1,000MOQ: 1 Piece
-
Spectrum Analyzers GSP-730US$ 1 - 1,000MOQ: 1 Piece
-
Analog Oscilloscopes GOS-630 & GOS-620US$ 1 - 1,000MOQ: 1 Piece
Place of Origin
Taiwan, China
Brand Name
GW Instek
Model Number
GOS-635G & GOS-622G
Features
- 35MHz Bandwidth, Dual Channel (GOS-635G)
- 20MHz Bandwidth, Dual Channel (GOS-622G)
- High Sensitivity 1mV/div
- TV Synchronization
- Z-Axis Input
- ALT Triggering Function
- Hold Off Function (GOS-635G,GOS-622G)
- CH1 Output

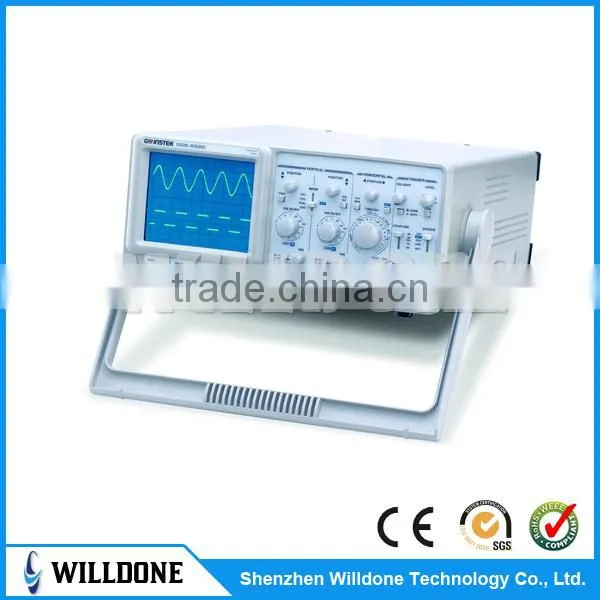

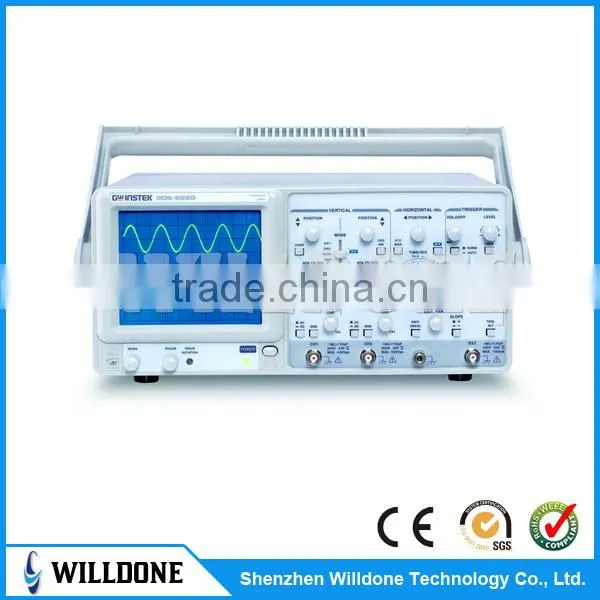

The GOS-635G and GOS-622G are general purpose analog oscilloscopes with 35MHz and 20MHz bandwidth, respectively. These products are designed for a wide range of applications ranging from product designs or assembly lines to EE laboratories or class experiments. Featuring a low vertical sensitivity at 1mV/div and versatile triggering, the GOS-635G and GOS-622G can reliably capture small signals. The GOS-635G/622G is the highest performance/price solution in the Test & Measurement market.
| GOS-635G | GOS-622G | |
| Digital / Analog | Analog | |
| Display | 6" CRT | |
| Bandwidth (MHz) | 35 | 20 |
| Number of Channel | 2 | 2 |
| Vertical Sensitivity | 1mV ~ 5V | |
| Time Base Range | 0.1μs ~ 0.5s | |
| Input Impedance Selection | 1MΩ | |
| Auto Measurement | - | |
| Waveform Memory | - | |
| Panel Setup Memory | - | |
| Auto-Set | - | |
| Auto/Normal Trigger | V | |
| ALT Trigger | V | |
| TV Trigger | V | |
| Cursor Readout | - | |
| XY Mode | V | |
| Zoom | - | |
| Counter Function | - | |
| Function Generator | - | |
| Interface | - | |
| Buzzer Alarm | - | |
| Battery Power Operation | - | |
| LED Indicators | - | |
| Z-Axis Input | V | |
| Power Source | AC 100/120/220/230V ±10% | |
