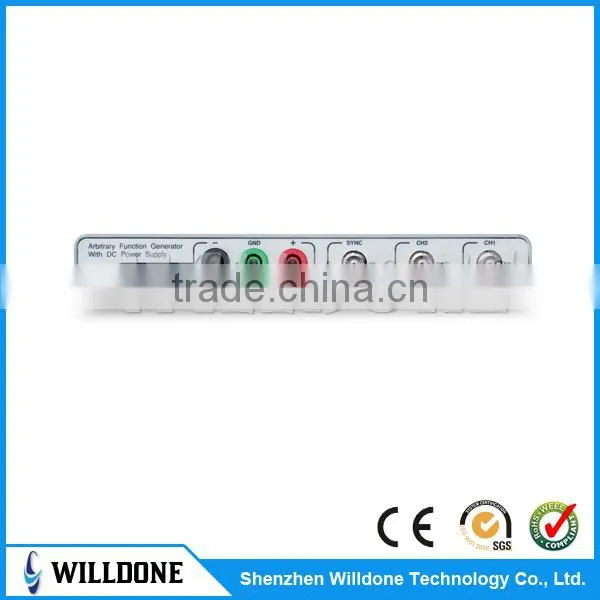

USB Arbitrary Function Generator, AFG-200/100

USB Arbitrary Function Generator, AFG-200/100 thumbnail-1
USB Arbitrary Function Generator, AFG-200/100 thumbnail-2
USB Arbitrary Function Generator, AFG-200/100 thumbnail-3
USB Arbitrary Function Generator, AFG-200/100 thumbnail-4
USB Arbitrary Function Generator, AFG-200/100 photo-1

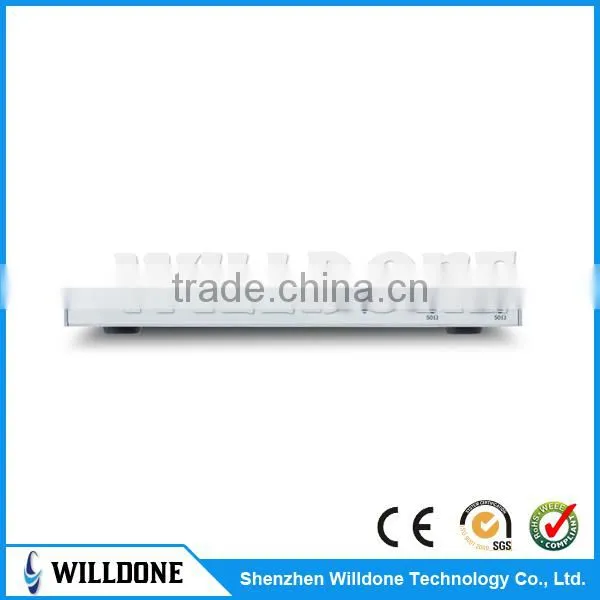

USB Arbitrary Function Generator, AFG-200/100 photo-2

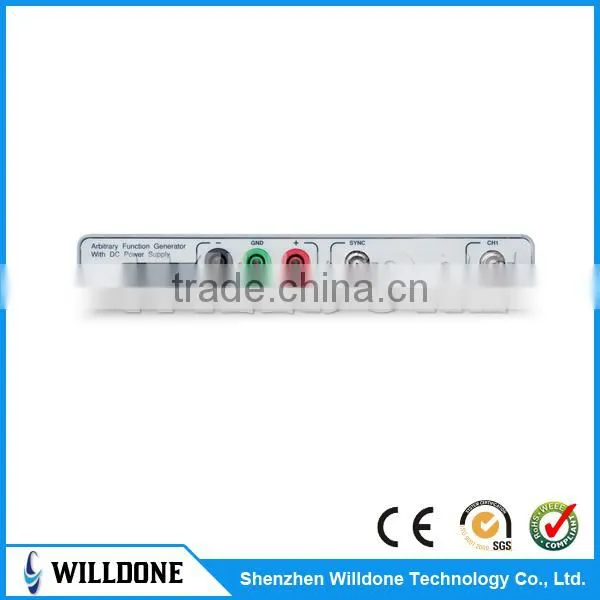

USB Arbitrary Function Generator, AFG-200/100 photo-3

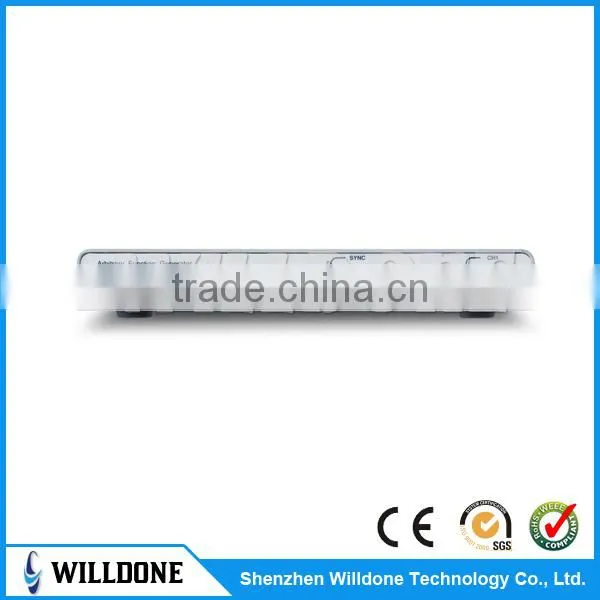

USB Arbitrary Function Generator, AFG-200/100 photo-4
US$ 1 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
GW Instek
Model Number:
AFG-200/100
Contact Supplier Request Quote Chat Now
Shenzhen Willdone Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name GW Instek
Model Number AFG-200/100
Features
  • Frequency range: 1uHz~25MHz
  • 1uHz frequency resolution
  • Built-in 120 MSa/s, 10 bit resolution and arbitrary waveform editing function with 4k point memory
  • Dual channel models support coupling, tracking, and phase functions
  • Square waveform can adjust the duty cycle from 1% to 99%.
  • Support various arbitrary waveform editing methods.
  • Built-in AM/FM/PM/FSK/SUM(AFG-225/225P) modulation, sweep and burst functions
  • USB interface signal control
  • AFG-125P/225P provide three DC power selections
MODEL NUMBER AFG-125 / AFG-125PAFG-225 / AFG-225P
OUTPUT CHANNELS 12
WAVEFORMS Sine, Square, Ramp, Pulse, Noise, ARB

ARBITRARY
FUNCTIONS

Sample Rate120 MSa/s
Repetition Rate60MHz
Waveform Length4k points
Amplitude Resolution10 bits
Non-Volatile Memory4k points

FREQUENCY
CHARACTERISTICS

RangeSine/Square1uHz~25MHz
 Ramp1uHz~1MHz
Resolution1uHz
AccuracyStability±20 ppm
Aging±1 ppm, per 1 year
Tolerance≤1 mHz

OUTPUT
CHARACTERISTICS

AmplitudeRange

GPA-501 power supply: 1mVpp to 2.5Vpp (into 50Ω), 2mVpp to 5Vpp (open-circuit)

USB power supply : 1mVpp to 2Vpp (into 50Ω), 2mVpp to 4Vpp (open-circuit)

Accuracy±2% of setting ±1 mVpp (at 1 kHz)
Resolution1mV or 3 digits
Flatness±1% (0.1dB) ≤100kHz, ±3% (0.3 dB) ≤5MHz,±5% (0.4 dB) ≤12MHz, ±10%(0.9dB) ≤25MHz(sine wave relative to 1kHz)
UnitsVpp, Vrms, dBm
OffsetRange

GPA-501 power supply: ±1.25 Vpk ac +dc (into 50Ω), ±2.5Vpk ac +dc (Open circuit)

USB power supply: ±1 Vpk ac +dc (into 50Ω),±2 Vpk ac +dc (Open circuit)

Accuracy2% of setting + 10mV+ 0.5% of amplitude
WAVEFORM OUTPUTImpedance50Ω typical (fixed), > 10MΩ (output disabled)
ProtectionShort-circuit protected. Overload relay automatically disables main output.

SINE WAVECHARACTERISTICS

Harmonic Distortion

≤-50 dBc   DC ~ 1MHz, Ampl > 1Vpp
≤-35 dBc   1MHz ~ 5MHz, Ampl > 1Vpp
≤-30 dBc   5MHz ~ 25MHz, Ampl > 1Vpp

SQUARE WAVECHARACTERISTICS

Rise/Fall Time≤10ns at maximum output. (into 50 Ω load)
Overshoot<2%
Asymmetry1% of period +5 ns
Variable duty Cycle

1.0% to 99.0% ≤100kHz
10% to 90% ≤ 1MHz
50% ≤ 25MHz

RAMPCHARACTERISTICS

Linearity< 0.1% of peak output
Variable Symmetry0% to 100% (0.1% Resolution)

PULSECHARACTERISTICS

Period40ns~2000s
Pulse Width20ns~1999.9s
Overshoot<2%
Accuracy0.1%+20ns
Jitter20ppm +10ns
AM MODULATIONCarrier WaveformsSine, Square, Ramp, Pulse, Arb
Modulating WaveformsSine, Square, Triangle, Upramp, Dnramp
Modulating Frequency2mHz to 20kHz
Depth0% to 120.0%
SourceInternal
FM MODULATIONCarrier WaveformsSine, Square, Ramp,
Modulating WaveformsSine, Square, Triangle, Upramp, Dnramp
Modulating Frequency2mHz to 20kHz
Peak DeviationDC to Max Frequency
SourceInternal
SWEEPWaveformsSine, Square, Ramp,
TypeLinear or Logarithmic
Start/Stop Freq1uHz to Max Frequency
Sweep Time1ms to 500s
SourceInternal / Manual
FSKCarrier WaveformsSine, Square, Ramp, Pulse
Modulating Waveforms50% duty cycle square
Modulation Rate2mHz to 100 kHz
Frequency Range1uHz to Max Frequency
SourceInternal
PMCarrier WaveformsSine, Square, Ramp
Modulating WaveformsSine, Square, Triangle, Upramp, Dnramp
Modulation Rate2mHz to 20kHz
Phase deviation0 to 360
SourceInternal
SUMCarrier WaveformsSine, Square, Ramp, Pulse, Noise
Modulating WaveformsSine, Square, Triangle, Upramp, Dnramp
Modulation Rate2mHz to 20kHz
SUM Depth0% to 100.0%
SourceInternal
SYNC OUTPUTTypeSync, Sweep Marker, Burst Marker or Arbitrary Waveform Marker
LevelTTL Compatible into 50Ω
AssignmentChannel 1 or Channel 2
PolarityNormal or Inverted
Fan-out≥4 TTL Load
Impedance50Ω Typical
DUAL CHANNEL FUNCTIONPhase-180 ~180 (Square and Pulse can not be change, Phase is 0°)
TrackSynchronize phase
Coupling

CH2=CH1 OR CH1=CH2
Frequency(Ratio or Difference)
Amplitude & DC Offset

BURSTWaveformsSine, Square, Ramp, Arb
Frequency1uHz~15 MHz(sine)
1uHz~15 MHz(Square)
1uHz~1 MHz (Ramp
Burst Count1 to 65535 cycles or Infinite
Start/Stop Phase-360 to +360
Internal Period1ms to 500s
Gate SourceExternal Trigger
Trigger SourceSingle or Internal Rate
TRIGGER DELAYN-Cycle, Infinite0s to 655350ns
SAVE/RECALL 10 Groups of Setting Memories
POWER OUTPUTOnly AFG-125P/AFG-225P

Output Voltage : (2.5V/3.3V/5V)±5%,
Output Current : 0.6A

INTERFACE USB (Device)
GENERAL SPECIFICATIONSPower SourceDC 5V
 Power Consumption10 W (Max)
 Operating EnvironmentTemperature to satisfy the specification : 18 ~ 28C , Operating temperature : 0 ~ 40C ,Relative Humidity: < 80%, 0 ~ 40C,Installation category: CAT II
 Operating Altitude2000 Meters
 Storage Temperature-10~70C, Humidity: ≤70%
 Dimensions (WxHxD)215(W) x 35 (H) x 107(D) mm
 WeightApprox. 1kg
