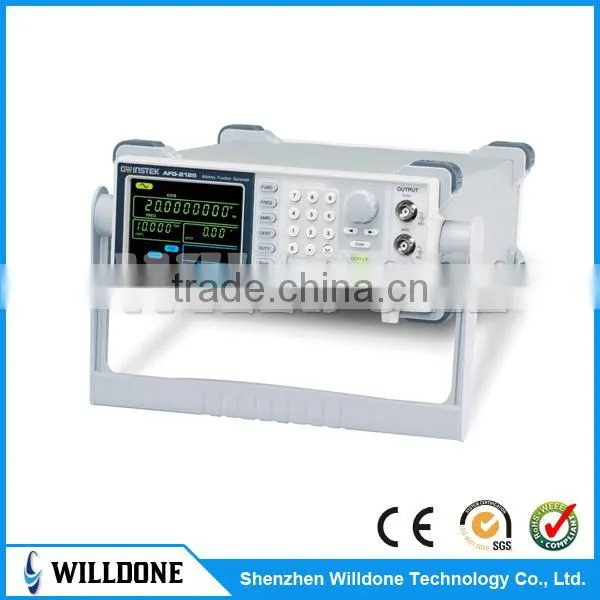

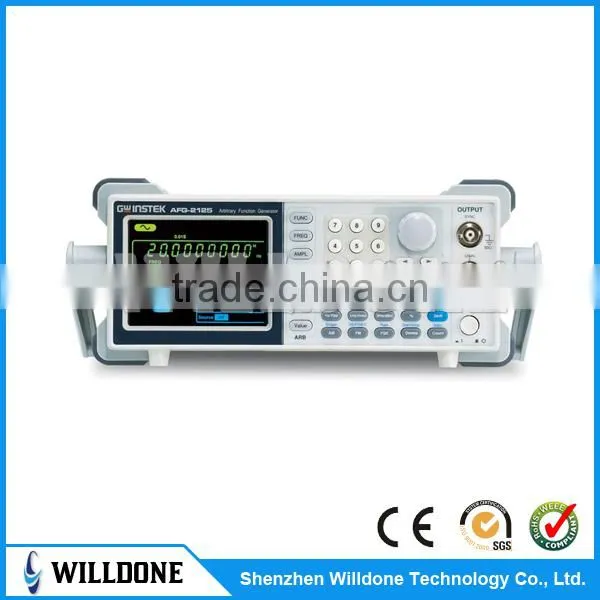

Arbitrary Function Generators AFG-2100 & AFG-2000 photo-2

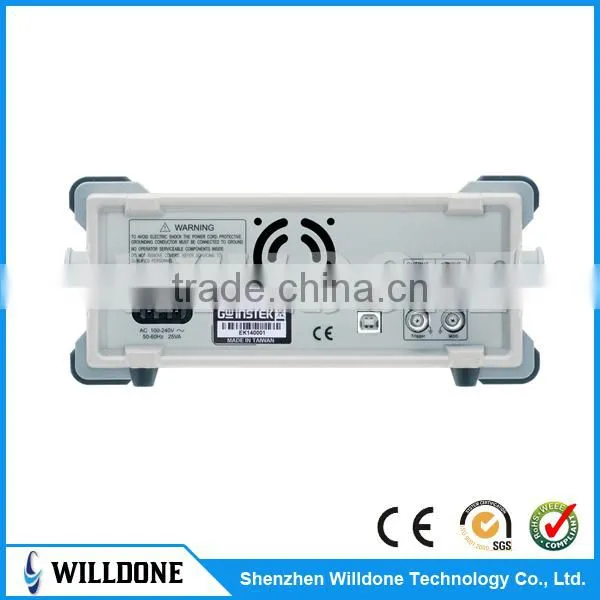

Arbitrary Function Generators AFG-2100 & AFG-2000 photo-3

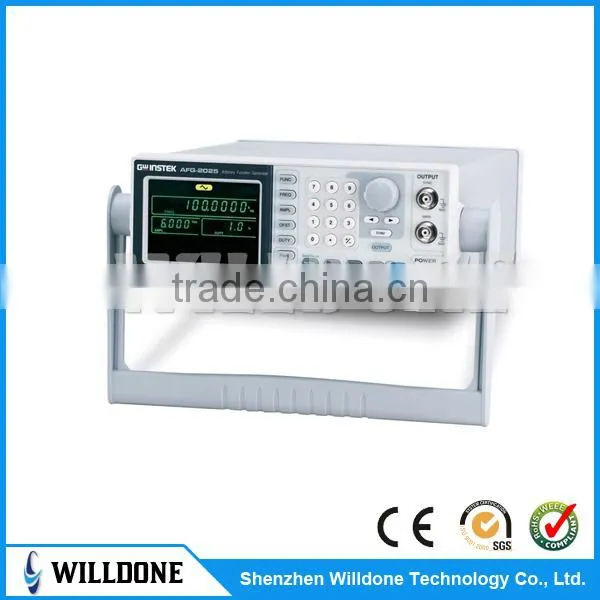

Arbitrary Function Generators AFG-2100 & AFG-2000 photo-4
US$ 1 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
GW Instek
Model Number:
AFG-2100 & AFG-2000
Contact Supplier Request Quote Chat Now
Shenzhen Willdone Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name GW Instek
Model Number AFG-2100 & AFG-2000
Features
  • 0.1Hz to 5/12/25 MHz with in 0.1Hz Resolution
  • Sine, Square, Triangular, Noise and Arbitrary Waveform
  • 20MSa/s Sampling Rate, 10 bit Vertical Resolution and 4k Point Memory for Arbitrary Waveform
  • 1% ~ 99% adjustable duty cycle for Square Waveform
  • Waveform Parameter Setting Through Numeric Keypad Entry & Knob Selection
  • Amplitude, DC Offset and Other Key Setting Information Shown on the 3.5” LCD Screen Simultaneously
  • AM/FM/FSK Modulation, Sweep, and Frequency Counter Functions (AFG-2100 only)
  • USB Device Interface for Remote Control and Waveform Editing
  • PC Arbitrary Waveform Editing Software
Models
AFG-2000 series
AFG-2100 Series
2005
2012
2025
2105
2112
2125
Waveforms


Sine, Square, Ramp, Noise, Arbitrary Waveform
Arbitrary Waveform

 Sample Rate
20 MSa/s
Repetition Rate
10MHz
Waveform Length
4k points
Amplitude Resolution
10 bit
Non-Volatile Memory
4k points
Frequency Characteristics
Range
Sine, Square
0.1Hz
|
5MHz
0.1Hz
|
12MHz
0.1Hz
|
25MHz
0.1Hz
|
5MHz
0.1Hz
|
12MHz
0.1Hz
|
25MHz
Ramp
0.1Hz ~ 1MHz
Resolution
Sine, Square, Ramp
0.1Hz
Accuracy
Stability
±20 ppm
Aging
±1 ppm, per 1 year
Tolerance
 1 mHz
Output Characteristics
Amplitude
Range
1 mVpp to 10 Vpp( into 50Ω), 0.1Hz~20MHz
2 mVpp to 20 Vpp(open-circuit) , 0.1Hz~20MHz
1 mVpp to 5 Vpp( into 50Ω), 20MHz~25MHz
2 mVpp to 10 Vpp(open-circuit), 20MHz~25MHz
Accuracy
± 2% of setting ±1 mVpp (at 1 kHz,>10 mVpp)
Resolution
1 mV or 3 digits
Flatness
± 1%  (0.1dB)  100kHz
± 3% (0.3 dB)   5MHz
± 4% (0.4 dB)   12MHz
± 20% (2 dB)   20MHz
± 5% (0.4 dB)   25MHz
(sine wave relative to 1 kHz)
Units
Vpp, Vrms, dBm
Offset
Range
±5 Vpk ac +dc (into 50Ω)
±10Vpk ac +dc (Open circuit)
±2.5 Vpk ac +dc (into 50Ω) for 20MHz-25MHz
±5Vpk ac +dc (Open circuit) for 20MHz-25MHz
Accuracy
2% of setting + 5 mV+ 0.5% of amplitude
Output
Impedance
50Ω typical (fixed) > 300kΩ (output disabled)
Protection (main output)
Short-circuit protected by overload relay automatically disables output
SYNC Output


Level
TTL-compatible into>1kΩ
Impedance
50Ω nominal
Rise or Fall Time
25ns
Sine wave Characteristics Harmonic Distortion
–55 dBc DC ~ 200kHz, Ampl > 0.1Vpp
–50 dBc 200kHz ~ 1MHz, Ampl > 0.1Vpp
–35 dBc 1MHz ~ 5MHz, Ampl > 0.1Vpp
–30 dBc 5MHz ~ 25MHz, Ampl > 0.1Vpp
Square wave
Characteristics
 Rise/Fall Time
25ns at maximum output (into 50Ωload)
Overshoot < 5%
Asymmetry 1% of period+1 ns
Variable Duty Cycle
1.0% to 99.0%   100kHz
20.0% to 80.0%  5 MHz
40.0% to 60.0% 10MHz                                                                                                  50%            25MHz
Ramp Characteristics Linearity
< 0.1% of peak output
Variable Symmetry 0% to 100%(0.1% Resolution)
