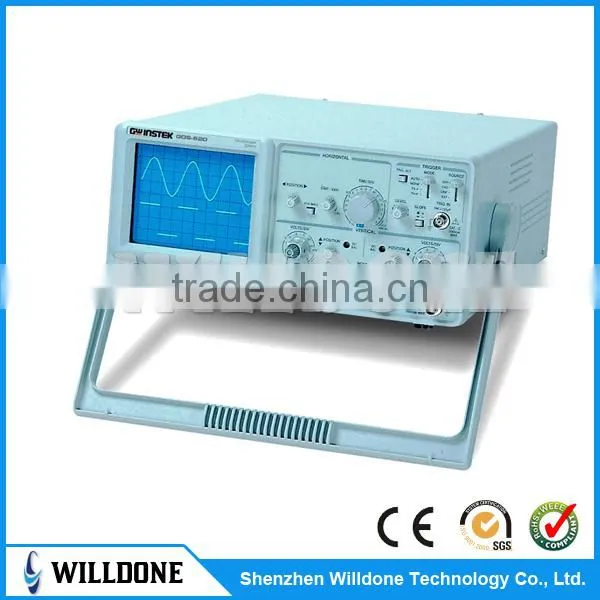

Analog Oscilloscopes GOS-630 & GOS-620
US$ 1 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
GW Instek
Model Number:
GOS-630 & GOS-620
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Analog Oscilloscopes GOS-6100US$ 1 - 1,000MOQ: 1 Piece -
DDS Function Generators SFG-2100 & SFG-2000US$ 1 - 1,000MOQ: 1 Piece
-
Arbitrary Function Generators AFG-3000US$ 1 - 1,000MOQ: 1 Piece
-
Analog Oscilloscopes GOS-6000US$ 1 - 1,000MOQ: 1 Piece
-
Analog OscilloscopesGOS-620FGUS$ 1 - 1,000MOQ: 1 Piece
Place of Origin
Taiwan, China
Brand Name
GW Instek
Model Number
GOS-630 & GOS-620
Features
- 30/20MHz Bandwidth, Dual Channel
- High Sensitivity 1mV/div
- TV Synchronization
- Z-Axis Input
- ALT Triggering Function
- CH1 Output
The GOS-620 and GOS-630 Analog Oscilloscope delivers the most economic solution for measurement demand. Offering 1mV ~ 5V vertical sensitivity, 0.2s/div ~ 0.5s/div sweep time, and useful Auto/Norm/TV-V/TV-H trigger modes, the GOS-620 is the best economic choice for education, production lines, and repair service application at a reasonable price.
| GOS-630 | GOS-620 | |
| Digital / Analog | Analog | |
| Display | 6" CRT | |
| Bandwidth (MHz) | 30 | 20 |
| Number of Channel | 2 | 2 |
| Vertical Sensitivity | 1mV ~ 5V | |
| Time Base Range | 0.2μs ~ 0.5s | |
| Input Impedance Selection | 1MΩ | |
| Auto Measurement | - | |
| Waveform Memory | - | |
| Panel Setup Memory | - | |
| Auto-Set | - | |
| Auto/Normal Trigger | V | |
| ALT Trigger | V | |
| TV Trigger | V | |
| Cursor Readout | - | |
| XY Mode | V | |
| Zoom | - | |
| Counter Function | - | |
| Function Generator | - | |
| Interface | - | |
| Buzzer Alarm | - | |
| Battery Power Operation | - | |
| LED Indicators | - | |
| Z-Axis Input | V | |
| Power Source | AC 115/230V ±15% | |
