YUMO LM30 inductive position proximity sensor

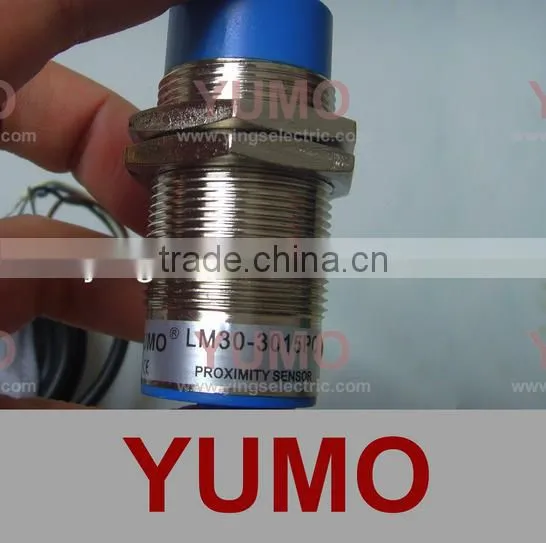

LM30-3015PC Proximity sensor PNP NO+NC range 15mm
| Structural category | Cylinder type | |||||
| Outward appearance code | LM18 | LM22 | LM30 | |||
| Outward appearance illustration | ||||||
| Flush | Detection distance | 5mm | 7mm | 10mm | ||
| DC 6~ 36 VDC | NPN | NO | LM18-3005NA | LM22-3007NA | LM30-3010NA | |
| NC | LM18-3005NB | LM22-3007NB | LM30-3010NB | |||
| NO+NC | LM18-3005NC | LM22-3007NC | LM30-3010NC | |||
| PNP | NO | LM18-3005PA | LM22-3007PA | LM30-3010PA | ||
| NC | LM18-3005PB | LM22-3007PB | LM30-3010PB | |||
| NO+NC | LM18-3005PC | LM22-3007PC | LM30-3010PC | |||
| Two wire system | NO | LM18-3005LA | LM22-3007LA | LM30-3010LA | ||
| NC | LM18 -3005LB | LM22 -3007LB | LM30 -3010LB | |||
| AC 90~ 250 VAC | SCR Controllable silicon | NO | LM18 -2005A | LM22 -2007A | LM30 -2010A | |
| NC | LM18-2005B | LM22-2007B | LM30-2010B | |||
| NO+NC | LM18 -2005C | LM22 -2007C | LM30 -2010C | |||
| Relay output | - | - | LM30-2010JC | |||
| Non-flush | Detection distance | 8mm | 10mm | 15mm | ||
| DC 6~ 36 VDC | NPN | NO | LM18-3008NA | LM22-3010NA | LM30-3015NA | |
| NC | LM18-3008NB | LM22-3010NB | LM30-3015NB | |||
| NO+NC | LM18-3008NC | LM22-3010NC | LM30-3015NC | |||
| PNP | NO | LM18-3008PA | LM22-3010PA | LM30-3015PA | ||
| NC | LM18-3008PB | LM22-3010PB | LM30-3015PB | |||
| NO+NC | LM18-3008PC | LM22-3010PC | LM30-3015PC | |||
| Two wire system | NO | LM18-3008LA | LM22-3010LA | LM30-3015LA | ||
| NC | LM18 -3008LB | LM22 -3010LB | LM30 -3015LB | |||
| AC 90~ 250 VAC | SCR Controllable silicon | NO | LM18 -2008A | LM22 -2010A | LM30 -2015A | |
| NC | LM18-2008B | LM22-2010B | LM30-2015B | |||
| NO+NC | LM18 -2008C | LM22 -2010C | LM30 -2015C | |||
| Relay output | - | - | LM30-2015JC | |||
| Control output | DC | 200mA | 200mA | 200mA | ||
| SCR/Relay | 300mA | 300mA/ 1A | ||||
| Output voltage dropDC/AC | DC>3V , AC<10V | |||||
| Consumption current | DC<15mA , AC<10mA | |||||
| Standard detected object | 18×18×1(A3 iron) | 22×22×1(A3 iron) | 30×30×1(A3 iron) | |||
| Repeated precision | 0.02 | 0.05 | 0.05 | |||
| DC/AC Response frequency | 200Hz/25Hz | 200Hz/15Hz | 200Hz/15Hz | |||
| Working environment temperature | -25 °C ~ + 75 °C | |||||
| Insulation resistance | 50MΩ | 50MΩ | 50MΩ | |||
| Shell material | Metal | Metal | Metal | |||
| Protection grade | IP67 | |||||
| Altemative mode at home and abroad | LJ 18A 3-8- | LJ 22A - - | E2E-X 18M | |||
YUMO LM30 inductive position proximity sensor YUMO LM30 inductive position proximity sensor YUMO LM30 inductive position proximity sensor YUMO LM30 inductive position proximity sensor YUMO LM30 inductive position proximity sensor YUMO LM30 inductive position proximity sensor
