Home > Products > Other Products > YUMO XYK-114 pressure switch
YUMO XYK-114 pressure switch
- 10000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | YUMO | Model Number: | XYK-114 |
Max. Current: | 6A | Max. Voltage: | 120/240VAC, 375VA,24V | Max. Working Pressure: | 300Psi |
Product Description
YUMO XYK-114 pressure switch
Specifications
Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: YNC Model Number: XYK-114
Max. Current: 6A Max.
1. Good quality
2. Fast delivery time
3.hot sale
4.moderate price
pressure switch,air pressure switch,air compressor pressure switch,pump pressure switch,water pressure switch,low pressure switc
pressure switch,air pressure switch,air compressor pressure switch,pump pressure switch,water pressure switch,low pressure switch,oil pressure switch,a/c pressure switch,differential pressure switch,water pump pressure switch
1. Automatic Reset Pressure switch designed. 2. Wide range of pressure settings & meet a board variety of application. 3. Used: Pressure controlling of Air, Water, Internal wiring of electric refrigerating equipment or room cooler units or remote outdoor condensing units for domestic cooling systems. 4. Typical Applications: safety controls / air conditioning / refrigeration.
Model | XYK-114 |
Media | Air, Water, motor oils, transmission oils, Hydrocarbon Media, Refrigeration fluid |
Pressure Set Point | actuation from 0.2 to 20 Bar |
Max Operating Pressure | 25 Bar for actuation up to 10 Bar 35 Bar for actuation from 10-20 Bar |
Proof Pressure | 35 Bar for actuation up to 10 Bar 55 Bar for actuation from 10-20 Bar |
Operating Temperature Range | -30? C to ~ 80? C |
Switch Type | Direct action, blade contact, SPST NC, NO |
Electric Rating | 120/240VAC, 375VA 24VAC/DC, 2A |
Dielectric Strength | 750 Vrms across open contacts 1550 Vrms terminals to fitting |
Electric Connection | wire(lenth is optional) |
Life at Related Load | 100,000 cycles |
Connection | 1/8NPT, G1/8", 1/4NPT, G1/4" |
Options | various connector thread sizes |

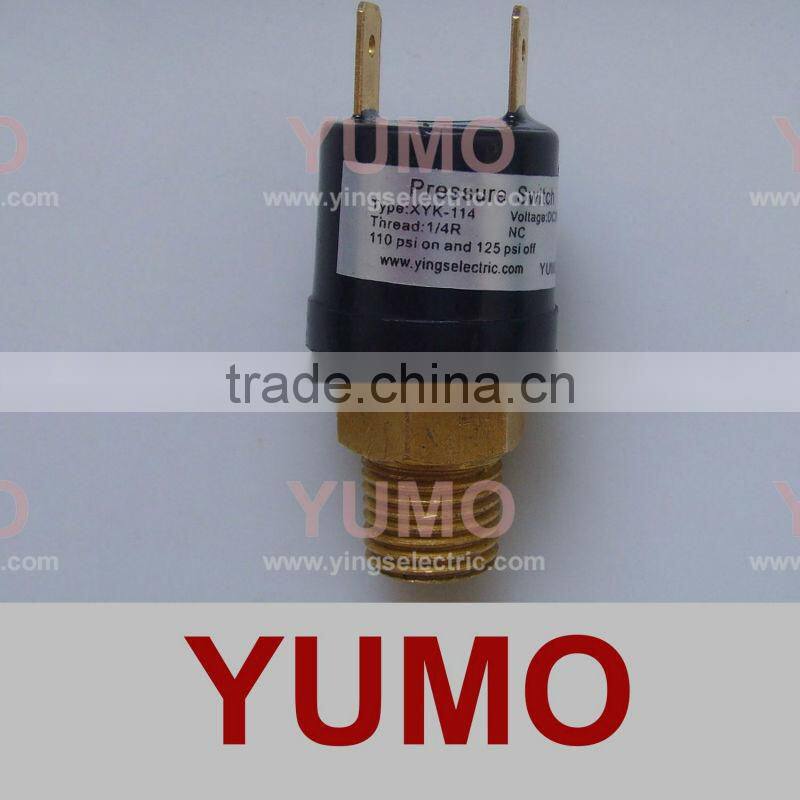

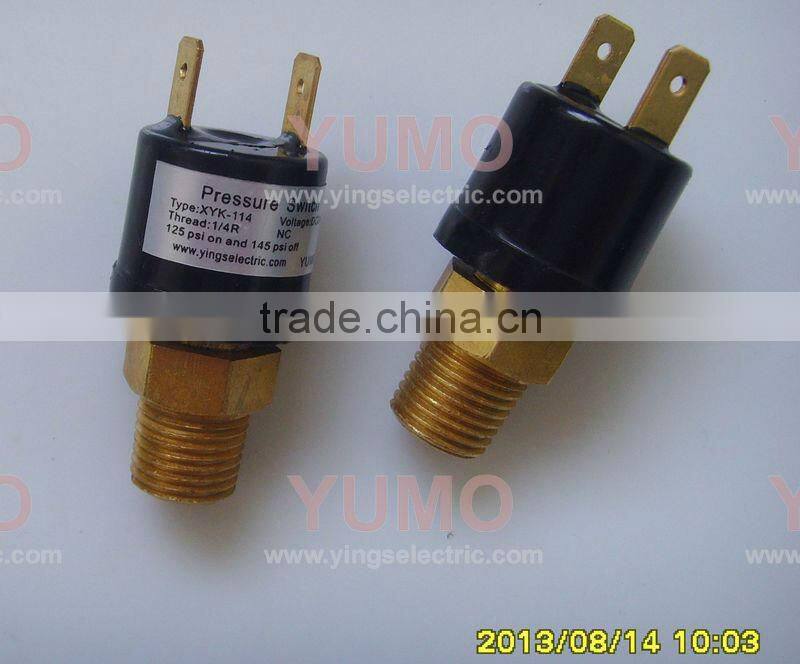

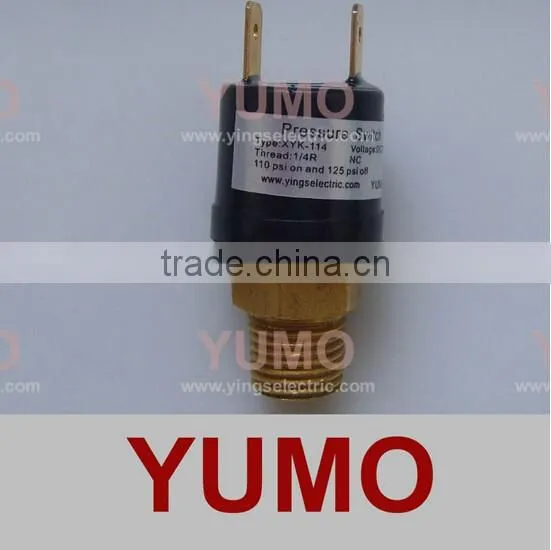

Photos of the product:
YUMO XYK-114 pressure switch YUMO XYK-114 pressure switch YUMO XYK-114 pressure switch YUMO XYK-114 pressure switch YUMO XYK-114 pressure switch YUMO XYK-114 pressure switch YUMO XYK-114 pressure switch YUMO XYK-114 pressure switch YUMO XYK-114 pressure switch
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
