Home > Electrical & Electronics > Electric Motor > AC Motor > IEC Standard UL Certified Small Three Phase Electric Motor

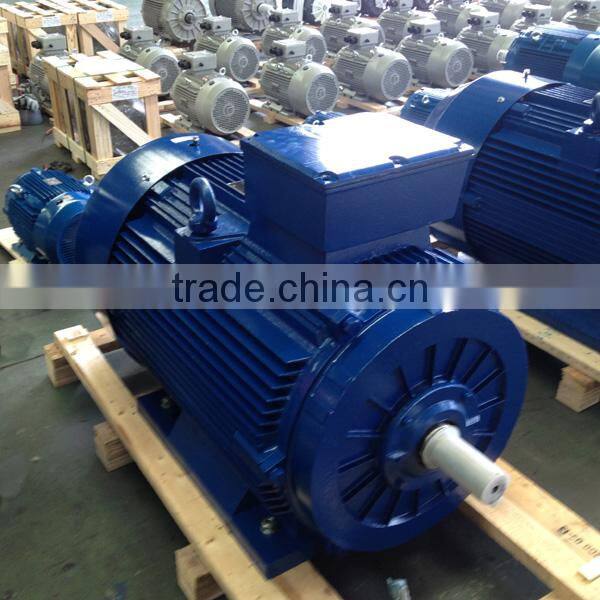

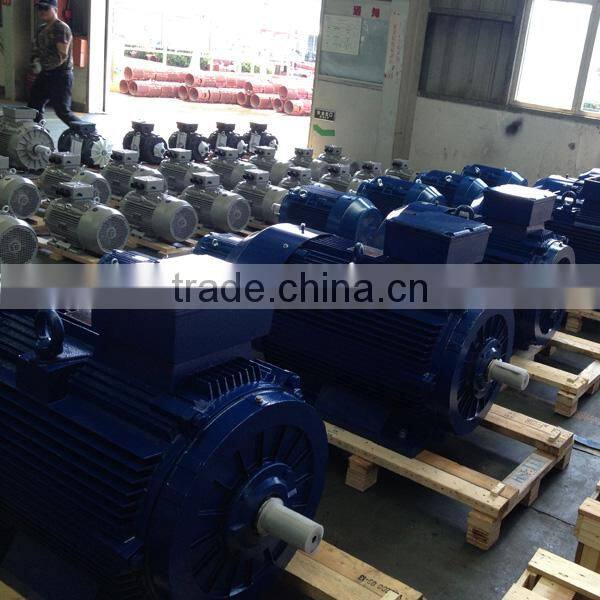

IEC Standard UL Certified Small Three Phase Electric Motor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HALOTOP
Model Number:
315
Type:
Asynchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
China Sea Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NEMA Standard Premium Efficiency Cast Iron Three Phase Electric MotorNegotiableMOQ: 1 -
IEC Standard CE Certified High Efficiency Three Phase Electric MotorNegotiableMOQ: 1
-
IE3 Standard Energy Saving High Starting Torque Three Phase Electric MotorNegotiableMOQ: 1
-
NEMA Standard TEFC Ball Bearing IP55 Protection Three Phase Electric MotorNegotiableMOQ: 1
-
UL Approved IE2 Synchronous Speed Cast Iron Three Phase Electric MotorNegotiableMOQ: 1 Set
Brand Name
HALOTOP
Model Number
315
Type
Asynchronous Motor
Frequency
50hz
Output Power
110-315KW
Protect Feature
Totally Enclosed
Phase
Three-phase
Certification
CE, UL
AC Voltage
Other, 220--660v
Place of Origin
Shanghai, China
Efficiency
IE 2
Specifications
1.IEC standard small Three phase electric motor2.UL Certified
3.Cast Iron Motor
4. Power:110-315kw
IEC Standard UL Certified Small Three Phase Electric Motor
| Features |
| 1.Energy saving, high efficiency |
| 2.High starting torqaue,lower starting current |
| 3.Versatile design(easy to modify for varieties of application |
| 4.Option of integrated or removable foot |
| 5.Option of aluminum housing up to frame size 200 |
| 6.Option of terminal box location(top, left or right) |
| Applications |
| 1.Pumps |
| 2.Waste water treatment plant |
| 3.Air compressors, fans |
| 4.Gear reducers and power transmission |
| 5.Pulp and paper mill |
| 6.Steel mill |
| 7.Conveyors, elevators |
| 8.Should be "Material handling equipments" |
| 9.Agricultural applications |
| 10.Mining equipment |
| 11.Hydraulic equipments |
| Model | Power (KW) |
Full Load Speed (r/min) |
Inl400V (A) |
Ifl400V (A) |
Ist/In (Times) |
Eff. 100%FL (%) |
Power Factor (Cosφ) |
Full Load Torque (N.M) |
Tst/Tn (Times) |
Tmin/Tn (Times) |
Tmax/Tn (Times) |
| 315S-2 | 110 | 2940 | 62.3 | 187.08 | 7.7 | 94.3 | 0.90 | 357.29 | 2 | 1.8 | 2.3 |
| 315M-2 | 132 | 2940 | 70.29 | 221.33 | 7.6 | 94.6 | 0.91 | 428.74 | 2 | 1.8 | 2.3 |
| 315L1-2 | 160 | 2945 | 90.14 | 270.68 | 7.8 | 94.8 | 0.90 | 518.81 | 2 | 1.8 | 2.3 |
| 315L2-2 | 200 | 2945 | 118.82 | 341.44 | 7.9 | 95 | 0.89 | 648.51 | 2 | 1.8 | 2.3 |
| 355M-2 | 250 | 2945 | 140.54 | 422.05 | 7.8 | 95 | 0.90 | 810.64 | 2 | 1.8 | 2.3 |
| 355L-2 | 315 | 2945 | 187.14 | 537.76 | 7.8 | 95 | 0.89 | 1021.4 | 2 | 1.8 | 2.3 |
