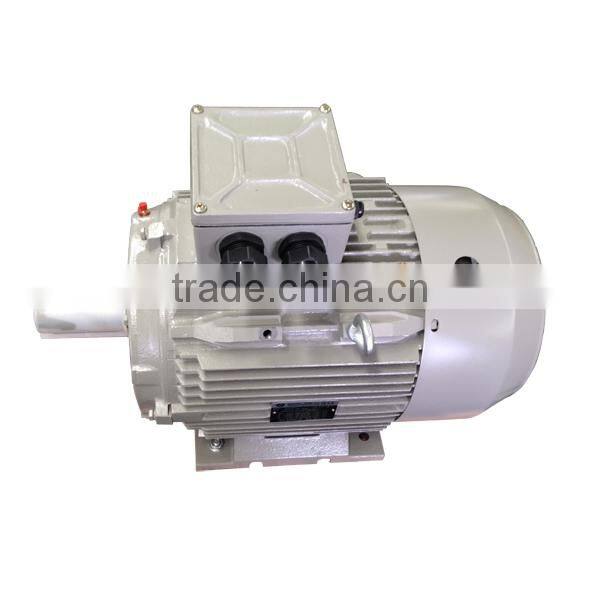

UL Approved IE2 Synchronous Speed Cast Iron Three Phase Electric Motor
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HALOTOP Motor
Model Number:
4 Pole T2C Motor
Type:
Asynchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
China Sea Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IE2 Standard Synchronous Speed Cast Iron Three Phase Electric MotorNegotiableMOQ: 1 Set -
IE2 Standard High Efficiency Cast Iron Three Phase Electric Motor T2C 280S 4NegotiableMOQ: 1 Set
-
IE3 Standard High Efficiency Cast Iron Three Phase Electric Motor T3C 160L 2NegotiableMOQ: 1 Set
-
6 Pole IE2 Standard Synchronous Speed Cast Iron Three Phase Electric MotorNegotiableMOQ: 1 Set
-
IE Standard Single Phase Capacitor Start and Capacitor Run Asynchronius Motors ML90L 4NegotiableMOQ: 1 Set
Brand Name
HALOTOP Motor
Model Number
4 Pole T2C Motor
Type
Asynchronous Motor
Frequency
50HZ Motor
Output Power
160-315KW Motor
Protect Feature
Totally Enclosed
Phase
Three-phase
Certification
CE, UL
AC Voltage
Other, 400V
Place of Origin
Shanghai, China
Efficiency
IE 2
Specifications
1. IE2 Standard Three Phase Electric Motor2.UL CE Certified Motor
3.Synchronous Speed Motor
4.Cast Iron Motor
UL Approved IE2 Synchronous Speed Cast Iron Three Phase Electric Motor
| Features |
| 1.Energy saving, high efficiency |
| 2.High starting torqaue,lower starting current |
| 3.Versatile design(easy to modify for varieties of application |
| 4.Option of integrated or removable foot |
| 5.Option of aluminum housing up to frame size 200 |
| 6.Option of terminal box location(top, left or right) |
| Applications |
| 1.Pumps |
| 2.Waste water treatment plant |
| 3.Air compressors, fans |
| 4.Gear reducers and power transmission |
| 5.Pulp and paper mill |
| 6.Steel mill |
| 7.Conveyors, elevators |
| 8.Should be "Material handling equipments" |
| 9.Agricultural applications |
| 10.Mining equipment |
| 11.Hydraulic equipments |
| 4 Pole-1500 rpm Synchronous Speed 50Hz | |||||||||||
| Model | Power (KW) | Full Load Speed (r/min) | Inl400V (A) | Ifl400V (A) | Ist/In (Times) | Eff. 100%FL (%) | Power Factor (Cosφ) | Full Load Torque (N.M) | Tst/Tn (Times) | Tmin/Tn (Times) | Tmax/Tn (Times) |
| 315L1-4 | 160 | 1480 | 84.93 | 267.43 | 7.9 | 94.9 | 0.91 | 1032.4 | 2 | 1.8 | 2.3 |
| 315L2-4 | 200 | 1480 | 112.32 | 337.29 | 7.7 | 95.1 | 0.9 | 1290.5 | 2 | 1.8 | 2.3 |
| 355M-4 | 250 | 1480 | 148.36 | 426.35 | 7.9 | 95.1 | 0.89 | 1613.1 | 2 | 1.8 | 2.3 |
| 355L-4 | 315 | 1480 | 176.9 | 531.23 | 7.8 | 95.1 | 0.9 | 2032.5 | 2 | 1.8 | 2.3 |
