NEMA Standard Premium Efficiency Cast Iron Three Phase Electric Motor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HALOTOP
Model Number:
365
Type:
Asynchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
China Sea Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IEC Standard CE Certified High Efficiency Three Phase Electric MotorNegotiableMOQ: 1 -
IE3 Standard Energy Saving High Starting Torque Three Phase Electric MotorNegotiableMOQ: 1
-
NEMA Standard TEFC Ball Bearing IP55 Protection Three Phase Electric MotorNegotiableMOQ: 1
-
UL Approved IE2 Synchronous Speed Cast Iron Three Phase Electric MotorNegotiableMOQ: 1 Set
-
IE2 Standard Synchronous Speed Cast Iron Three Phase Electric MotorNegotiableMOQ: 1 Set
Brand Name
HALOTOP
Model Number
365
Type
Asynchronous Motor
Frequency
60hz
Output Power
75HP
Protect Feature
Totally Enclosed
Phase
Three-phase
Certification
CE
AC Voltage
Other, 220--575V
Place of Origin
Shanghai, China
Efficiency
Other, Premium Efficiency
Specifications
1. NEMA Standard Three Phase Electric Motor2.CE Certified
3.Premium Efficiency
4.Cast Iron Motor

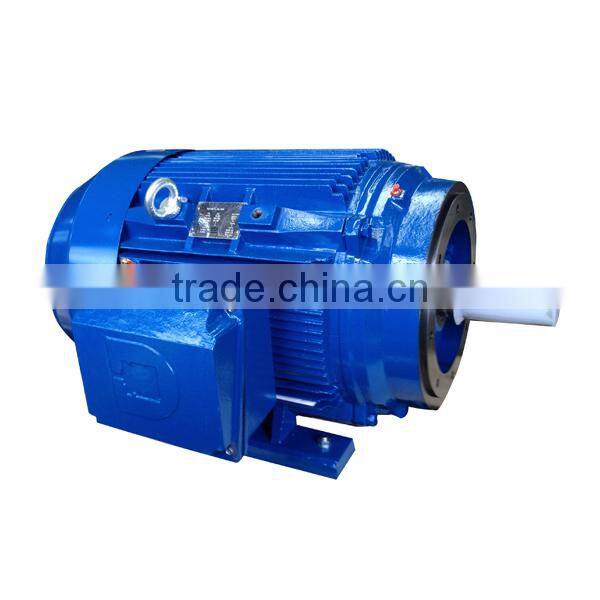

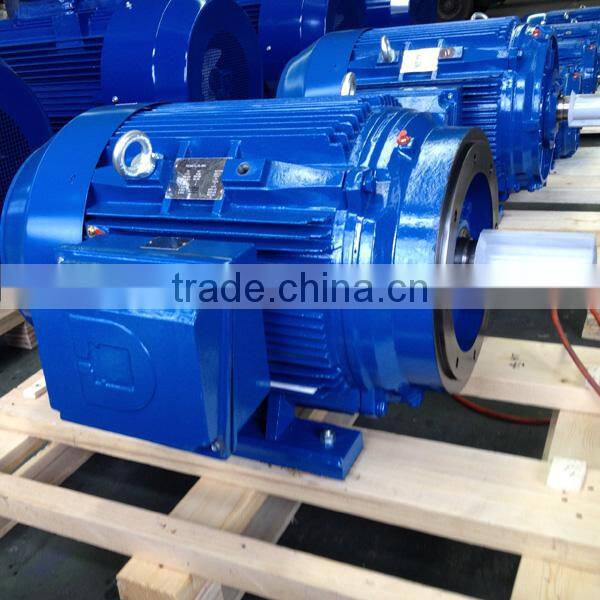

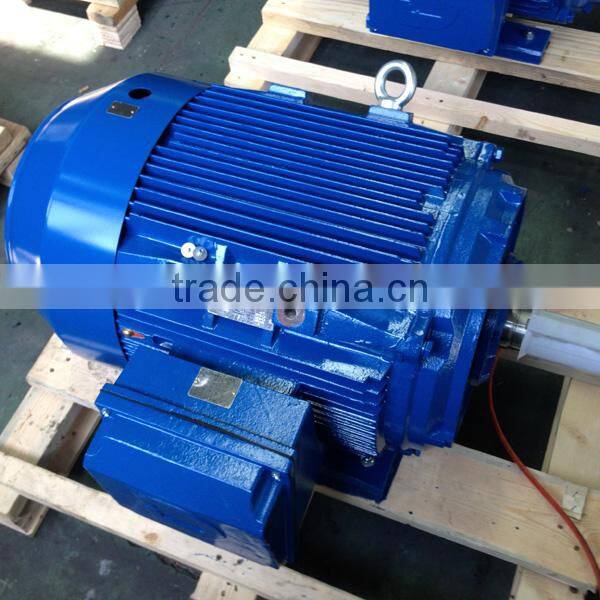

NEMA Standard Premium Efficiency Cast Iron Three Phase Electric Motor
| Features |
| 1.208-230/460V/60HZ or 575/60HZ |
| 2.NEMA Service Facotr 1.15/1.25 |
| 3.Continuous Duty 40°C Ambient |
| 4.TEFC (Total Enclosed Fan Cooled) |
| 5.Cast Iron Frame |
| 6.Ball Bearings |
| Applications |
| 1.Pumps |
| 2.Compressors |
| 3.Fans |
| 4.Machine Tools |
| 5.Energy Saving Application |
| 6.Other General Purpose Three Applications |
| HP | Full Load Speed (r/min) |
NEMA Frame |
Current | Eff. 100%FL (%) |
Power Factor (Cosφ) |
Full Load Torque LB-FT |
Locked Rotor |
Tst/Tn (Times) |
Tmin/Tn (Times) |
Tmax/Tn (Times) |
Service Factor |
|||
| Output (KW) |
Inl575V (A) |
Ifl575V (A) |
KVA Code |
Ist/In (Times) |
||||||||||
| 75 | 3560 | 365TS | 56.25 | 18.64 | 65.3 | 93 | 0.93 | 111.29 | H | 8 | 2.3 | 1.9 | 2.7 | 1.15 |
| 1745 | 365T | 56.25 | 34.81 | 75.03 | 94.1 | 0.80 | 227.04 | H | 7 | 2.3 | 2 | 2.8 | 1.15 | |
| 1155 | 405T | 56.25 | 27.4 | 70.17 | 93.6 | 0.86 | 342.92 | H | 7.2 | 2.3 | 2 | 2.8 | 1.15 | |
