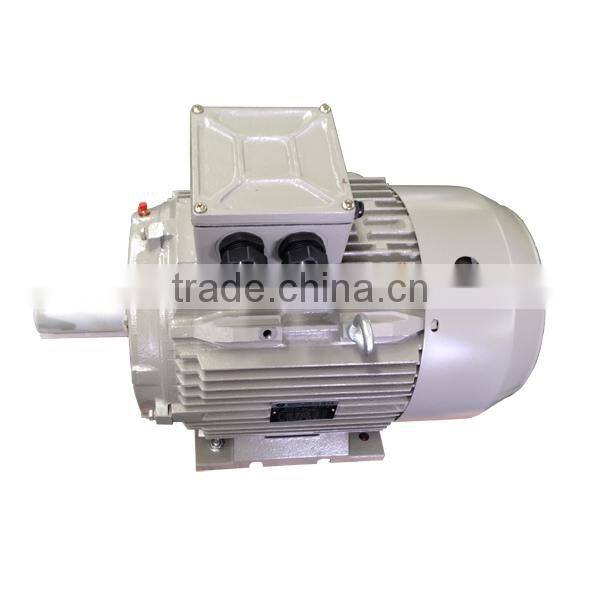

IEC Standard Small 3 Phase Electric Motor

IEC Standard Small 3 Phase Electric Motor thumbnail-1
IEC Standard Small 3 Phase Electric Motor photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HALOTOP
Model Number:
160M
Type:
Asynchronous Motor
Contact Supplier Request Quote Chat Now
Shanghai Halotop Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China sea port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HALOTOP
Model Number 160M
Type Asynchronous Motor
Frequency 50hz/60hz
Output Power 0.75-15KW
Protect Feature Totally Enclosed
Phase Three-phase
Certification CE, UL
AC Voltage Other, 220--660v
Place of Origin Shanghai, China
Efficiency IE 2

Specifications

1.IEC standard small 3 phase electric motor
2.Cast Iron Motor
3. Power: 3HP ~ 330HP

ortIEC standard small 3 phase electric motor



Features
Energy saving, high efficiency
High starting torqaue,lower starting current
Versatile design(easy to modify for varieties of application
Option of integrated or removable foot
Option of aluminum housing up to frame size 200
Option of terminal box location(top, left or right)

Applications
Pumps
Waste water treatment plant
Air compressors, fans
Gear reducers and power transmission
Pulp and paper mill
Steel mill
Conveyors, elevators
Material handling equipments
Agricultural applications
Hydraulic equipments





Model Power
(KW)		 Full Load Speed
(r/min)		 Inl400V
(A)
 		Ifl400V
(A)
 		Ist/In
(Times) 		Eff.
100%FL
(%)		 Power Factor
(Cosφ)		 Full Load Torque
(N.M)		 Tst/Tn
(Times) 		Tmin/Tn
(Times) 		Tmax/Tn
(Times)
801-2 0.75 2848 0.96 1.86 6 77.4 0.75 2.51 2.7 2.1 2.8
802-2 1.1 2846 1.2 2.52 6.7 79.6 0.79 3.69 2.7 2.1 2.9
90S-2 1.5 2852 1.32 3.17 6.1 81.3 0.84 5.02 2.3 2 2.7
90L-2 2.2 2845 1.89 4.54 7 83.2 0.84 7.38 2.6 2.1 2.7
100L-2 3 2851 2 5.75 7.6 84.6 0.89 10.05 2.5 2 2.8
112M-2 4 2910 2.63 7.56 7.8 85.8 0.89 13.13 2.5 2 2.7
132S1-2 5.5 2905 3.57 10.25 7.8 87 0.89 18.08 2.4 2 2.9
132S2-2 7.5 2910 5.06 13.96 7.9 88.1 0.88 24.61 2.7 2 2.8
160M1-2 11 2920 6.57 19.73 7.9 89.4 0.9 35.97 2.2 2.1 3
160M2-2 15 2918 8.37 26.35 7.9 90.3 0.91 49.09 2.3 2.1 3





IEC Standard Small 3 Phase Electric MotorIEC Standard Small 3 Phase Electric MotorIEC Standard Small 3 Phase Electric MotorIEC Standard Small 3 Phase Electric Motor
