Water Cooled Diesel Trailer Light Tower Generator

Name: Water Cooled Diesel Trailer Light Tower Generator
Brand: HALOTOP
SKU: 141199448
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

HALOTOP

Model Number:

4TN4000

Shanghai Halotop Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China sea port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name HALOTOP

Model Number 4TN4000

Output Type AC Single Phase

Speed 1500/1800RPM

Frequency 50/60HZ

Rated Power 3KVA

Rated Voltage 220V

Rated Current 17A

Specifications

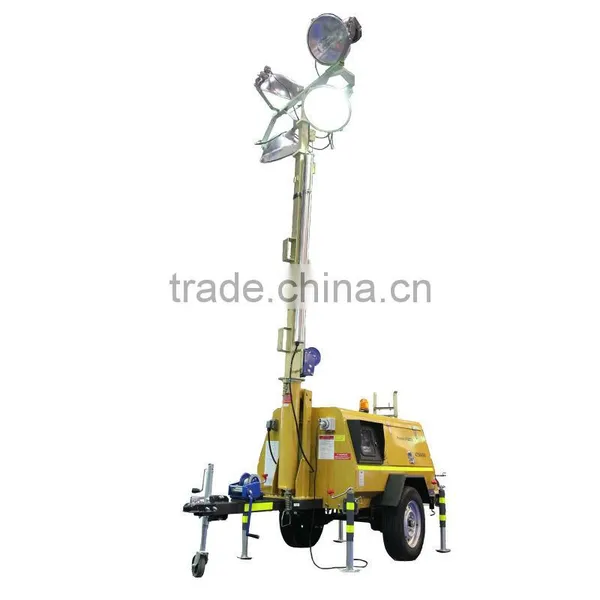

Trailer light tower generator:
1. 4*1000w metal halide,
2. Kobota diesel engine,
3. Water cooled

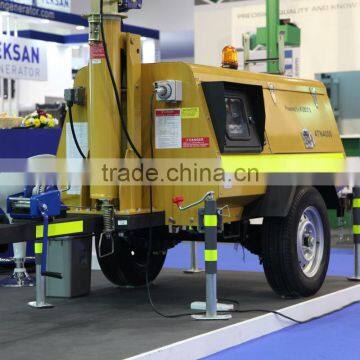

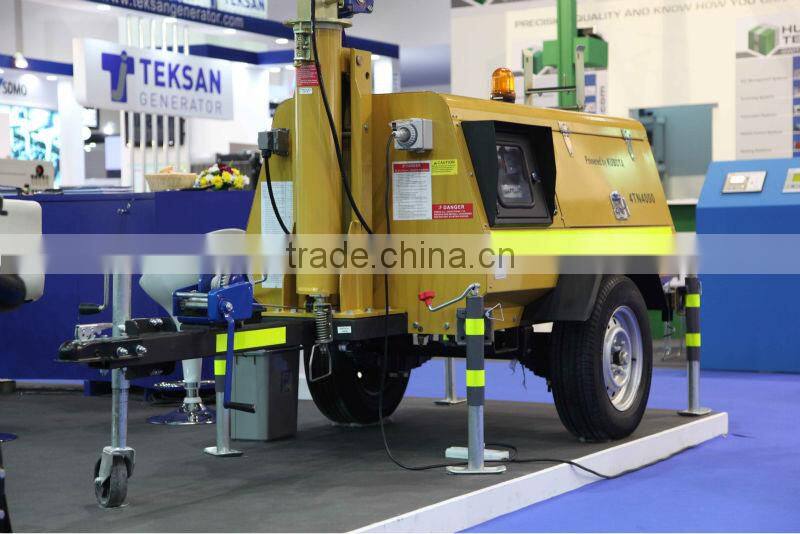

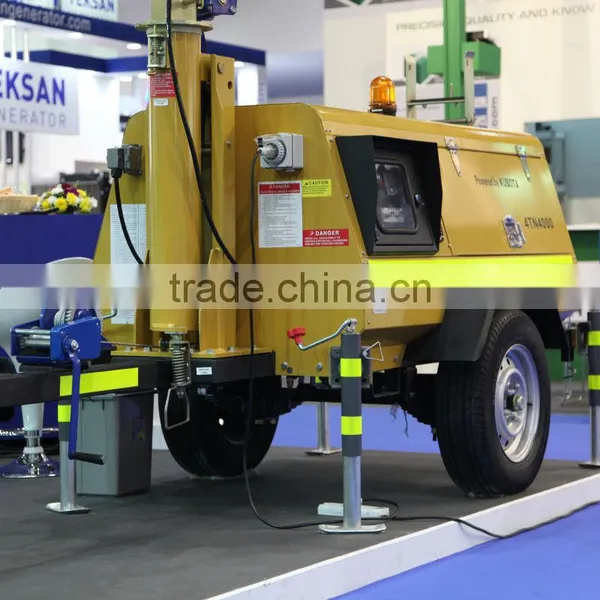

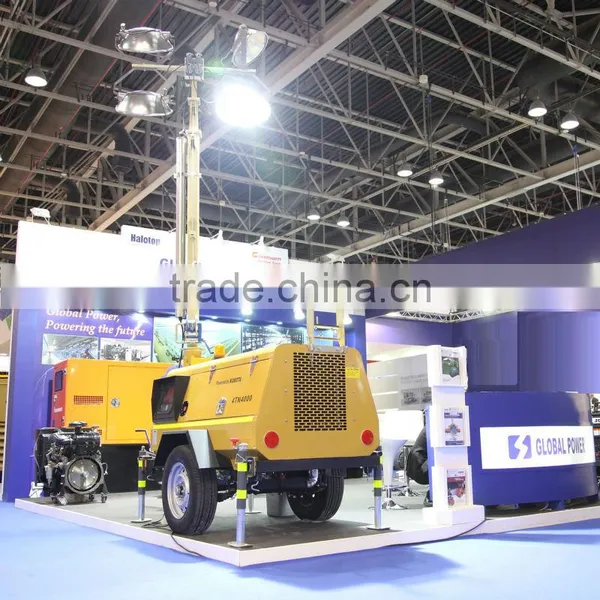

Water cooled diesel trailer light tower generator

Product Description

Standard equipment	4TN400		4TN6000
Length (mm)	4360
Width (mm)	1430
Height (mm)	1450
Height( Mast be extended fully,m)	9
Weight ( Dry,kg)	890		890
Engine model	D1105-BG/D905-BG(Kubota)		D1105-BG/D905-BG(Kubota)
Frequency(Hz)	50	60	50	60
Speed(rpm)	1500	1800	3000	1800
Continued power(kVA)	7	9	9	11
Number of cylinders	3 cylinder
Diesel engine characters	4 Cycle, In line, water cooled diesel
Combustion type	Direct injection
Engine aspiration	Naturally aspirated
Emission level	N.A.			Tier4
Alternator	Brushless & single phase
Rating voltage (V)	230
Alternator insulation	class H
Fuel tank capacity	170 liters (45 US Gallons)
Operating hours with full fuel	120 hours		120 hours
Type of lights	Metal Halide Floodlight
Number & power of lights	4×1000W		4×1500W
Number of mast sections	N.A.
Mast Extension	Manual operation
Light bar tilt	Manual operation
Stabilizing legs	Manual operation
Trailer suspension & braking system	leaf spring without brake
Hitch	Ball or O ring
Tire & rim size	14”
Output sockets	1 Piece (single phase,16A)
Acoustic Pressure	78dB(A) at 7 meters away
Max. load quantity in a 20' container (sets)	12		12
