Home > Products > Lighting Tower Generator > 4.2kva Water cooled diesel mobile lighting tower generator 4CL1600

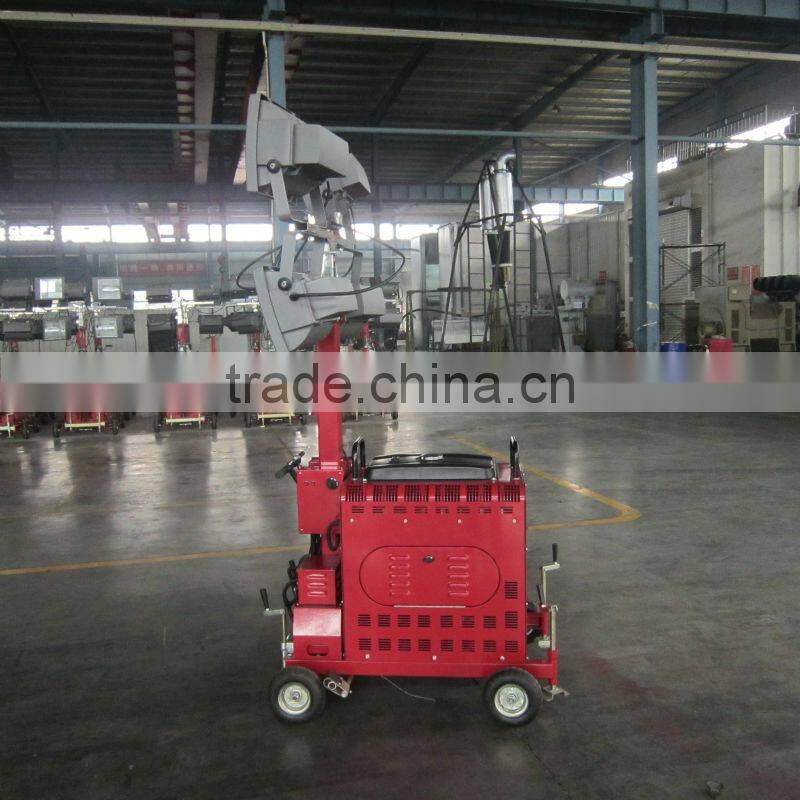

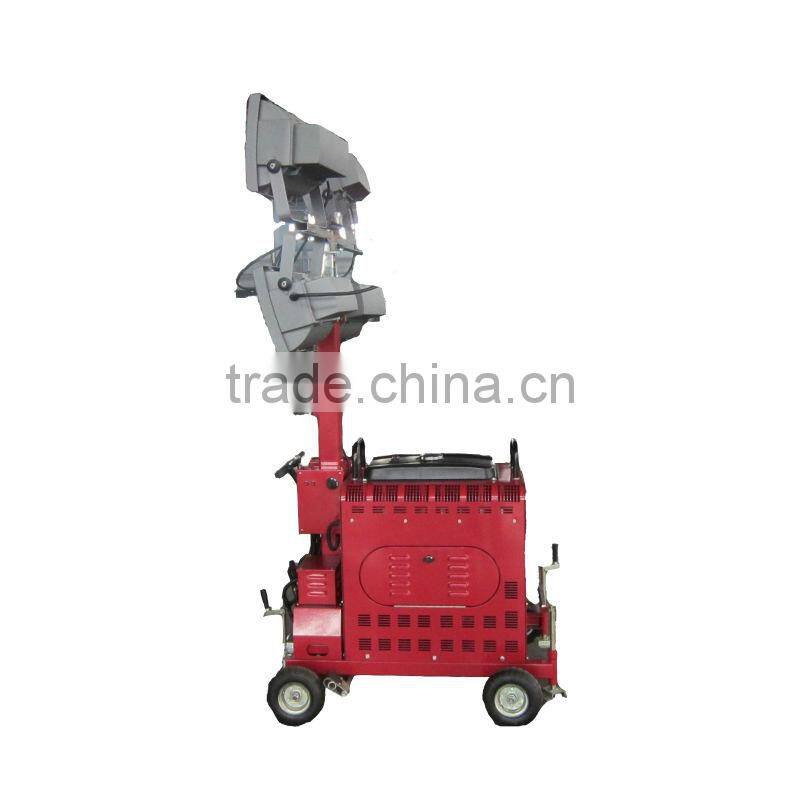

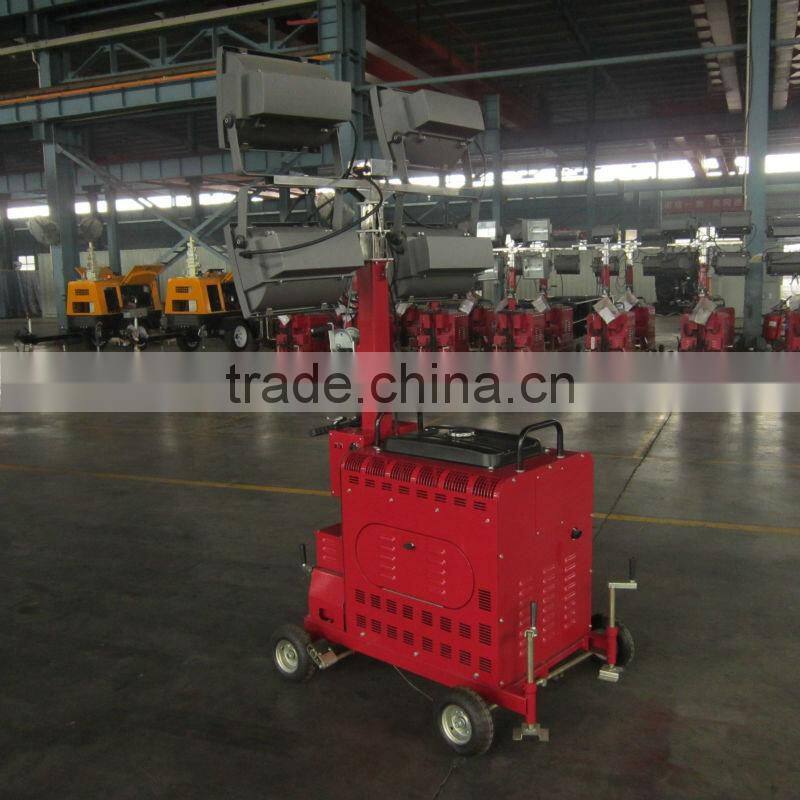

4.2kva Water cooled diesel mobile lighting tower generator 4CL1600
Negotiable
1 (Min. Order)
- China sea port
- T/T
You May Like
-
Diesel generator for marine use
-
HM2 series Three phase synchronous motor/motor for pump
-
IEC Standard Small 3 Phase Electric Motor
-
IEC Standard UL Certified Small Three Phase Electric Motor
-
NEMA Standard Premium Efficiency Cast Iron Three Phase Electric Motor
-
IEC Standard CE Certified High efficiency Three Phase Electric Motor
Product Details
| Place of Origin | Shanghai, China | Brand Name | HALOTOP | |
| Model Number | 4CL1600 | Output Type | AC Single Phase | |
| Speed | 1500/1800RPM | Frequency | 50/60HZ | |
| Rated Power | 4.2KVA | Rated Voltage | 220V |
Product Description
Specifications
mobile lighting tower generator:1. 4*400w metal halide,
2. Kobota diesel engine,
3. Water cooled
4.2kva Water cooled diesel mobile lighting tower generator 4CL1600
mobile lighting tower generator / lighting tower generator / lighting tower
Product Description
| LIGHTING TOWER | ||||
| Model | 4CL1600 | |||
| Length(mm) | 1400 | |||
| width(mm) | 800 | |||
| height(mm) | 1970(Detached the lights) | |||
| Height(Mast fully extended,m) | 5.2 | |||
| Weight(Dry,kg) | 325 | |||
| Engine Model | 186F(CHANGCAI,Electric start) | |||
| Frequency(Hz) | 50 | 60 | ||
| Speed(rpm) | 3000 | 3600 | ||
| Continued power(KVA) | 4.2 | 5 | ||
| Number of cylinders | 1 | |||
| Diesel engine characteristics or Specs | 4 cycles,in line,Aircooled diesel | |||
| Combustion Type | Direct injection | |||
| Engine aspiration | Naturally aspirated | |||
| Emission Level | N.A. | Tier4 | ||
| Alternator | Brushless & single phase | |||
| Rating Voltage(V) | 230 | |||
| Alternator Insulation | H class | |||
| Fuel tank capacity | 25 Liters(6.5 US Gallons) | |||
| Operating hours(Fuel Tank) | 21 | |||
| Type of lights | Metal Halide Spotlight | |||
| Number & power of lights | 4*400W | |||
| Mast lifting & extension | Manual | |||
| Number of mast sections | 5 | |||
| Light Tilt | Manual | |||
| Stabilizing legs | Manual | |||
| Output sockets | 1 piece(230V,16A) | |||
| Input Sockets&MTS | 1set(230V,16A) | |||
| Acoustic pressure | 75dB(A) at 7 meters away | |||
| Max. load quantity in a 20' container(sets) | 8 | |||
