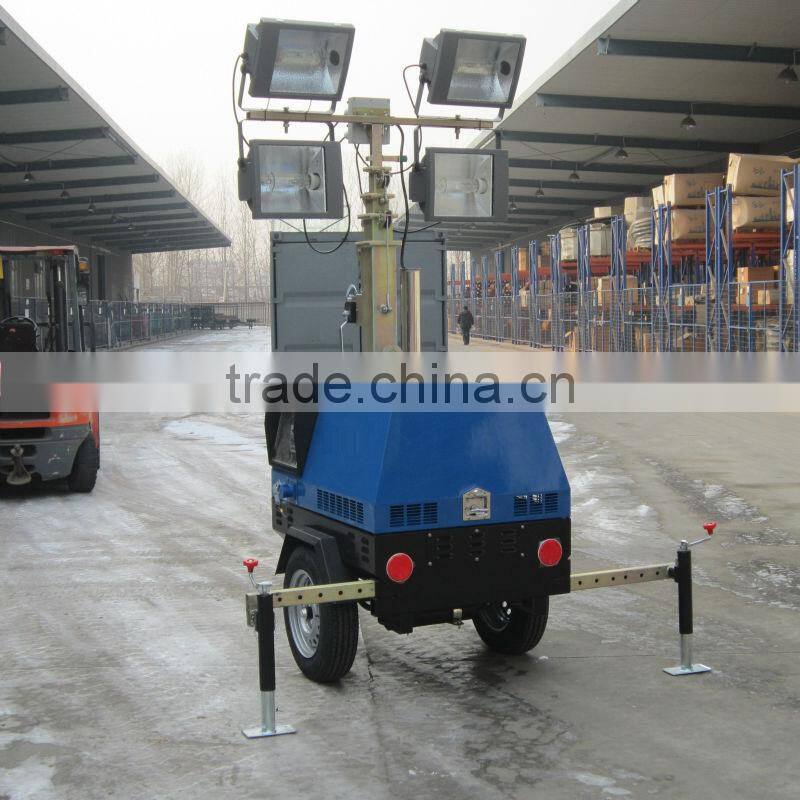

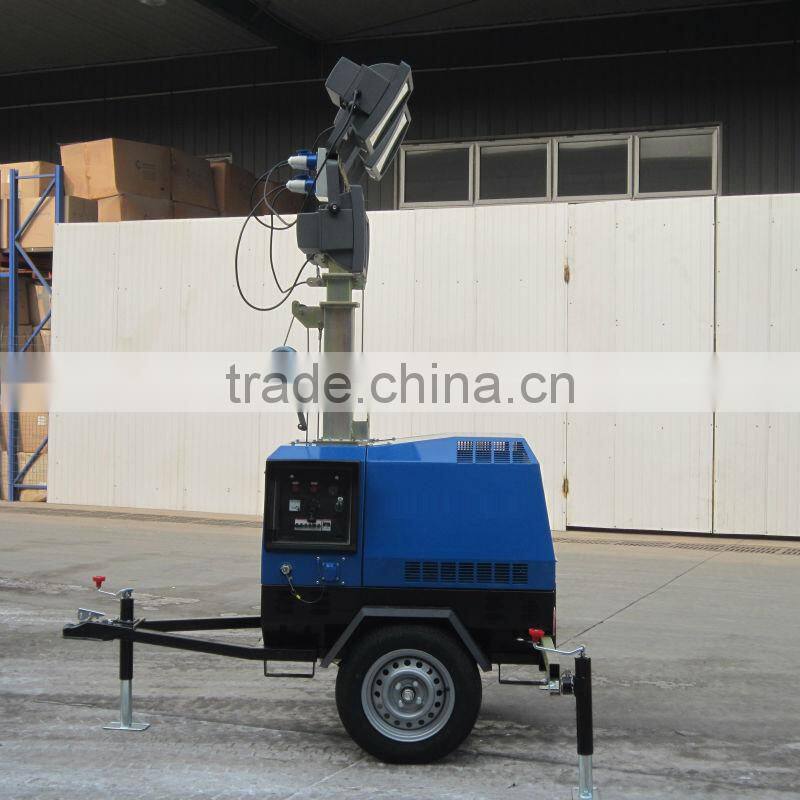

2.7kva Water Cooled Diesel Trailer Light Tower Generator 4VA1600

Name: 2.7kva Water Cooled Diesel Trailer Light Tower Generator 4VA1600
Brand: HALOTOP
SKU: 141199456
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

HALOTOP

Model Number:

4VA1600

Shanghai Halotop Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China sea port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name HALOTOP

Model Number 4VA1600

Output Type AC Single Phase

Speed 1500/1800RPM

Frequency 50/60HZ

Rated Power 2.7KVA

Rated Voltage 220V

Specifications

Trailer light tower generator:
1. 4*400w metal halide,
2. Kobota diesel engine,
3. Water cooled

2.7kva Water cooled diesel trailer light tower generator 4VA1600

trailer light tower generator / light tower generator / light tower

Product Description

LIGHTING TOWER(1600/4000/6000W) POWER BY KUBOTA/PERKINS/KOHLER
Model	4VA1600		4VA4000
Length(mm)	2180
width(mm)	1130
height(mm)	2700(2300,Detached a pair of the top lights)
Height(Mast fully extended,m)	7
Weight(Dry,kg)	480		550
Frequency(Hz)	50	60	50	60
Speed(rpm)	1500	1800	1500	1800
Continued power(KVA)	2.7	3.2	4.8	5
Number of cylinders	1
Diesel engine characteristics or Specs	4 cycles, in line,Air cooled diesel
Engine aspiration	Naturally aspirated
Alternator	Brushless & single phase
Fuel tank type	Single deck tank
Fuel tank capacity	38 liters(10US gallons)
Operating hours(Fuel Tank)	63 hours		25 hours
Type of lights	Metal halide floodlight
	Round(E40/E39)		Rectangle(E40/E39,Gewiss)
Number & power of lights	4*400W		4*1000W
Mast lifting & extension	Manual
Number of mast sections	5
Mast erection time	N.A.
Mast rotation	330° Manual
Light bar tilt	Manual
Control system	Key start
Stabilizing legs	Manual
Trailer suspension & braking system	Hexagonal rubber axle without brake
Hitch & tow bar	Ball or O ring
Tire & rim size	13”
Output sockets	1 Piece(230V,10A)
Acoustic pressure	78dB(A) at 7 meter away
Max. load quantity in a 40' container(sets)	20		16

Optional equipment & upgrades("O" standby Option;"N" standby Not Application;"S" Standby Standard
Model		4VA1600		4VA4000
Engine:	D1105-BG D905-BG(Kubota)	N	N	N	N
	403D-11G(Perkins) KDW1003(Kohler)	N	N	N	N
	380	N	N	N	N
	178F	S	S	N	N
	KD440(Kohler)	N	N	S	O
	186F	N	N	N	O
