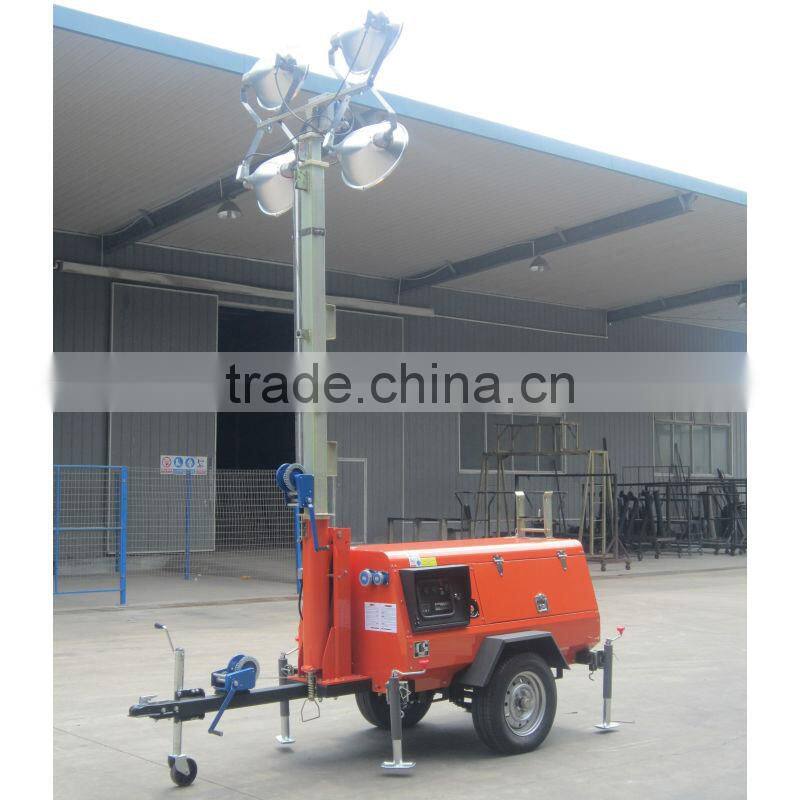

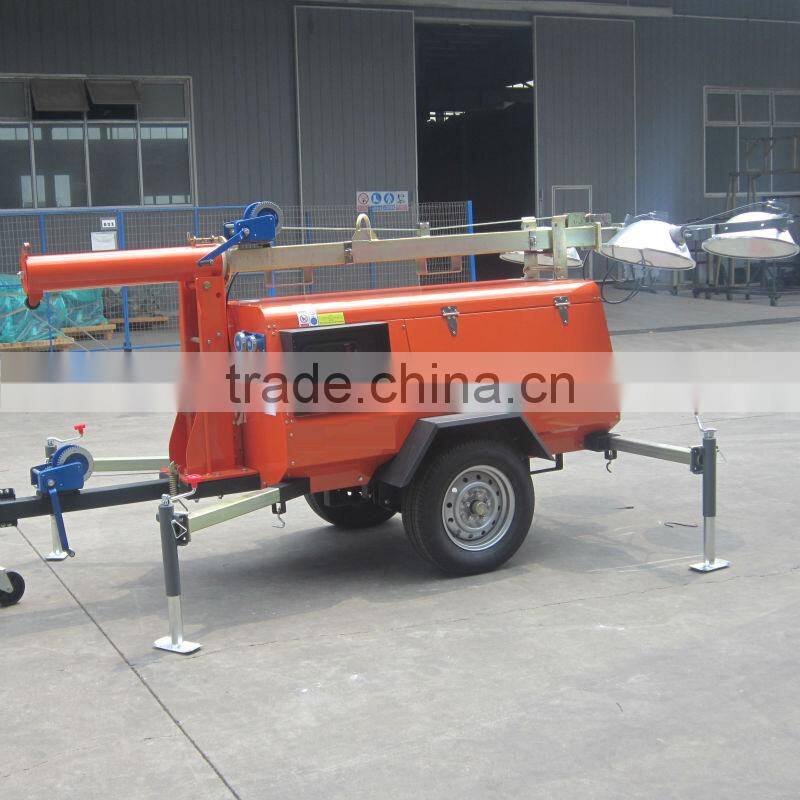

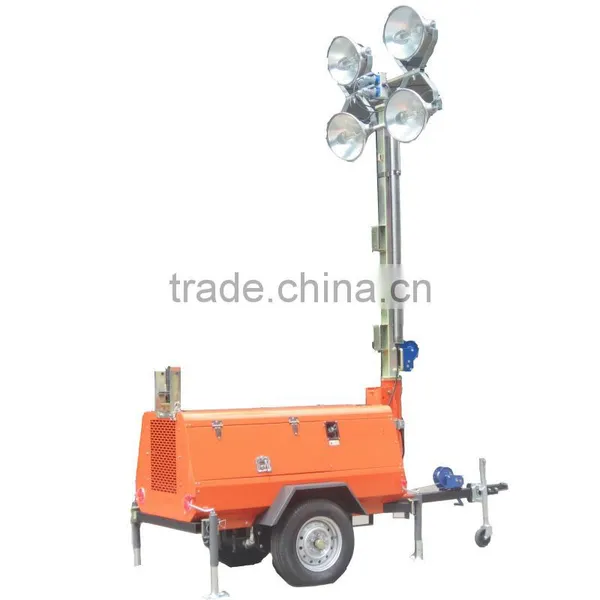

Water Cooled Diesel Trailer Light Tower Generator 7KVA

Name: Water Cooled Diesel Trailer Light Tower Generator 7KVA
Brand: HALOTOP
SKU: 141199452
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

HALOTOP

Model Number:

4TN4000

Shanghai Halotop Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China sea port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name HALOTOP

Model Number 4TN4000

Output Type AC Single Phase

Speed 1500/1800RPM

Frequency 50/60HZ

Rated Power 7KVA/9KVA

Rated Voltage 220V

Specifications

Trailer light tower generator:
1. 4*1000w metal halide,
2. Kobota diesel engine,
3. Water cooled

Water cooled diesel trailer light tower generator 7KVA

trailer light tower / Lighting tower / 7KVA lighting tower

Product Description

LIGHTING TOWER(1600/4000/6000W) POWER BY KUBOTA/PERKINS/KOHLER
Model	4TN4000		4TN6000
Length(mm)	4360
width(mm)	1430
height(mm)	1450
Height(Mast fully extended,m)	9
Weight(Dry,kg)	890
Frequency(Hz)	50	60	50	60
Speed(rpm)	1500	1800	1500	1800
Continued power(KVA)	7	9	9	11
Number of cylinders	3
Diesel engine characteristics or Specs	4 cycles, in line,Water cooled diesel
Engine aspiration	Naturally aspirated
Alternator	Brushless & single phase
Fuel tank type	Single deck tank
Fuel tank capacity	170 liters(45US gallons)
Operating hours(Fuel Tank)	120 hours
Type of lights	Metal halide floodlight
	Oval(E40/E39)
Number & power of lights	4*1000W		4*1500W
Mast lifting & extension	Manual
Number of mast sections	N.A.
Mast erection time	N.A.
Mast rotation	330° Manual
Light bar tilt	Manual
Control system	HGM 170
Stabilizing legs	Manual
Trailer suspension & braking system	Leaf spring without brake
Hitch & tow bar	Ball or O ring & stable hitch in height
Tire & rim size	14”
Output sockets	1 Piece(230V,16A)
Acoustic pressure	72dB(A) at 7 meter away
Max. load quantity in a 40' container(sets)	12

Optional equipment & upgrades("O" standby Option;"N" standby Not Application;"S" Standby Standard
Model		4TN4000		4TN6000
Engine:	D1105-BG D905-BG(Kubota)	O	O	O	O
	403D-11G(Perkins) KDW1003(Kohler)	O	O	O	O
	380	O	O	O	O
	178F	N	N	N	N
	KD440(Kohler)	N	N	N	N
	186F	N	N	N	N
