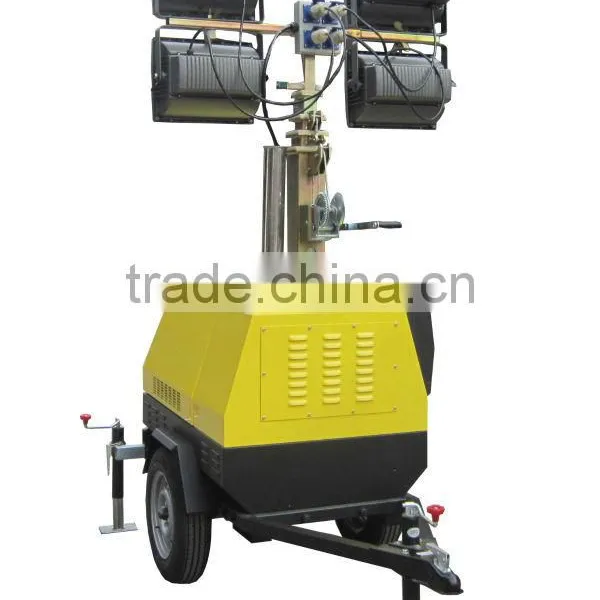

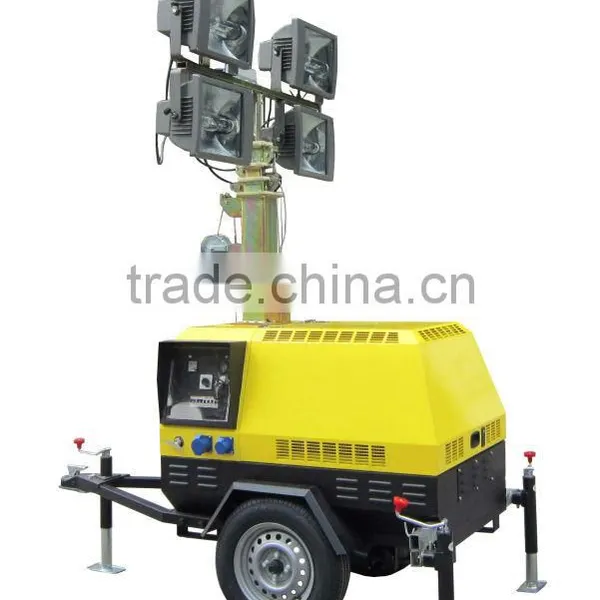

Air Cooled Diesel Trailer Light Tower Generator

Name: Air Cooled Diesel Trailer Light Tower Generator
Brand: HALOTOP
SKU: 141199446

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

HALOTOP

Model Number:

4VA1600

Shanghai Halotop Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name HALOTOP

Model Number 4VA1600

Output Type AC Single Phase

Speed 1500/1800RPM

Frequency 50/60HZ

Rated Power 3KVA

Rated Voltage 220V

Rated Current 17A

Specifications

Trailer light tower:
1. 4*1000w metal halide,
2. Kohler diesel engine,
3 Linz alternator.
4. Air cooled

Air cooled diesel trailer light tower generator

Product Description

Standard equipment	4VA1600		4VA4000
Length (mm)	2180(1160,detached the tow bar)
Width (mm)	1130
Height (mm)	2700(2300, Detached a pair of the top lights)
Height( Mast be extended fully,m)	7
Weight ( Dry,kg)	480		550
Engine model	KD225 ( Kohler )		KD440(Kohler)
Frequency(Hz)	50	60	50	60
Speed(rpm)	3000	3600	3000	3600
Continued power(kVA)	2.7	3.2	4.8	5.1
Number of cylinders	Single cylinder
Diesel engine characters	4 Cycle, In line, Air cooled diesel
Combustion type	Direct injection
Engine aspiration	Natural
Emission level	N.A.			Tier4
Alternator	Brushless & single phase
Rating voltage (V)	230
Alternator insulation	H class
Fuel tank capacity	38 liters (10 US Gallons)
Operating hours with full fuel	60 hours		25 hours
Type of lights	GEWISS Metal Halide Floodlight
Number & power of lights	4×400W		4×1000W
Number of mast sections	5
Mast Extension	Manual operation
Light bar tilt	Manual operation
Stabilizing legs	Manual operation
Trailer suspension & braking system	Hexagonal rubber suspension
Hitch	Ball or O ring
Tire & rim size	13”
Output sockets	1 Piece (single phase,10A)
Acoustic Pressure	78dB(A) at 7 meters away
Max. load quantity in a 20' container (sets)	10		8
