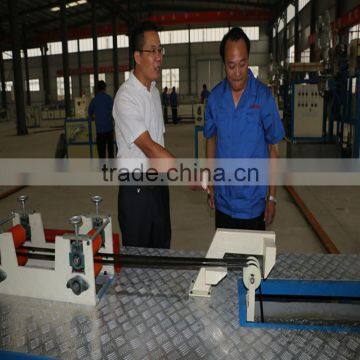

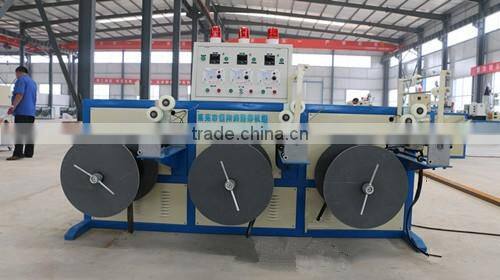

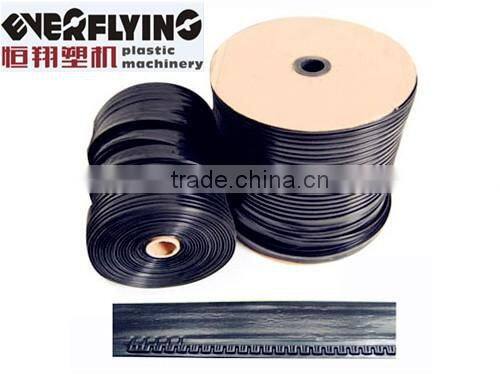

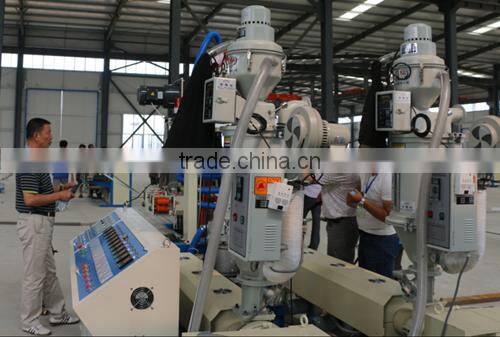

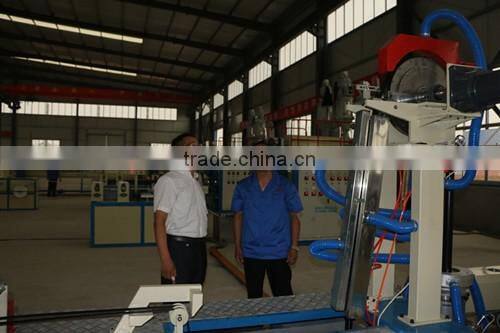

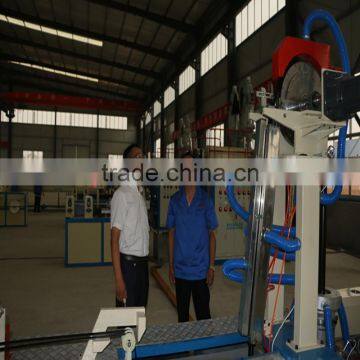

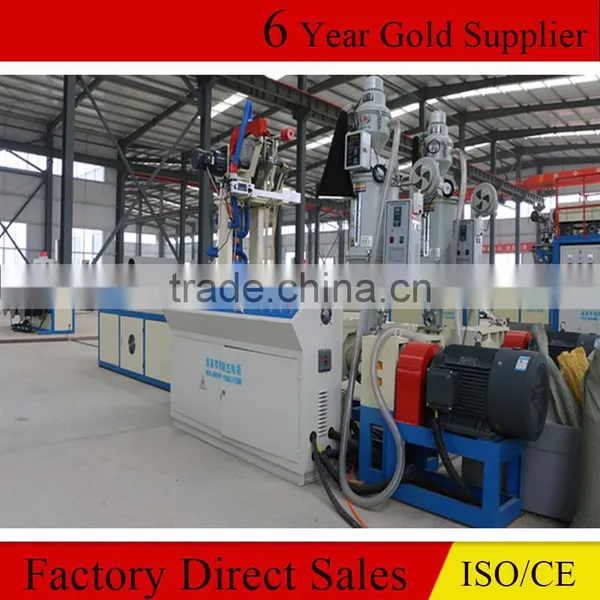

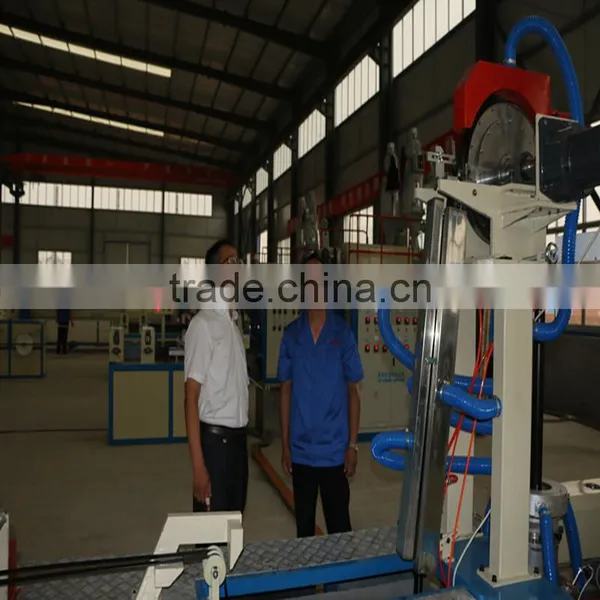

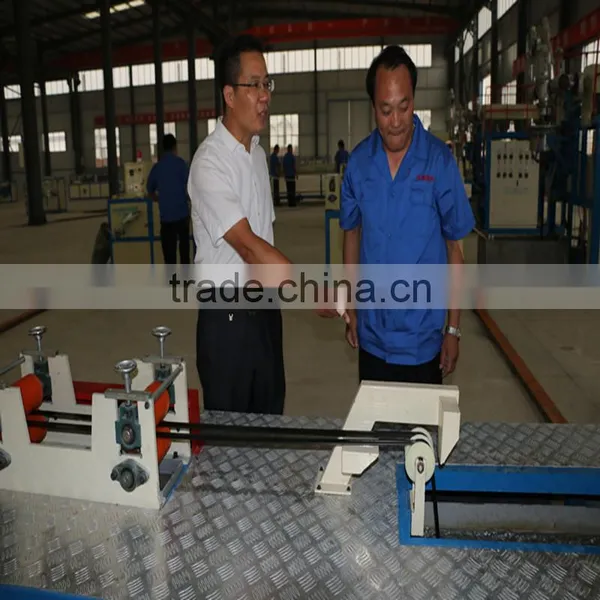

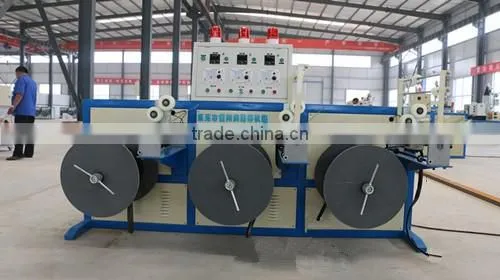

Plastic molding machine for labyrinth drip irrigation tape machine

Model

SM DGD 55/45

SM DGD 50/50

SM DGD 55/55

Extruder model

SJ-55         SJ-45

SJ-50       SJ-50

SJ-55         SJ-55

Screw dia./ L:D

Φ55/30:1

Φ45/30:1

Φ50/30:1

Φ45/30:1

Φ55/28:1

Φ55/30:1

Main motor power (KW)

18.5

11

15

15

18.5

18.5

Die head specifications (mm)

Φ55*1.5 or Φ53*1.5 (selected by the user)

Cooling method

Air and water cooling

Driving power of the molding wheel (KW)

1.5 or 1.1 (selected by the user)

Haul-off power (KW)

1.5 or 1.1 (frequency control)

Coiling power (Nm)

6*2

Total water consumption (m3/h)

90~120

Speed of the production line

2*20m/min

2*30 m/min

2*40 m/min

Overall dimension L*W*H

12*1.5*2.3
