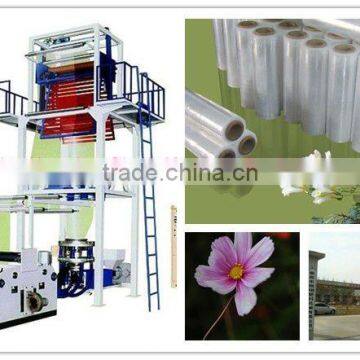

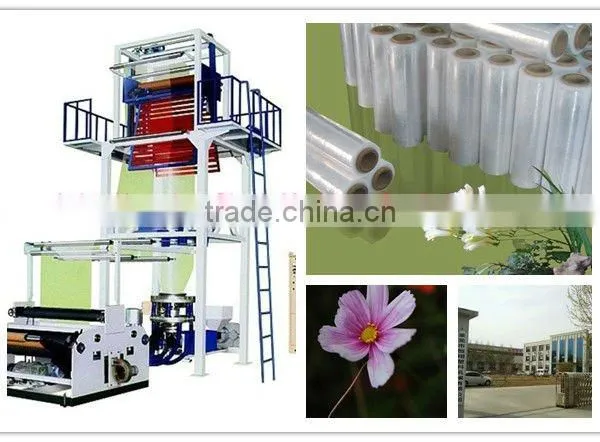

Help CenterPlastic Machine: PE Series 2FM Plastic Packaging Film Blowing Machine Unit
Related Products
-
Plastic Machine: PE Packaging Film Blowing EquipmentNegotiableMOQ: 1 Set -
Plastic Machine: Plastic Packaging Film Blowing EquipmentNegotiableMOQ: 1 Set
-
Multilayer Packaging Films Blowing MachineNegotiableMOQ: 1 Set
-
Plastic Equipment: PE Thermal Contraction Plastic Film EquipmentNegotiableMOQ: 1 Set
-
2FM1100-I Multi-layer PE Packaging Film Making MachineUS$ 20,000 - 40,000MOQ: 1 Set
Specifications
1.Applicable for LLDPE, LDPE, LLDPE/LDPE blend, mPE, EVE2. Two layers
3.air ring: dike type
4.folding width:1,000-2,000mm
Structural characteristics
It mainly adopts advanced technologies of high-efficiency and energy saving extruding system, rotating die head, elevation type haul-off, and automatic temperature control system. The die head and the screw are processed by imported processing center.

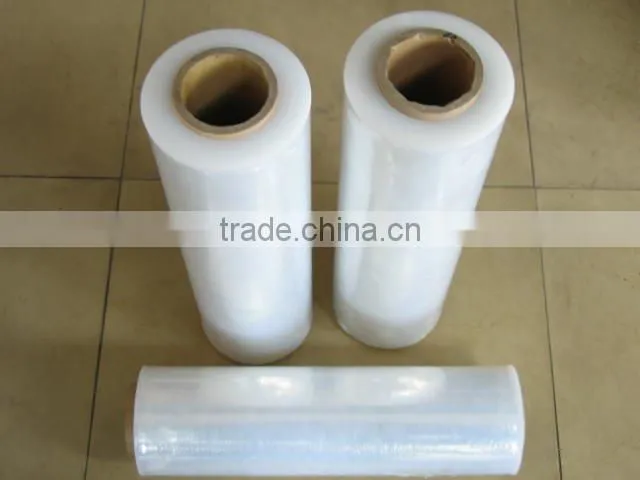

Double layer co-extruding composition plastic packaging film machine unit is mainly used for producing LDPE, LLPE, EVA, and mPE two-type two-layer or one-type two-layer composition films. It is the ideal equipment for producing various fluid packaging film, printing film and black/white films.
Main technical parameters:
Model |
2FM1100-I |
2FM1300-I |
2FM1600-I |
2FM2200-I |
Max. folding width MM |
1,000 |
1,200 |
1,500 |
2,000 |
Applicable raw material |
LLDPE, LDPE, LLDPE/LDPE Blend, mPE, EVA |
|||
Composed layers |
2 |
2 |
2 |
2 |
Screw dia. |
Φ45/Φ45 |
Φ45/Φ45 |
Φ50/Φ50 |
Φ55/Φ55 |
Max. plasticizing capacity |
90kg/h (LDPE) |
90kg/h (LDPE) |
110kg/h (LDPE) |
150kg/h (LDPE) |
Die head |
Φ200 |
Φ300 |
Φ350 |
Φ500 |
Air ring |
Dike type, steady wind structure |
|||
Length of haul-off roller |
1,100 |
1,300 |
1,600 |
2,200 |
Wind-up speed |
3~30m/min |
|
|
|
Total power kw |
60 |
62 |
70 |
90 |
Overall dimension |
7×5.5×5 |
7×5.7×5 |
7.5×6×7 |
7.5×6.6×7.6 |
Weight tons |
10 |
11 |
12 |
12.5 |
