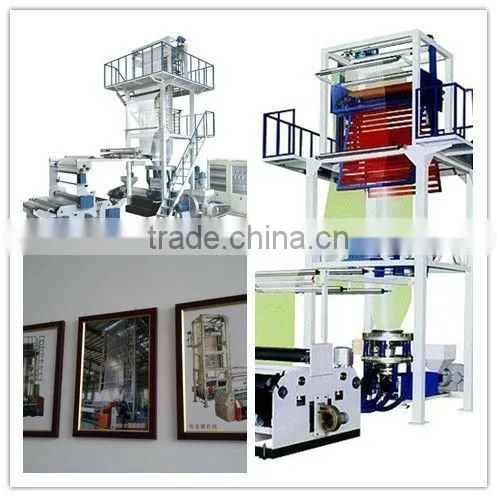

Plastic Machine: PE Packaging Film Blowing Equipment

Plastic Machine: PE Packaging Film Blowing Equipment thumbnail-1
Plastic Machine: PE Packaging Film Blowing Equipment photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Laiwu Everflying Plastic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Film
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic No
Place of Origin Shandong, China
Brand Name Hengxiang
Model Number Series
After-sales Service Provided Overseas service center available

Specifications

1.material:HDPE, LDPE, LLDPE
2.die head: spiral die head
3.haul-off machine: automatic4.screw D/L: 30:1
5.thickness:0.008-0.2


Product Description



Structural characteristics:

It is used for producing packaging films. It also can used for producing LDPE, LLDPE, HDPE film, packaging film, wrapping film, water-proofing and seepage prevention films after changed the screw and machine head. The products are widely used for the package of foodstuffs, drugs, boxed, cases, bottles, cloth rolls, floor slabs, pallets, glass, ceramics, papers, roll papers, lamps, and electrical equipment etc.

Main technical parameters:

Extruder

Lower center

Screw dia. mm

35

45

50

55

65

75

L/D

30:1

Main motor KW

15

18.5

22

30

37

45

Rotating speed R/Min

0~120

0~120

0~120

0~120

0~100

0~100

Heating power KW

7

8.5

10

12

14

18

Temperature control sections

3

5

5

5

7

7

Die head

Spiral head

Applicable raw material

HDPE, LDPE, LLDPE

Film width mm

100~550

150~700

200~750

300~950

400~1,150

500~1,450

Film thickness mm

0.008~0.2

Extruding capacity Kg/h

10~30

15~60

15~75

20~90

25~120

30~145

Total power KW

28

42

45

48

60

80

Net weight Kg

2,500

2,800

3,000

3,200

4,000

5,000

Dia. of neckling die mm

HL40

HL60

HL80

HL80

HL100

HL130

Dia. of neckling die mm

L120

L150

L150

L200

L250

L300

Heating power KW



3/4

3/4

3/4.2

3.5/5

3.5/6

Blower power KW

2.2

4

Air ring

1

Haul-off machine

Automatic haul-off

Haul-off power KW

0.75

1.1

1.5

Width of haul-off roller mm

600

750

800

1,000

1,200

1,500

Haul-off speed m/min

12~120

Haul-off height mm

4,000

4,200

4,200

4,500

5,000

5,500

Coiler

Surface friction coiler

Coiling position

Single position (or double positions)

Motor Kg/cm

10

15

20

20

30

40

Coiling width mm

650

800

850

1,050

1,250

1,550

Inner dia. of the paper pipe mm

70

Outer dia. of the paper pipe mm

90

Dimension m

1.8Φ3.6

2.0×4.0

2.1×4

2.2×4.2

2.2×4.8

2.6×5.0
