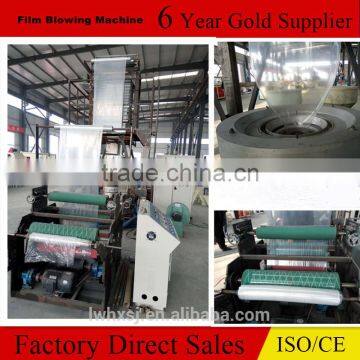

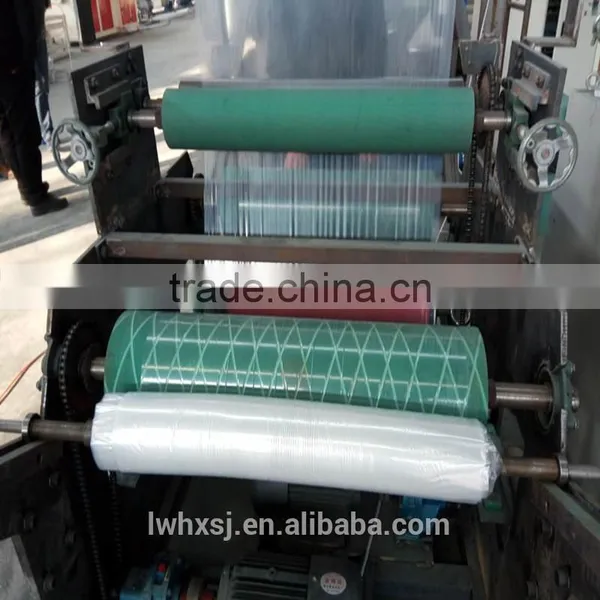

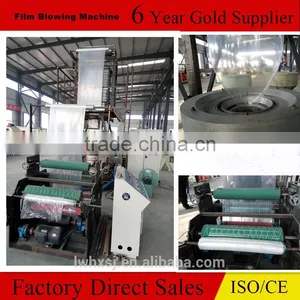

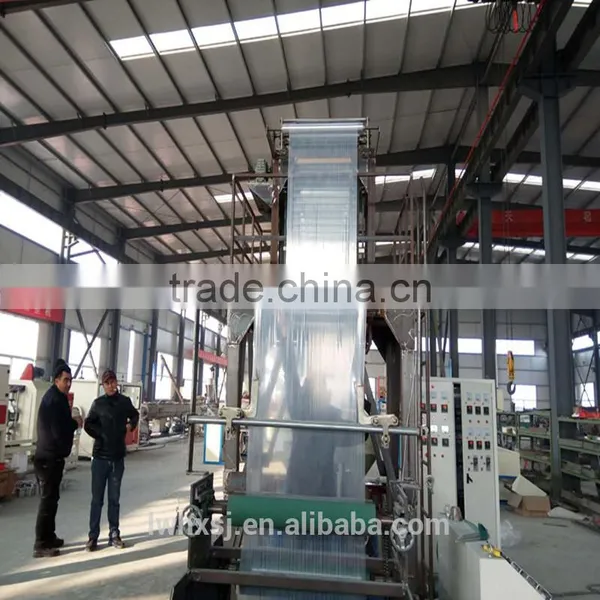

Structural characteristics
It mainly adopts advanced technologies of high-efficiency and energy saving extruding system, rotating die head, elevation type haul-off, and automatic temperature control system. The die head and the screw are processed by imported processing center.
Three layers co-extruding composition plastic packaging film machine unit is mainly used for producing LDPE, LLDPE, EVA, and mPE three-type three-layer, two-type three-layer and one-type three-layer composition films. It is the ideal equipment for producing various fluid packaging film, printing film and black/white films.
Main technical parameters:
Model |
3FM1100-I |
3FM1300-I |
3FM1600-I |
3FM2200-I |
Max. folding width MM |
1,000 |
1,200 |
1,500 |
2,000 |
Applicable raw material |
LLDPE, LDPE, LLDPE/LDPE Blend, mPE, EVA |
|||
Composed layers |
3 |
3 |
3 |
3 |
Screw dia. |
Φ45/Φ45/Φ45 |
Φ45/Φ45/Φ45 |
Φ50/Φ50/Φ50 |
Φ55/Φ55/Φ55 |
Max. plasticizing capacity |
120kg/h (LDPE) |
120kg/h (LDPE) |
160kg/h (LDPE) |
200kg/h (LDPE) |
Die head |
Φ200 |
Φ300 |
Φ350 |
Φ500 |
Air ring |
Dike type, steady wind structure |
|||
Length of haul-off roller |
1,100 |
1,300 |
1,600 |
2,200 |
Wind-up speed |
3~30m/min |
|||
Total power kw |
90 |
92 |
110 |
135 |
Overall dimension |
9×5.5×6.5 |
9×5.7×6.5 |
9×6.5×7 |
9×7.5×8 |
Weight tons |
12 |
12.5 |
14 |
16 |
Laiwu EverflyingPlastic Machinery Co.,Ltd is a pacesetting technologically advanced enterprise that devoted to the R&D and businesses of plastic machines.The company always taking “People oriented,Honest operation as tenet;draws support form quality to occupy the marketextends market by developing products;and draws support from management to gain benefit and growth”.
Our products are sold to the customers at home and abroad,more than 30 provinces ,and other countries,such as Russia,India,Ukraine,Malaysia,Australia and so on.
