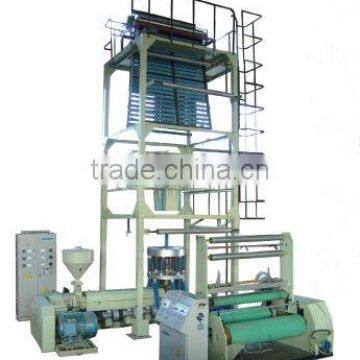

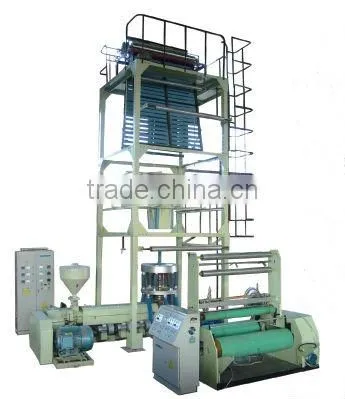

PES Polyethylene Thermal Contraction Film Making Machine 6

Name: PES Polyethylene Thermal Contraction Film Making Machine 6
Brand: Hengxiang
SKU: 141186030
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Film

Plastic Processed:

Laiwu Everflying Plastic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Film

Plastic Processed PE

Blow Moulding Type Extrusion Blow Moulding

Automatic No

Place of Origin Shandong, China

Brand Name Hengxiang

Model Number PES800-1/PES1100-1/PES1300-1/PES1600-1/PES1800-1/PES2200-1

Certification ISO9001

After-sales Service Provided Overseas service center available

Specifications

1. PE thermal contraction film
2. Layer: 1; 2; 3
3. packaging foodstuff, beer bottle, box, floor board, ect

Product Description

Structural Characteristics:

It is used for producing various PE thermal contraction film. The film is widely used for the packaging of foodstuff, beer bottle, substance container, box, case, cloth roll, floor board, glass, tiles, ceramics and facial tissue etc.
The machine set is equipped with new-type high efficiency screw, and force transmitting barrel. Materials can be extruded stably and the production efficiency is higher. The main motor and upper traction adopt frequency control, which is more energy saving. The operation is more stable. And the quality of the product can be assured.
According to the demand of products, manufacturer can select proper new-type rotation die (Japanese technology) to produce different transverse or longitudinal shrinkage products.
The coiling device adopts Φ318 big back to back coiling matched with side cut and middle knife. It can realize several coils products production once, and can coil neat and beautiful.
It is matched with air sending slitter edge collection device, which can collect the slitter edge conveniently.

Main technical parameters:

Model	Extruder	Motor power	Dia. of neckling die	Max. specification	Specification of haul-off roller	Wind-up speed
PES800-1	SJ-45/25	11KW	Φ100-Φ150	700 mm	Φ160×800	3-30 m/min
PES1100-1	SJ-45/30	15KW	Φ200-Φ250	1,000 mm	Φ160×1,100	3-30 m/min
PES1300-1	SJ-55/28	22KW	Φ200-Φ300	1,200 mm	Φ160×1,300	3-30 m/min
PES1600-1	SJ-65/28	37KW	Φ200-Φ350	1,500 mm	Φ160×1,600	3-30 m/min
PES1800-1	SJ-75/28	55KW	Φ350-Φ450	1,700 mm	Φ160×1,800	3-30 m/min
PES2200-1	SJ-90/30	75KW	Φ450-Φ550	2,000 mm	Φ160×2,200	3-30 m/min
