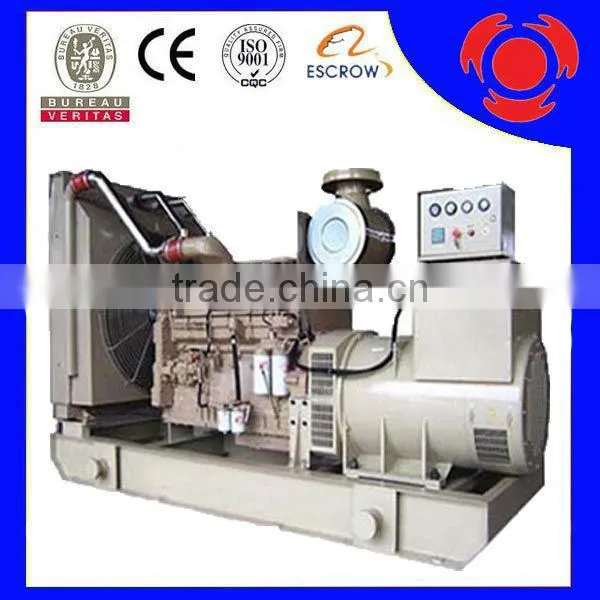

300kw WEIFANG Diesel Generator With NTA855-G2A Engine
300kw WEIFANG Diesel Generator With NTA855-G2A Engine
| Technical Specifications | ||
|---|---|---|
| Diesel Generator Set | Model No. | HT300GF |
| Rated Output(KW/KVA) | 300/375 | |
| Standby Output(KW/KVA) | 343/429 | |
| Size(MM) | 3100*980*1760 | |
| Weight(KG) | 2900 | |
| Diesel Engine | Model No. | NTA855-G2A |
| Engine Characters | Direct-injection, water-cooling, four stroke,in line | |
| Rated Output(KW/KVA) | 313/391 | |
| Standby Output(KW/KVA) | 343/429 | |
| Cylinder NO. | 6 | |
| Aspiration | Turbocharged | |
| Bore(MM)*Stroke(MM) | 140/152 | |
| Compression Ratio | 16.5:1 | |
| Displacement(L) | 14 | |
| Start Type | DC 24V electric start | |
| Rated Speed(RPM) | 1500 | |
| Rated fuel consumption(G/KW.H) | ≤210 | |
| Alternator | Model No. | TZH-300 |
| Continuous Output(KW/KVA) | 300/375 | |
| Voltage Control | AVR | |
| Excitation Type | Bruss/Brussless | |
| Insulation Class | H | |
| Brand | Stanford/Stanford copy | |
| Voltage(V) | 400/230 | |
| Current(A) | 540 | |
| Frequency(HZ) | 50 | |
| Power Factor | 0.8 | |
| Phase | 3 phases, 4 wires | |
