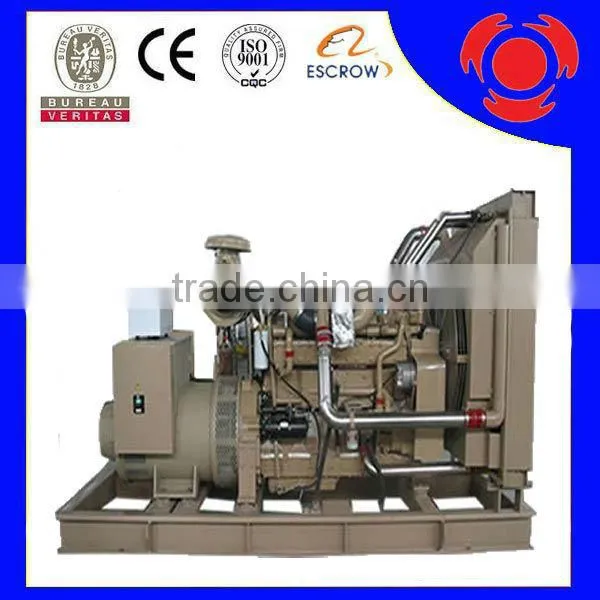

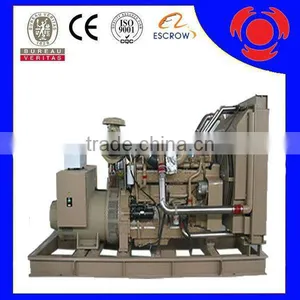

250kw WEIFANG Diesel Generator With MTAA11-G3 Engine

Name: 250kw WEIFANG Diesel Generator With MTAA11-G3 Engine
Brand: Weichai Huatian
SKU: 141184418
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Weichai Huatian

Model Number:

HT250GF

Weifang Huatian Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Weichai Huatian

Model Number HT250GF

Output Type AC Three Phase

Speed 1500rpm

Frequency 50Hz

Rated Power 250kw

Rated Voltage 220/400V

Rated Current 450A

250kw WEIFANG Diesel Generator With MTAA11-G3 Engine

Product Description

Technical Specifications
Diesel Generator Set	Model No.	HT250GF
	Rated Output(KW/KVA)	250/312.5
	Standby Output(KW/KVA)	310/387.5
	Size(MM)	32009801760
	Weight(KG)	2650
Diesel Engine	Model No.	MTAA11-G3
	Engine Characters	Direct-injection, water-cooling, four stroke,inline
	Rated Output(KW/KVA)	282/352.5
	Standby Output(KW/KVA)	310/387.5
	Cylinder NO.	6
	Aspiration	Turbocharged
	Bore(mm)*Stroke(mm)	140/147
	Compression ratio	16.5:1
	Displacement(L)	14
	Start type	DC 24V electric start
	Rated Speed(rpm)	1500
	Rated Fuel Consumption(G/KG.H)	≤210
Alternator	Model No.	TZH-250
	Continuous Output(KW/KVA)	250/312.5
	Voltage Control	AVR
	Excitation Type	Bruss/Brussless
	Insulation Class	H
	Brand	Stanford/Stanford copy
	Voltage(V)	400/230
	Current(A)	450
	Frequency(HZ)	50
	Power Factor	0.8
	Phase	3 phases, 4 wires
