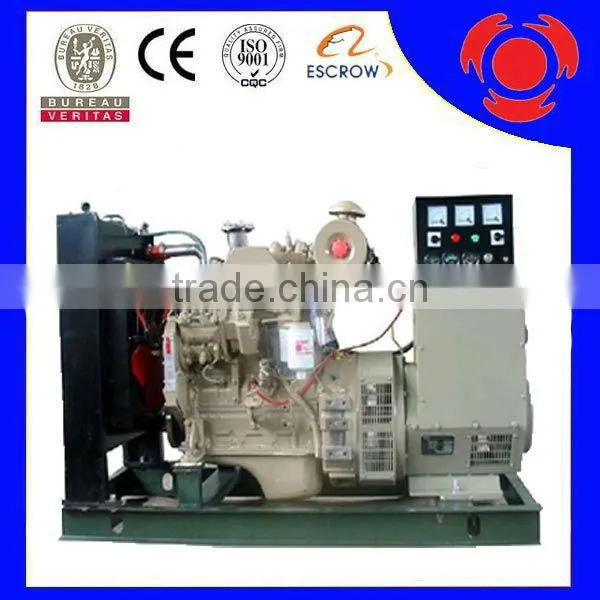

50KW WEIFANG Diesel Generator With 4BTA3.9-G2 Engine

Name: 50KW WEIFANG Diesel Generator With 4BTA3.9-G2 Engine
Brand: Weichai Huatian
SKU: 141184420
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Weichai Huatian

Model Number:

HT50GF

Weifang Huatian Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Weichai Huatian

Model Number HT50GF

Output Type AC Three Phase

Speed 1500rpm

Frequency 50Hz

Rated Power 50kw

Rated Voltage 220/400V

Rated Current 90A

50KW WEIFANG Diesel Generator With 4BTA3.9-G2 Engine

Product Description

Technical Specifications
Diesel Generator Set	Model No.	HT50GF
	Rated Output(KW/KVA)	50/62.5
	Standby Output(KW/KVA)	55/68.75
	Size(MM)	21008001300
	Weight(KG)	1200
Diesel Engine	Model No.	4BTA3.9-G2
	Engine Characters	water- cooling, direct-injection,four stroke, in line
	Rated Output(KW/KVA)	51/63.75
	Standby Output(KW/KVA)	55/68.75
	Cylinder NO.	4
	Aspiration	Turbocharged
	Bore(mm)*Stroke(mm)	102*120
	Compression Ratio	16:1
	Displacement(L)	3.9
	Start Type	DC 24V electric start
	Rated Speed(RPM)	1500
	Rated Fuel Consumption(G/KW.H)	≤210
Alternator	Model No.	TZH-50
	Continuous output(KW/KVA)	50/62.5
	voltage control	AVR
	Excitation type	Brush/Brushless
	Insulation class	H
	Brand	Stanford/Stanford copy
	Voltage(V)	400/230
	Current(A)	90
	Frequency(HZ)	50HZ
	Power Factor	0.8
	Phase	3-phases,4-wires
