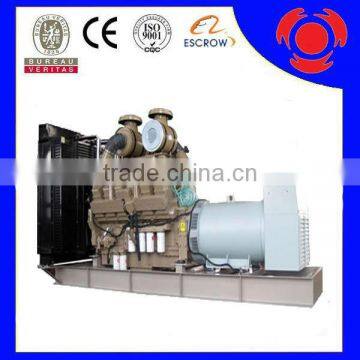

1000kva 800kw WEIFANG Diesel Generator With KTA38-G2A Engine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Weichai Huatian
Model Number:
HT800GF
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
450kVA Series Soundproof Diesel Generator SetUS$ 1 - 10,000MOQ: 1 Set -
CE Approved Chinese Brand Generator 10kw to 500kwUS$ 2,100 - 6,500MOQ: 1 Set
-
10kw-200kw Ricardo Diesel Generator CE Warranty!US$ 1,900 - 5,000MOQ: 1 Set
-
75kw Generator SetUS$ 3,000 - 4,500MOQ: 1 Set
-
60kw/75kva Ricardo GeneratorUS$ 2,000 - 8,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Weichai Huatian
Model Number
HT800GF
Output Type
AC Three Phase
Speed
1500rpm
Frequency
50Hz
Rated Power
800kw
Rated Voltage
220/400V
Rated Current
1440A
1000kva 800kw WEIFANG Diesel Generator With KTA38-G2A Engine
Product Description
| Technical Specifications | ||
|---|---|---|
| Diesel Generator Set | Model No. | HT800GF |
| Rated Output(KW/KVA) | 800/1000 | |
| Standby Output(KW/KVA) | 880/1100 | |
| Size(MM) | 4350*1900*2300 | |
| Weight(KG) | 5600 | |
| Diesel Engine | Model No. | KTA38-G2A |
| Engine Characters | direct-injection, water-cooling, four stroke,in line | |
| Rated Output(KW/KVA) | 880/1100 | |
| Standby Output(KW/KVA) | 968/1210 | |
| Cylinder NO. | 12 | |
| Aspiration | Turbocharged | |
| Bore(mm)*Stroke(mm) | 159/159 | |
| Compression Ratio | 14.5:1 | |
| Displacement(L) | 37.8 | |
| Start Type | DC 24V electric start | |
| Rated Speed(RPM) | 1500 | |
| Rated Fuel Consumption(G/KW.H) | ≤196 | |
| Alternator | Model No. | TFW2-800 |
| Continuous Output(KW/KVA) | 800/1000 | |
| Voltage Control | AVR | |
| Excitation Type | Bruss/Brussless | |
| Insulation Class | H | |
| Brand | Stanford/Stanford copy | |
| Voltage(V) | 230/400 | |
| Current(A) | 1440 | |
| Frequency(HZ) | 50HZ | |
| Power Factor | 0.8 | |
| Phase | 3 phases, 4 wires | |
