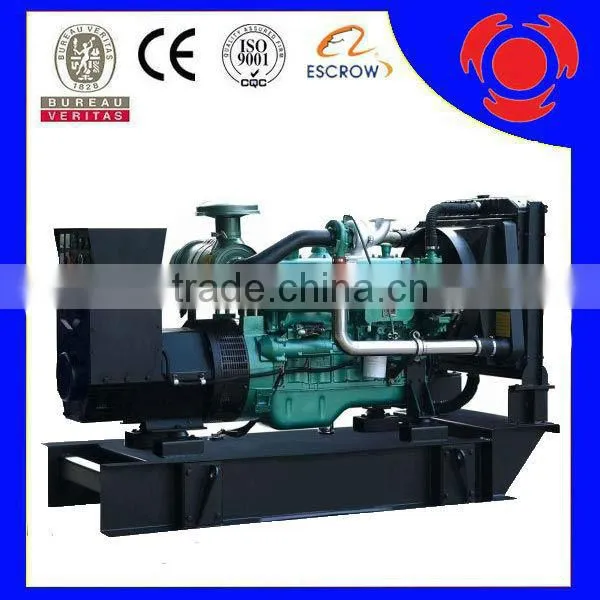

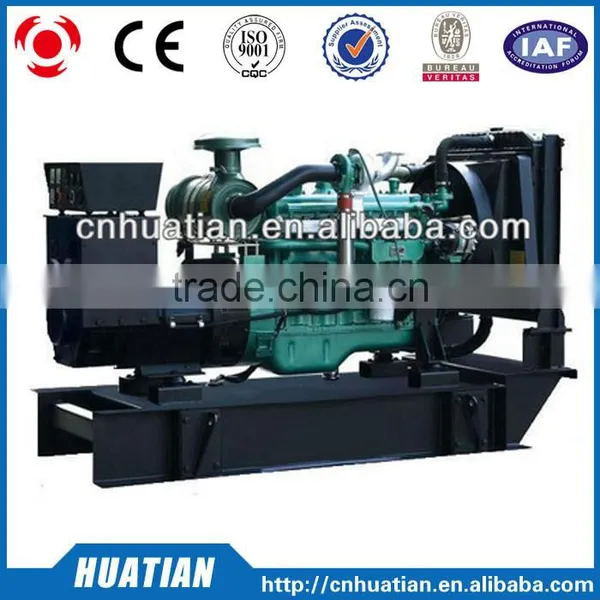

weichai k4100d diesel generator set 30kw Diesel Generator With Ricardo Engine
Technical Specifications | ||
Diesel Generator Set | Model No.: | HT30GF |
Rated output(KW/KVA) | 24/30 | |
Standby output(KW/KVA) | 30/37.5 | |
Size(mm) | 2150*1000*1500 | |
Weight(KG) | 800 | |
Diesel Engine | Model No. | K4100D |
Engine characters | Water cooled,inline,direct injection,4-stroke | |
Rated output(KW/KVA) | 30.1/37.625 | |
Standby output(KW/KVA) | 33.11/41.39 | |
Cylinder NO. | 4 | |
Aspiration | Natural aspiration | |
Bore(mm)*Stroke(mm) | 100*115 | |
Compression ratio | 19:01 | |
Displacement(L) | 3.61 | |
Start type | DC 12V Electric start | |
Rate speed(rpm) | 1500 | |
Rated fuel consumption(L/h) | ≤258.4g/kw.h | |
Alternator | Model No. | STC-30 |
Continuous output(KW/KVA) | 30/37.5 | |
Voltage control | AVR | |
Excitation type | Brush/Brushless | |
Insulation class | H | |
Brand | Stanford/Stanford copy | |
Voltage(V) | 230/400 | |
Current (A) | 54 | |
Frequency(HZ) | 50 | |
Power factor | 0.8 | |
Phase | 3-phases,4-wires | |
Export Standard Plywood case
Manager: Alex Zhang
Mobile: 0086-15169542396
Whatsapp: 0086-15169542396
Viber: 0086-15169542396
Skype: alex_enginegenset
1. Weifang Huatian Diesel Engine Co., Ltd is specialized in diesel engines,gas engines, diesel generators, gas generators, diesel water pump sets and Weichai spare parts.
2. HUATIAN Brand Diesel Engines cover power from 20hp-400hp,,with 2 cylinders,4 cylinders and 6 cylinders.
3. Generator sets are chosed Cummins, Perkins, Deutz, Steyr,Ricardo diesel engines, matching with Stamford, Marathon, Leroy Somer brand alternators, from 10kva to 1000kva.
4. Weichai diesel engines and generators spare parts are all genius. All accessories have been in stock for 1 to 2 days goods deliveried.
