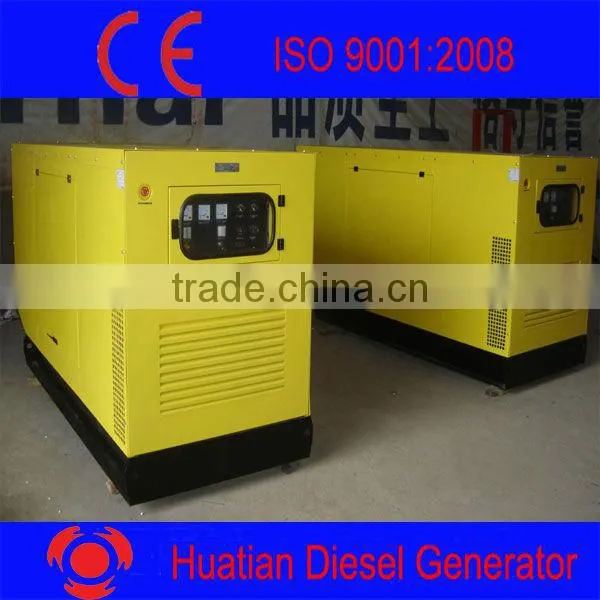

Weifang 350kva/280kw Ricardo Mobile Soundproof Genset

Weifang 350kva/280kw Ricardo Mobile Soundproof Genset thumbnail-1
Weifang 350kva/280kw Ricardo Mobile Soundproof Genset photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Weichai Huatian
Model Number:
350kva
Contact Supplier Request Quote Chat Now
Weifang Huatian Diesel Engine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Weichai Huatian
Model Number 350kva
Output Type AC Three Phase
Speed 1500rpm
Frequency 50Hz
Rated Power 350KVA
Rated Voltage 380/220V
Rated Current 531.8A

Weifang 350kva Ricardo Mobile Soundproof Genset



-------------------Diesel Generator Main Specification----------------

1. Specification of genset
Gensets model 280GF
Prime power 350KVA
Standby power 385KVA
Rated Voltage 380/220V
Rated frequency(HZ) 50
Rated Speed 1500rpm
Power Factor 0.8(lagging)
Dimensions(mm) (L×W×H) 4100x2300x2700
Genset Weight(kg) 5200
2. Specification of diesel engine
Engine brand Ricardo
Engine model NTA855-G2A
Number of Cylinders 6
Cylinder arrangement Vertical in-line
Cycle Four stroke
Aspiration Turbocharged, Water/Air cooling
Fuel System PT type fuel pump, EFC
Bore×Stroke (mm×mm) 140 x 152
Displacement (Liter) 14
Compression Ratio 14.0:1
Speed Governor Electronic
Cooling System Forced Water Cooling Cycle
Total lubrication system capacity (L) 38.6
Fuel Consumption at 100% Load (g/kwh) 192.6
Starting Method DC24V electrical starting
3. Specification of alternator
Alternator brand Chinese Stamford
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP21
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100%Copper winding wire
Insulation Class H
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
4. Specification of AMF control Panel
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
The features of controller:
A new generation Automatic control module for single Genset, which adopts bran-new
outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory.

------------------------Customers Service Center-------------------------



-------------------------------Features & Benefits---------------------------

-------------------------Soundproof & Packaging-------------------------

----------------------------------Control System------------------------------

-----------------------------Certifications Show-----------------------------
