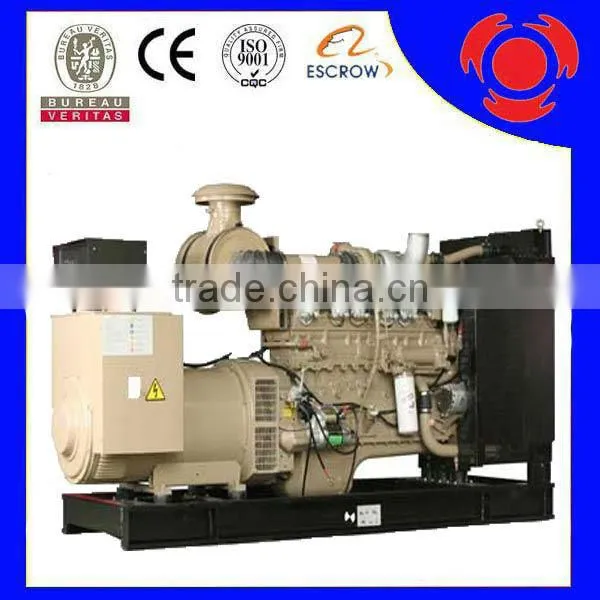

400KW Diesel Generator With KTA19-G3 Engine
US$ 1 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Weichai Huatian
Model Number:
HT400GF
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
500KW WEIFANG Diesel Generator With KTAA19-G6 EngineNegotiableMOQ: 1 Set -
20KW-1200KW CE Certified WEIFANG Diesel Generator PowerNegotiableMOQ: 1 Set
-
350KW WEIFANG Diesel Generator With NTAA855-G7A EngineNegotiableMOQ: 1 Set
-
Best Quality CE Approved Factory Price Power Generators Diesel GeneratorsUS$ 1,000 - 10,000MOQ: 1 Set
-
Good Quality 3 Phase Ricardo Generator / Power GeneratorUS$ 1,000 - 10,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Weichai Huatian
Model Number
HT400GF
Output Type
AC Three Phase
Speed
1500rpm
Frequency
50Hz
Rated Power
400kw
Rated Voltage
220/400V
Rated Current
720A
400KW WEIFANG Diesel Generator With KTA19-G3 Engine
Product Description
| Technical Specifications | ||
|---|---|---|
| Diesel Generator Set | Model No. | HT400GF |
| Rated Output(KW/KVA) | 400/500 | |
| Standby output(KW/KVA) | 440/550 | |
| Size(MM) | 3400*1500*1780 | |
| Weight(KG) | 3300 | |
| Diesel Engine | Model No. | KTA19-G3 |
| Engine Characters | Direct-injection, water-cooling, four stroke,inline | |
| Rated Output(KW/KVA) | 440/550 | |
| Standby Output(KW/KVA) | 484/605 | |
| Cylinder NO. | 6 | |
| Aspiration | Turbocharged | |
| Bore(MM)*Stroke(MM) | 159/159 | |
| Compression Ratio | 13.9:1 | |
| Displacement(L) | 18.9 | |
| Start Type | DC 24V electric start | |
| Rated Speed(RPM) | 1500 | |
| Rated Fuel Consumption(G/KW.H) | ≤205 | |
| Alternator | Model No. | TZH-400 |
| Continuous Output(KW/KVA) | 400/500 | |
| Voltage Control | AVR | |
| Excitation Type | Bruss/Brussless | |
| Insulation Class | H | |
| Brand | Stanford/Stanford copy | |
| Voltage(V) | 230/400 | |
| Current(A) | 720 | |
| Frequency(HZ) | 50HZ | |
| Power Factor | 0.8 | |
| Phase | 3 phases, 4 wires | |
Packaging & Shipping
Export Standard Plywood case
Our Services
Manager: Alex Zhang
Mobile: 0086-15169542396
Whatsapp: 0086-15169542396
Viber: 0086-15169542396
Skype: alex_enginegenset
Company Information
1. Weifang Huatian Diesel Engine Co., Ltd is specialized in diesel engines,gas engines, diesel generators, gas generators, diesel water pump sets and Weichai spare parts.
2. HUATIAN Brand Diesel Engines cover power from 20hp-400hp,,with 2 cylinders,4 cylinders and 6 cylinders.
3. Generator sets are chosed Perkins, Deutz, Steyr,Ricardo diesel engines, matching with Stamford, Marathon, Leroy Somer brand alternators, from 10kva to 1000kva.
4. Weichai diesel engines and generators spare parts are all genius. All accessories have been in stock for 1 to 2 days goods deliveried.
