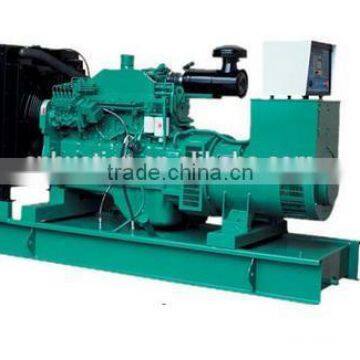

24kw Four-Cylinder Water-Cooled Diesel Generator Set

24kw Four-Cylinder Water-Cooled Diesel Generator Set thumbnail-1
24kw Four-Cylinder Water-Cooled Diesel Generator Set photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Huatian
Model Number:
24GFT
Contact Supplier Request Quote Chat Now
Weifang Huatian Diesel Engine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Huatian
Model Number 24GFT
Output Type AC Three Phase
Speed 1500rpm
Frequency 50/60hz
Rated Power 24KW
Rated Voltage 400/230V
Rated Current 43.2A



Product Description



Genset Engine modle Rated  Power Cylinder No. Rated Speed Open Type Dimmension Open Type Dimmension Silent Type Dimmension Silent Type Gross Weight
 Model   kw hp   rpm LXW*H(mm) kg L*W*H(mm) kg
8GF 295D 13.5 18.4 2 1500 1650*700*1100 500 2100*1120*1650 1060
10GF 295D 13.5 18.4 2 1500 1650*700*1100 550 2100*1120*1650 1060
12GF 2100D 15 20.4 2 1500 1650*700*1100 600 2100*1120*1650 1060
15GF 495D 26.5 36.1 4 1500 1850*750*1330 780 2450*1150*1700 1330
20GF 495D 26.5 36.1 4 1500 1850*750*1330 800 2450*1150*1700 1330
24GF K4100D 30.1 41 4 1500 1850*750*1330 800 2450*1150*1700 1330
30GF 495ZD 36 49 4 1500 1900*750*1450 900 2450*1150*1700 1350
40GF K4102ZD 44 59.9 4 1500 1900*750*1450 900 2450*1150*1700 1350
50GF R4105ZD 56 76.2 4 1500 2000*750*1430 950 2800*1150*1700 1710
75GF R6105ZD 84 114.3 6 1500 2500*780*1600 1150 3300*1280*2000 2330
80GF R6105AZD 90 122.4 6 1500 2500*780*1600 1200 3500*1280*2000 2460
90GF R6105ZLD 100 136.1 6 1500 2500*780*1600 1200 3500*1280*2000 2460
100GF R6105AZLD 110 149.7 6 1500 2500*780*1600 1200 3500*1280*2000 2460
130GF R6105IZLD 132 179.6 6 1500 2500*780*1600 1250 3500*1280*2000 2770
150GF R6113ZLD 155 210.9 6 1500 2700*780*1600 1700 3900*1400*2100 3100
200GF R6126ZLD 230 312.9 6 1500 3000*980*1700 1700 4200*1400*2100 3100
300GF HT618D 330 449 6 1500 3000*980*1700 3100 4200*1400*2100 3100
320GF WD145TAD35  353 480 6 1500 3200*1240*1750 3100 5000*1700*2100 5500
350GR WD269TAD38 382 520 6 1500 3200*1240*1750 3100 5000*1700*2100 5500
400GF WD269TAD43 432 588 6 1500 3200*1240*1750 3100 5000*1700*2100 5500
500GF WD287TAD58 588 800 6 1500 3200*1240*1750 3100 5000*1700*2100 5500



   Rated Power Standby Power
Genset Model kw kva kw kva Rated Current Rated Frequency Rated Frequency Connection type  Fuel Consumption PowerFactor Alternator
8GF 8 10 8.8 11 14.4 400 50 3-phrase,4-wire 248 0.8 Brushless
10GF 10 12.5 11 13.75 18 400 50 3-phrase,4-wire 248 0.8 Brushless
12GF 12 15 13.2 16.5 21.6 400 50 3-phrase,4-wire 248 0.8 Brushless
15GF 15 18.75 16.5 20.625 27 400 50 3-phrase,4-wire 248 0.8 Brushless
20GF 20 25 22 27.5 36 400 50 3-phrase,4-wire 238 0.8 Brushless
24GF 24 30 26.4 33 43.2 400 50 3-phrase,4-wire 238 0.8 Brushless
30GF 30 37.5 33 41.25 54 400 50 3-phrase,4-wire 238 0.8 Brushless
40GF 40 50 44 55 72 400 50 3-phrase,4-wire 238 0.8 Brushless
50GF 50 62.5 55 68.75 90 400 50 3-phrase,4-wire 230 0.8 Brushless
75GF 75 93.75 82.5 103.125 135 400 50 3-phrase,4-wire 230 0.8 Brushless
80GF 80 100 88 110 144 400 50 3-phrase,4-wire 230 0.8 Brushless
90GF 90 112.5 99 123.75 162 400 50 3-phrase,4-wire 230 0.8 Brushless
100GF 120 150 132 165 216 400 50 3-phrase,4-wire 230 0.8 Brushless
130GF 150 187.5 165 206.25 270 400 50 3-phrase,4-wire 230 0.8 Brushless
150GF 200 250 220 275 360 400 50 3-phrase,4-wire 224 0.8 Brushless
200GF 300 375 330 412.5 540 400 50 3-phrase,4-wire 218 0.8 Brushless
300GF 300 375 330 412.5 540 400 50 3-phrase,4-wire 218 0.8 Brushless
320GF 320 400 352 440 576 400 50 3-phrase,4-wire 218 0.8 Brushless
350GR 350 437.5 385 481.25 630 400 50 3-phrase,4-wire 218 0.8 Brushless
400GF 400 500 440 550 720 400 50 3-phrase,4-wire 218 0.8 Brushless
500GF 500 625 550 687.5 900 400 50 3-phrase,4-wire 218 0.8 Brushless





Alternator

Excitation mode: Stamford, Leroy Somer or TFW brushless

Rated output: 20, 40, 50, 64, 75, 80,90,100, 110,120, 150, 180, 200, 250, 280, 300, 360, 400, 440, 500, 600, 800 and 1,000kW

Rated voltage: 230 and 400V

Rated frequency: 50 or 60Hz

Power factor: 0.8

Phase: three-phase and four-wire

Connection: Y type

Rated speed: 1,500 and 1,800rpm

Excitation: harmonic, phase compound and brushless

Voltage regulation: automatic

1.5% voltage regulation (maximum) in static conditions



OUR ADVANTAGE

1. Professional diesel engine manufacturer, not simply assembler or trader

2. Decades’ years of manufacturing and exporting experience

3. Adopt International quality standards, to meet high quality requirement

4. Good reputation for Reliable quality & Reasonable price

5. Strong technical support

6. Advanced production line with skilled workers



Warehouse







Company Information





Weifang Huatian diesel engine can be widely used as the main power for generator set, fixed power, engineering machinery, agricultural machines and water pump set. All series engines are developed on the basis of original model by optimizing its fuel system, air intake and exhaust system, cooling system and transmitting system, to achieve high performance reliability and economical efficiency. The engines mainly have following features: lower oil consumption, higher reliability, bigger torque, easy starting & maintenance, and better adaptability.
