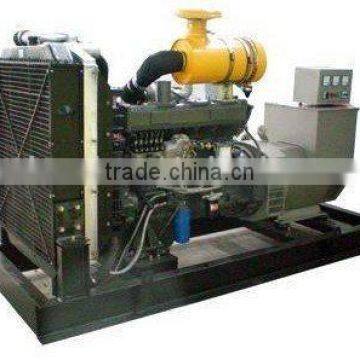

Help CenterR6113ZLD Diesel Engine With Stamford Alternator Output Power 150kw
Related Products
-
150GF Diesel Generator With Stamford AlternatorNegotiableMOQ: 1 Set -
GF Series Diesel Generator Output Power 50kwNegotiableMOQ: 1 Set
-
Chinese 4-Stroke Water Cooled Diesel Generator 150KW With Competitive PriceNegotiableMOQ: 1 Set
-
Chinese Open Type Generator With Power Output From 8kw to 500kwNegotiableMOQ: 1 Set
-
25KVA Generator Set With Brushless Alternator CE CertificateNegotiableMOQ: 1 Set
| Power Data | |||||||
| Voltage | Prime Power | Standby Power | Standby/Prime | P.F | Phase No. | ||
| kva | kw | kva | kw | Amps | |||
| 400/230 | 175 | 140 | 192.5 | 154 | 277.2/252 | 0.8 | 3 |
| Engine Data | |||||||
| Manufacturer | Ricardo | Displacement : | 7.52L | ||||
| Original | China | Bore and Stroke | 113*125mm | ||||
| Model | R6113ZLD | Compression Ratio: | 16:01 | ||||
| Air Intake system | Turbocharged,,Water Cooling | Rated Speed | 1500rpm | ||||
| Fuel System | A type fuel Pump | Overload Power | 170.5kw | ||||
| Cylinder Arrangement | 6 IN LINE | Governor Type: | Mechanical | ||||
| Alternator Data | |||||||
| Manufacture /Type | SWT-140 | Exciter Type: | Brushless, self-exciting | ||||
| Number of Phase: | Three | Insulation Class, Temperature Rise | H/H | ||||
| Connecting Type | 3 Phase and 4 wire Rotating Field | Telephone Influence Factor (TIF) | <50 | ||||
| Number of Bearing | one | THF | <2% | ||||
| Power Factor | 0.8 | Voltage Regulation, Steady State | ≤1.5% | ||||
| Protection Grade | IP23 | Alternator Capacity | 175KVA | ||||
| Altitude: | ≤1000m | Alternator Efficiencies | 91% | ||||
Features of genset
1. Timely Warranty Service, Warranty: One year or 1000 Working Hours from the shipment date, whichever comes first.
2. Short delivery time.
3. With ISO9001&CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with all kinds of brand engine & alternator.
6. Perfect after-service network
7. Both 50Hz and 60Hz
8. Strict test including 50% load,75% load,100% load and 110% load
Our company strictly implements quality management in company with ISO9001 Quality Management system takes the operation tenet of “customer satisfaction being our standards” and now we hereby make the commitment as followings,
1,All ex-factory generator and engines of our factory accord with Ministry Standard Industry Frequency Diesel Engine Generator Unit Technical Condition, Domestic Standard GB/T2820-1997 Reciprocating Internal Combustion Driving Current Generator Unit and relevant requirements of international Standard ISO8528,CE,etc.
2, Weifang Huatian diesel engine CO., LTD, with strong strength, powerful technology and first-class research ream ,we choose spare parts one by one, assemble and test carefully to guarantee the top quality.
3, So far ,we already set up more than 20 sole agencies and dealer in the whole world ,such as Australia, Europe, Southeast Asia, East-Asia, Mid-east, America and Africa. Supply the fast and efficient after sales service.
